ASTM 633 12m Hot Dip Galvanized Metal Light  Pole For Power Transmission

ASTM 633 12m Hot Dip Galvanized Metal Light Pole For Power Transmission

  • High Light

    12m galvanized metal pole

    ,

    12m galvanised light pole

    ,

    ASTM 633 hot dip galvanized pole

  • Thickness
    7 To 137mm
  • Material
    ASTM 633, GR65 Hot Roll
  • Shape
    Tubular 12side
  • Surface Treatment
    Hot Dip Galvanized
  • Usefull
    Transmission Line 138kv
  • Place of Origin
    CHINA
  • Brand Name
    Futao
  • Certification
    ISO10046
  • Model Number
    132kv ,138kv
  • Minimum Order Quantity
    2 pieces
  • Price
    $588 - $12800
  • Packaging Details
    Wrap by mat or straw mat
  • Delivery Time
    53 workdays
  • Payment Terms
    L/C, T/T
  • Supply Ability
    10pcs/day

ASTM 633 12m Hot Dip Galvanized Metal Light Pole For Power Transmission

10m 12m Galvanized Steel Pole For Electric Power Line



Product Description


The products above are steel utility poles made specifically for230kv Transmission Monopole tower , Metal Power pole , gray, 110ft, ASTM A 123 , grounding wire



The present Paper shows possible line pre-design for the project, but any final design of the line for the project shall be carried on by specialized line designer and shall be fully and formally approved by GRIDCo. These specifications are supplementary to the transmission line specifications provided and should be read in conjunction with them.

  • Scope

The project involves the construction of two double circuit transmission lines (approximately 7km and 5km respectively on self-supporting double circuit (DC) monopole transmission line towers using 1 x 604mm2 AAC HAWTHORN conductors with the monopole towers fitted with two optic fibre ground wire (OPGW) shieldwires.



Bidders are encouraged to submit alternate specifications/drawings for self-supporting double circuit monopoles and shall price them accordingly for evaluation as alternates.



C) Specification of steel monopoles:



1. Design conditions:

Loading trees showing, for each load case, vertical, transversal and longitudinal loads applied to monopole shall be shall be as described in the technical specifications.

Material partial safety factor γM are applied for calculation of cross-sections on yield stress of steel according to EN50341-1.

Poles analysis shall include second order (or P - Λ ) analysis and checking of local buckling according to ASCE report N° 72. Calculation Note shall be issued and submitted to GRIDCo for approval.

Poles are calculated with a limitation of deflection equal to 8 % of height under factored loads (cf EN 50341 §7.4.5.1.3).

2. Materials:

All materials shall be new and in accordance with relevant standards referred to within this specification.



To design in accordance with PLS software, we will require the following design parameters:


Product Specifications




  • Products are designed and manufactured according to ANSI/TIA-222-G structural standards
  • Pole shaft material : ASTM GR65,GR50,Q460 A572,S355,Q345/Q235,etc
  • We possess the ISO 10046 certification and are committed to giving our customers the best products and service
  • We provide additional assistance if required including supervision and supplementary components

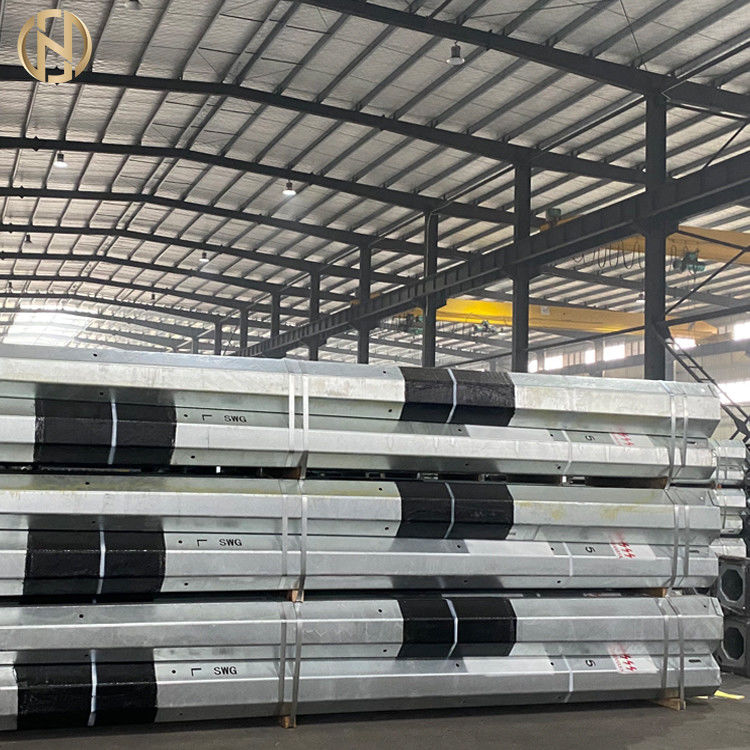

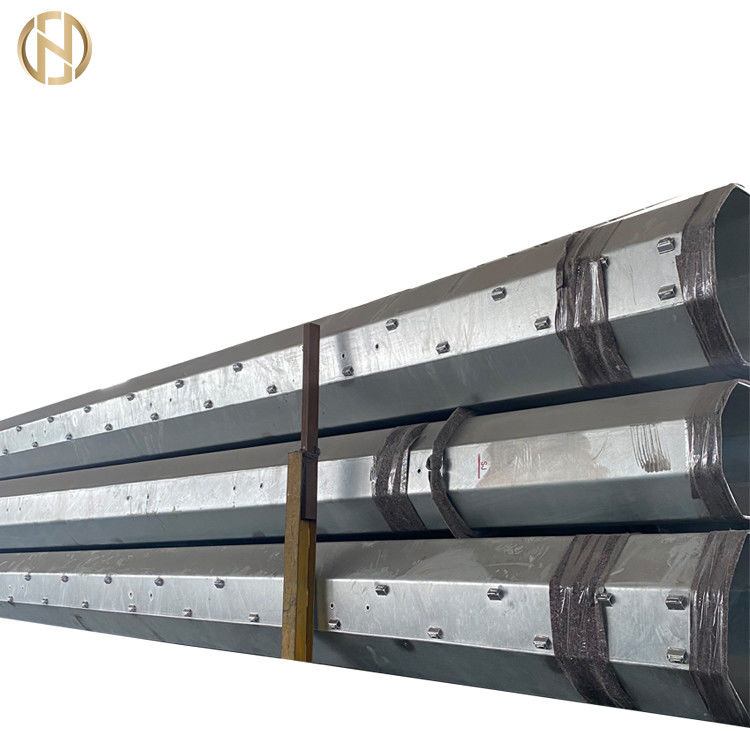

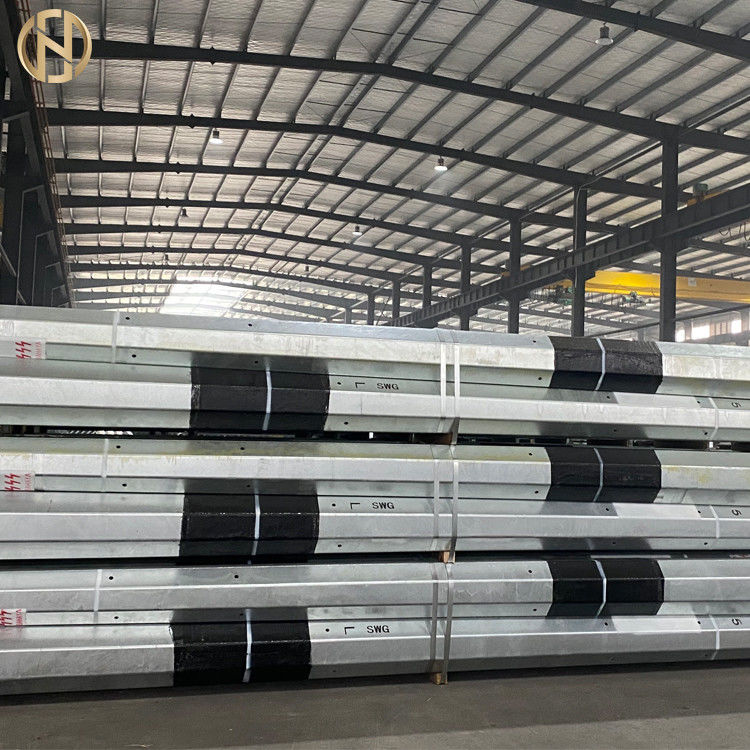

We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.



Process of Production


Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration→ Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging

ASTM 633 12m Hot Dip Galvanized Metal Light  Pole For Power Transmission 0

Our Service


1. We will reply all your enquiries in 24 working hours.

2. Experienced staff members will answer all your questions in fluent English.

3. Customized designs are available. UEM & UBM are welcome.

4. Exclusive and unique solutions can be provided to our customers by our well-trained and professional engineers and staff.

5. Special discount and protection of sales are provided to our distributors.

6. State of the Art Factory with highly specialized machinery focused on producing various types of steel poles with over 20 years of experience and expertise to deliver you quality products that you can trust at competitive prices.



FAQ



Q5. Tell me about your company?
A : We have been a manufacturer and exporter of all kinds of steel poles including power poles, street lighting poles, telecommunications poles and other steel based products since 2000. Our products have been exported to many regions around the world.
Q6. Do you have some special policies for Branded companies?
A: Yes, we have some special support for the company who has own brand but are also in our VIP customers list. Please send us a copy of your sales data so we can analyze the best course of action in supporting you for your products in your market.
Q7. Do you provide Door to Door service? Because i don't know how to deal with customs clearance.
A: Yes. We provide Door to Door service to help you reduce shipping time and costs. This is because we have additional discounts with the shipping companies as we have done many shipments in the past. This in turn will save you lots of time and money.
