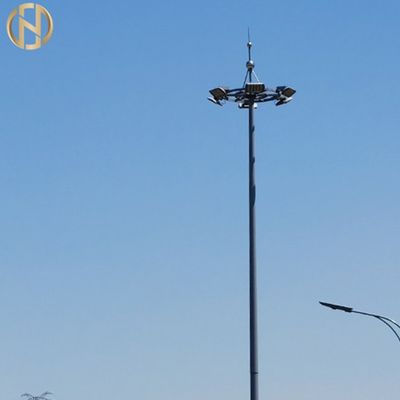

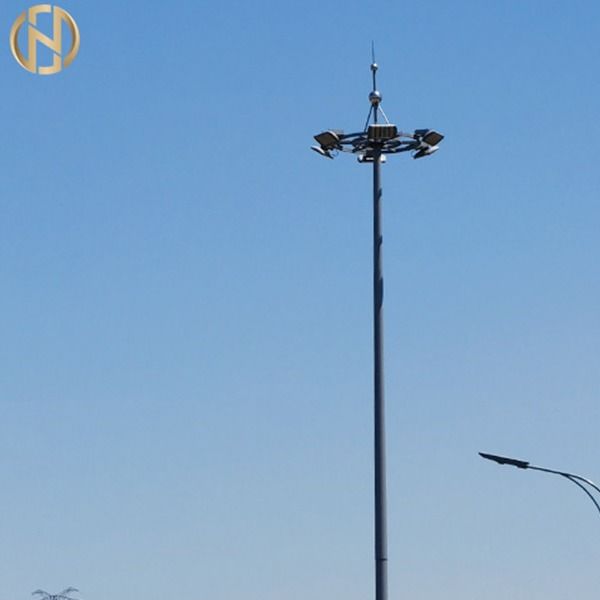

Q345 Polygonal High Mast Pole Hot Dip Galvanized for lED street light

Q345 Polygonal High Mast Pole Hot Dip Galvanized for lED street light

  • High Light

    Q345 high mast pole

    ,

    Polygonal high mast pole

    ,

    Hot Dip Galvanized Lighting Poles

  • Surface Treatment
    Hot Dip Galvanized
  • Name
    Q345 HIgh Quality High Mast Steel Poles
  • Shape
    Round Or Polygonal
  • Height
    3-50m
  • Thickness
    3-10mm
  • Color
    RAL Color Stardand
  • Certification
    ISO9001:2008
  • Place of Origin
    Jiangsu,China
  • Brand Name
    Futao
  • Certification
    Jiangsu,China
  • Model Number
    FT/GG-075
  • Minimum Order Quantity
    1 pieces
  • Packaging Details
    Bubble Wrap, Mat &Straw Bale or as per client’s request
  • Delivery Time
    30days
  • Payment Terms
    L/C, T/T

Q345 Polygonal High Mast Pole Hot Dip Galvanized for lED street light

                                                                      Q345 High quality high mast steel poles

Description of products


High Mast Lighting Poles can generally be divided into either a lifting type or non-lifting type. The height of the lifting type pole is normally more than 18 meters and allows for the raising and lowering of the lighting fixture. This allows for a safer and more convenient process of maintenance. The lighting fixture can be lowered up to 2.5 meters from the ground and the lowering process is controlled via a manual remote control. Our high mast poles are available in a wide variety of configurations and finishes to meet your specific design requirements. This includes the shape and lighting fixtures depending on lighting requirements of the surrounding area.


Product Specifications



l Product Name: Stadium Galvanized High Mast Pole,25M 28M 36M 40M Height

l Light Source: High-Pressure Sodium Lamp and LED floodlight.

l Pole Height: 15 to 40 meters (designed and manufactured according to customer requirements).

l Lighting Type: Circular Light Plate / Irregular Light Plate, Wide-Angled Lights

l Pole Shape: Conical, Polygonal, Round

l Lifting System: Automatic/Manual Lifting System as per client’s requirement

  • Input Voltage(V): AC85-265,DC3.2V/12V/24V
  • Lamp Luminous Flux(lm): Customized
  • CRI (Ra>):75
  • Color Temperature(CCT): Cool White, Pure White, Warm White
  • Working Lifetime (Hours):50000
  • Lamp Body Material: Aluminum
  • IP Rating: IP65
  • Certification: CE
  • Application: Areas that require a large area of lighting (airports, shipping terminals, stadiums, heavy-industry zones)
  • Working Temperature(℃): -40 - 70
  • Light Source: Fluorescent, Halogen Bulbs, Incandescent Bulbs, LED
  • Warranty(Year): 2 years
  • Pole Shaft Thickness: 2.5mm-14mm
  • Surface Treatment: Hot Dip Galvanization, Electrostatic Spray
  • Galvanization Thickness: 80-100μm
High Mast Pole Product name 25M High Mast Columns With 400W 800W Led Floodlight For Stadiums
High Mast Pole Material ASTM GR65,GR50,Q460 A572,S355,Q345/Q235
High Mast Pole Design Wind 160KM/H or depending on clients’ request
High Mast Lamp Crown Shape Single Face Illuminated
High Mast Pole’s shape Conical, Polygonal, Round
High Mast Application Areas that require a large area of lighting (airports, shipping terminals, stadiums, heavy-industry zones)
High Mast Height 15-40M composed of two or three sections
Pole Shaft Thickness High mast 2.5mm-14mm
Poles Stiffener Size Accordance with Flange size
Overlap Length Calculation High Mast pole Upper Section of the bottom diameter more than 1.5 times
Surface treatment High Mast Hot Dip Galvanization, Electrostatic Spray
Components Lighting Fixture, Lamps, Pole, Power Cabinet
Power Cabinet Power Cabinet installed at inside door of high mast,or outdoor in separately.
High Mast Lamp Fixture Design According to lighting requirements of the surrounding area
High Mast Lamp Fixture LED,HID,HPS Etc
Galvanization Thickness 80-100 microns on average according to BS EN ISO1461 standards



Joint Type(Connection method) Slip joint by upper section insert into lower section
Flange connection to flange(outer flange/inner flange)
Climbing Ladder Inner Climbing Ladder
Outer Climbing Ladder
Minimum yield strength 355 Mpa
Minimum ultimate tensile strength 490 Mpa
Max ultimate tensile strength 620 Mpa
Length of per section Within 14m once forming without slip joint
Welding We has past flaw testing.Internal and external double welding makes the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1
Welds slags removing Burrs or sharp edges shall be removed,all welds shall be cleaned mechanically against slag and spatters before hot dip galvanizing.
The High Mast Mounting Method Direct Burial/With Base Template and Anchor Bolts



Q345 Polygonal High Mast Pole Hot Dip Galvanized for lED street light 0Q345 Polygonal High Mast Pole Hot Dip Galvanized for lED street light 1Q345 Polygonal High Mast Pole Hot Dip Galvanized for lED street light 2

Process of Production



Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding →
Hole Drilling → Calibration → Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging

Q345 Polygonal High Mast Pole Hot Dip Galvanized for lED street light 3

Product Details Testing

Q345 Polygonal High Mast Pole Hot Dip Galvanized for lED street light 4

Packaging & Shipping


We pack the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may
occur during transportation.
Packaging can also be done according to clients’ requirements.
We can ship the poles by sea or air or express or trains and we have our regular shipping agent.

Export Market


Asia-Pacific, Central & South America,North America, Europe, Middle East, Africa
FAQ


Trade terms:
1. Price Term: EXW,FOB,CFR,CIF,FCA or others.
The price includes pole shaft, base plate, cross arm and anchor part.
2. MOQ: 1 sets.
3. Payment: 30%T/T in advance,70%T/T or L/C at sight before shipment. Other payment way can be negotiated.
4. Package: Plastic woven bag or old blanket or according to clients requirement.
5. Delivery time: within 30-60 workdays after receiving deposit.
