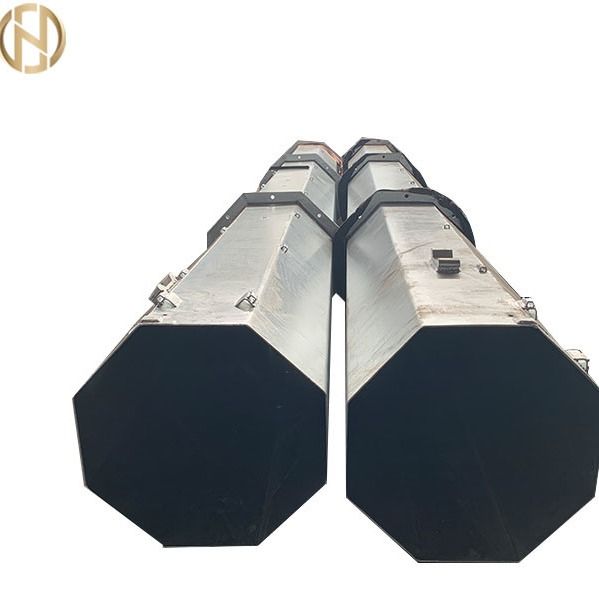

Galvanized Monopole Steel Metal Power Pole wind resistant

Galvanized Monopole Steel Metal Power Pole wind resistant

  • High Light

    Monopole Metal Power Pole

    ,

    Galvanized Metal Power Pole

    ,

    Monopole steel power pole

  • Surface Treatment
    Hot Dip Galvanized
  • Material
    Hot Roll Steel Q345B, GR65
  • Height
    9M
  • Thickness
    2-3.5mm
  • Powder Coated
    White, Blue, Sliver, Grey Or More
  • Wind Resistance
    160 Km/h
  • Shape
    Round Or Polygonal
  • Place of Origin
    CHINA
  • Brand Name
    Futao
  • Certification
    ISO 9001
  • Model Number
    9M-200daN
  • Minimum Order Quantity
    5Pieces
  • Price
    $300 - $1050/ Piece
  • Packaging Details
    40HC or OT, wrap by mat or straw mat
  • Delivery Time
    40 workdays
  • Payment Terms
    L/C, T/T
  • Supply Ability
    2000 pieces every month

Galvanized Monopole Steel Metal Power Pole wind resistant

                                           Hot Sales Manufacturer Galvanized Power Line Monopole



Product Description


The products above are steel utility poles made specifically for 11M tubular pole 450daN 550daN ,hot dip galvanization steel utility pole,low silicon

  • Products are designed and manufactured according to ANSI/TIA-222-G structural standards
  • Only our company can comply to these global manufacturing standards which gives us an edge over our competitors
  • Products are hot dip galvanized according to ISO 1461 Stardand.
  • Pole shaft material : Q355
  • Material code : ASTM 572 GR50
  • We possess the ISO 9001:2015 certification and are committed to giving our customers the best products and service
  • We provide additional assistance if required including supervision and supplementary components
  • We accommodate various designs according to our customers’ specifications

To design in accordance with PLS software, we will require the following design parameters:


Product Specifications


Product Name

11M tubular pole 450daN 550daN ,hot dip galvanization steel utility pole,low silicon

Suitable Uses

11kv Power Distribution

Shape

Octagonal.



Material



Q355B/ A572 gr50, Minimum yield strength >= 355n/mm2

Q235B/A36, Minimum yield strength >= 235n/mm2

Other materials may be used as per request (Q460, ASTM573 GR65, GR50, SS400, SS490, to ST52)

Tolerance of Dimensions

+- 1%

Power

10 -15KV

Safety Factor

2.0

Design Load in Kg

450daN 500daN at 300mm from top

Engraving

Name plate through rivet or glue, engraving, embossment as per customers' requirement

Surface Treatment

Hot Dip Galvanization according to ASTM A123 standards/Powder Coating

Joint of Poles

Insert Mode, Inner Flange Mode, Face to Face Joint Mode

Design of Poles

Against earthquake of 8 grade

Wind Resistance

120 km/h or 32m/s

Minimum Yield Strength

355 mpa or 450mpa

Min to Max Ultimate Tensile Strength

490 mpa - 620 mpa

Standard

ISO 9001

Length per Section

2 Section /1 section

Welding

Internal and external double welding process produces a seamless surface

Welding Standard: AWS (American Welding Society) D 1.1

Thickness

3mm, 3.5mm 4mm by design



Packaging & Shipping




We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.



Process of Production


Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration→ Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging
