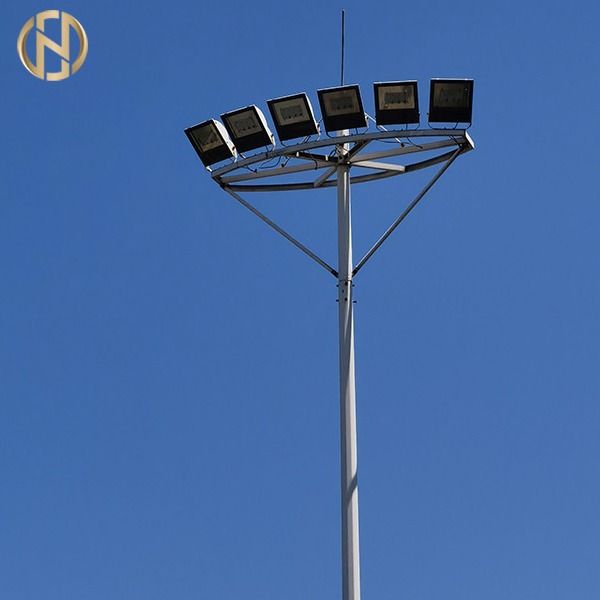

CE GR65 Conical  12 Meter High Mast Pole IP65 For Floodlight

CE GR65 Conical 12 Meter High Mast Pole IP65 For Floodlight

  • High Light

    GR65 12 meter high mast pole


    Conical 12 meter high mast pole


    GR65 high mast lighting pole

  • Material
    Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65,
  • Shape
    Polygonal / Conical / Tubular
  • Surface Treatment
    Hot Dip Galvanized / Powder Coated / Painting
  • Connection Method
    Overlap/Flange Connection
  • Welding
    According To AWS D 1.1, CO2
  • Wall Thickness
  • Each Section Length
    No More Than 14m
  • Height
  • Place of Origin
  • Brand Name
  • Certification
    ISO 9001 2015
  • Model Number
  • Minimum Order Quantity
  • Price
    1000-10000USD Per set
  • Packaging Details
    Bubble Wrap, Mat &Straw Bale or as per client’s request
  • Delivery Time
  • Payment Terms
    L/C, T/T
  • Supply Ability
    3000 ton per month

CE GR65 Conical 12 Meter High Mast Pole IP65 For Floodlight

High quality hot sale 20m 25m 30m high mast lighting pole for stadium
Description of products

High Mast Lighting Poles can generally be divided into either a lifting type or non-lifting type. The height of the lifting type pole is normally more than 18 meters and allows for the raising and lowering of the lighting fixture. This allows for a safer and more convenient process of maintenance. The lighting fixture can be lowered up to 2.5 meters from the ground and the lowering process is controlled via a manual remote control. Our high mast poles are available in a wide variety of configurations and finishes to meet your specific design requirements. This includes the shape and lighting fixtures depending on lighting requirements of the surrounding area.

Product Specifications


l Product Name: 35M 40M Polygonal Shape Floodlight Poles

l Light Source: High Pressure Sodium Lamp and LED flood light.

l Pole Height: 15 to 40 meters (designed and manufactured according to customer requirements).

l Lighting Type: Circular Light Plate / Irregular Light Plate, Wide-Angled Lights

l Pole Shape: Conical, Polygonal, Round

l Lifting System: Automatic/Manual Lifting System as per client’s requirement

  • Input Voltage(V): AC85-265,DC3.2V/12V/24V
  • Lamp Luminous Flux(lm): Customized
  • CRI (Ra>):75
  • Color Temperature(CCT): Cool White, Pure White, Warm White
  • Working Lifetime (Hours):50000
  • Lamp Body Material: Aluminum
  • IP Rating: IP65
  • Certification: CE
  • Application: Areas that require a large area of lighting (airports, shipping terminals, stadiums, heavy-industry zones)
  • Working Temperature(℃): -40 - 70
  • Light Source: Fluorescent, Halogen Bulbs, Incandescent Bulbs, LED
  • Warranty(Year): 2 years
  • Pole Shaft Thickness: 2.5mm-14mm
  • Surface Treatment: Hot Dip Galvanization, Electrostatic Spray
  • Galvanization Thickness: 80-100μm
Product name 35M 40M Polygonal Shape Floodlight Poles
Material ASTM GR65,GR50,Q460 A572,S355,Q345/Q235
Design Wind 160KM/H or depending on clients’ request
Lamp Crown Shape Single Face Illuminated
Pole’s shape Conical, Polygonal, Round
Application Areas that require a large area of lighting (airports, shipping terminals, stadiums, heavy-industry zones)
Height 15-40M composed of two or three sections
Pole Shaft Thickness 2.5mm-14mm
Poles Stiffener Size Accordance with Flange size
Overlap Length Calculation Upper Section of the bottom diameter more than 1.5 times
Surface treatment Hot Dip Galvanization, Electrostatic Spray
Components Lighting Fixture, Lamps, Pole, Power Cabinet
Power Cabinet Power Cabinet installed at inside door of high mast,or outdoor in separately.
Lamp Fixture Design According to lighting requirements of the surrounding area
Lamp Fixture LED,HID,HPS Etc
Galvanization Thickness 80-100 microns on average according to BS EN ISO1461 standards


Joint Type(Connection method) Slip joint by upper section insert into lower section
Flange connection to flange(outer flange/inner flange)
Climbing Ladder Inner Climbing Ladder
Outer Climbing Ladder
Minimum yield strength 355 Mpa
Minimum ultimate tensile strength 490 Mpa
Max ultimate tensile strength 620 Mpa
Length of per section Within 14m once forming without slip joint
Welding We has past flaw testing.Internal and external double welding makes the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1
Welds slags removing Burrs or sharp edges shall be removed,all welds shall be cleaned mechanically against slag and spatters before hot dip galvanizing.
The High Mast Mounting Method Direct Burial/With Base Template and Anchor Bolts

CE GR65 Conical  12 Meter High Mast Pole IP65 For Floodlight 0


Process of Production

Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding →
Hole Drilling → Calibration → Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging
CE GR65 Conical  12 Meter High Mast Pole IP65 For Floodlight 1
Product Details Testing

CE GR65 Conical  12 Meter High Mast Pole IP65 For Floodlight 2
Packaging & Shipping

We pack the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may
occur during transportation.
Packaging can also be done according to clients’ requirements.
We can ship the poles by sea or air or express or trains and we have our regular shipping agent.
Export Market

Asia-Pacific, Central & South America,North America, Europe, Middle East, Africa

Trade terms:
1. Price Term: EXW,FOB,CFR,CIF,FCA or others.
The price includes pole shaft, base plate, cross arm and anchor part.
2. MOQ: 1 sets.
3. Payment: 30%T/T in advance,70%T/T or L/C at sight before shipment. Other payment way can be negotiated.
4. Package: Plastic woven bag or old blanket or according to clients requirement.
5. Delivery time: within 30-60 workdays after receiving deposit.
