Q235B Q345B Hot Dip Galvanized Street Sign Pole

Q235B Q345B Hot Dip Galvanized Street Sign Pole

  • High Light

    ISO9001 Hot Dip Galvanized Street Sign Pole

    ,

    Q345B Street Sign Pole

    ,

    Q235B metal street sign post

  • Surface Treatment
    Hot Dip Galvanized Or Powder Coating
  • Material
    Steel Tube Q235B Or Q345B Or GR50 Or GR65 Or Others
  • Thickness
    3-20mm Or Custom
  • Diameter
    Custom Or Calculated By The Wind Speed
  • Length
    Custom(3-12M) Or Others
  • Package
    Blanket Or Woven Bag
  • OEM
    Yes
  • Origin
    Jiangsu China
  • Certificate
    ISO9001
  • Place of Origin
    Jiangsu China
  • Brand Name
    FUTAO
  • Certification
    ISO 9001
  • Model Number
    RSP-01-1
  • Minimum Order Quantity
    2 sets
  • Price
    USD150~USD800
  • Packaging Details
    blanket or plastic woven bags
  • Delivery Time
    30~40 workdays
  • Payment Terms
    L/C, T/T, Western Union, MoneyGram
  • Supply Ability
    2000pcs / month

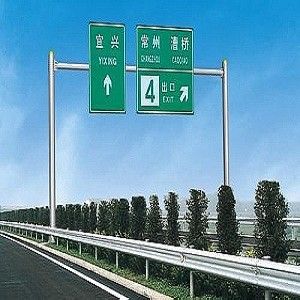

Q235B Q345B Hot Dip Galvanized Street Sign Pole

Q235B Or Q345B Hot Dip Galvanized Steel Street Sign Pole/Steel Pole



Traffic signage is an important aspect of any traffic control system. A dependable and sturdy pole is required to support these traffic signs. At Futao Metal, we produce various types of traffic signal poles including octagonal, cylindrical, and conical shaped poles.



Going one step further, our poles can be designed to have multiple mounting arms if required. All traffic and signal poles shall consist of a single vertical pole, connecting flanges, mounting arms, and anchor bolts. Straight or seamless steel pipes shall be used for the vertical pole and mounting arms. The connection ends of the main pole and the mounting arm shall adopt the same material used by the mounting arms and will be protected by stiffeners. The vertical pole and its base plate will be connected by a flange and anchor bolts. Horizontal mounting arms are connected to the main vertical pole using a flange and further reinforced using stiffeners.



Specifications



Mounting Height 3-20M
Pole Shape Conical, Polygonal, Round
Brackets Single or Double Brackets of various sizes and shapes as per clients’ requirements
Welding Welding conforms to international welding standard of CWB
Base Plate Mounting A square or round Base Plate with slotted holes used in tandem with anchor bolts
Ground Mounting The bottom part of the pole shall be buried underground at site. Depth of burial as per clients’ requirements
Galvanization Hot Dip Galvanization with and average thickness of 80-100µm
Powder Coating Pure Polyester Powder Painting, coloring optional
Maximum Wind Resistance 160Km/h



Process of Production


Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration → Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging

Q235B Q345B Hot Dip Galvanized Street Sign Pole 0
Product Details




Q235B Q345B Hot Dip Galvanized Street Sign Pole 1


Testing


Q235B Q345B Hot Dip Galvanized Street Sign Pole 2
Packaging & Shipping


We pack the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation.

Packaging can also be done according to clients’ requirements.

We can ship the poles by sea or air or express or trains and we have our regular shipping agent.

FAQ


Trade terms:

1. Price Term: EXW,FOB,CFR,CIF,FCA or others.

The price includes pole shaft, base plate, cross arm and anchor part.
2. Payment: 30%T/T in advance,70%T/T or L/C at sight before shipment. Other payment way can be negotiated.
3. Package: Plastic woven bag or old blanket or according to clients requirement.
4. Delivery time: within 30-60 workdays after receiving deposit.



Our Service

1. We will reply all your enquiries in 12 working hours.
2. Experienced staff members will answer all your questions in fluent English.
3. We have experienced and professional design team.
4. Exclusive and unique solutions can be provided to our customers by our well-trained and professional engineers and staff.
5. Special discount or comission and protection of sales are provided to our distributors.
6. State of the Art Factory with highly specialized machinery focused on producing various types of steel poles with over 20 years of experience and expertise to deliver you quality products that you can trust at competitive prices.
7. We have our own inspection team to control the quality.

Welcome to our factory!
