Powder Coated Q235B Q345B Steel Street Sign Pole

Powder Coated Q235B Q345B Steel Street Sign Pole

  • High Light

    Q345B Steel Street Sign Pole

    ,

    Q235B Steel Street Sign Pole

    ,

    OEM Powder Coated road sign pole

  • Thickness
    3mm Or 4mm Or More
  • Material
    Steel Q235,Q355,Q345 Or GR65
  • Height
    Custom According To Client's Request
  • Surface Treatment
    Hot Dip Galvanized And Powder Coating
  • Sections
    One Whole Section Or More
  • Package
    Blanket Or Plastic Woven Bag Or Plastic Bubble
  • Color
    Custom RAL Color Number
  • MOQ
    10 Sets
  • Logo
    Custom
  • Base Plate
    With Or Without
  • Place of Origin
    Jiangsu China
  • Brand Name
    FUTAO
  • Certification
    ISO 9001
  • Model Number
    RSP-017-1
  • Minimum Order Quantity
    2 sets
  • Price
    USD150~USD800
  • Packaging Details
    blanket or plastic woven bags
  • Delivery Time
    30~40 workdays
  • Payment Terms
    L/C, T/T, Western Union, MoneyGram
  • Supply Ability
    2000pcs / month

Powder Coated Q235B Q345B Steel Street Sign Pole

Q235B Or Q345B Hot Dip Galvanized And Powder Coating Steel Street Sign Pole



Traffic signal bar is an important part of traffic signal and an important part of the frame of traffic signal.Signal lamp poles are divided into octagonal signal lamp poles, cylindrical signal lamp poles and cone signal lamp poles according to the structure.According to the structure can be divided into single cantilever signal lamp pole, double cantilever signal lamp pole, frame signal lamp pole, integrated signal lamp pole. Monitoring pole, monitoring pole, monitoring support, camera support, camera pole, camera pole, traffic signal pole, traffic sign pole, traffic indicator pole.

Basic structure: road traffic signal poles and sign poles shall be composed of vertical poles, connection flanges, modeling arms, mounting flanges and embedded steel structures.



Specifications



Material Steel(Q235B,Q275 or Q345 or Gr65 or others)
Length Custom
Pole Shape Conical, Polygonal, Round or Octagonal or others
Brackets according to the request from client
Welding Welding conforms to international welding standard of CWB
Base Plate Mounting provided with anchor bolts.
Section one section or more
Galvanization Hot Dip Galvanization with and average thickness of 85µm
Powder Coating Pure Polyester Powder Painting, coloring optional,RAL color number
Maximum Wind Resistance 160Km/h



Process of Production


Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration → Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging


Product Details

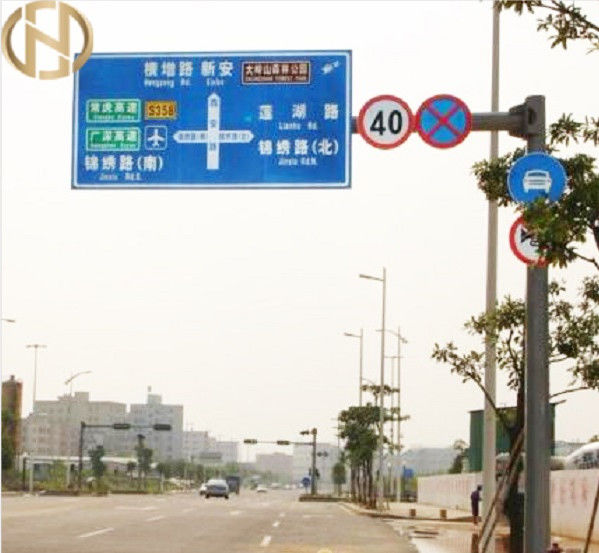

Powder Coated Q235B Q345B Steel Street Sign Pole 0


Testing

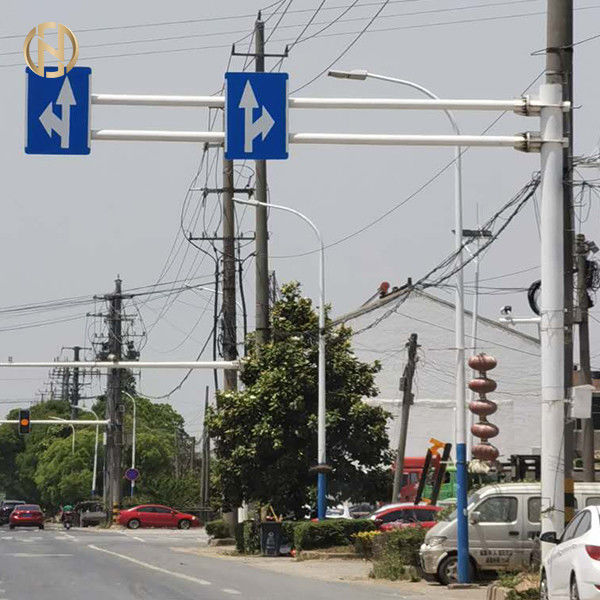

Powder Coated Q235B Q345B Steel Street Sign Pole 1
Packaging & Shipping


We pack the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation.

Packaging can also be done according to clients’ requirements.

We can ship the poles by sea or air or express or trains and we have our regular shipping agent.


Powder Coated Q235B Q345B Steel Street Sign Pole 2
