DESIGN AND CONSTRUCTION Each of the several parts of the Plant shall be of such construction and design as to give long continuous service with high economy and low maintenance costs. All workmanship shall be of the highest quality throughout. The design, dimensions and materials of all parts shall be such that the stresses to which they are subjected under the most severe conditions encountered in service shall not render them liable to distortion or damage. Welding, filling or plugging of defective pares will not be permitted without the approval, in writing, of DES. All equipment shall operate without undue vibration and with the least possible amount of noise so as not to be a nuisance to the environment. All apparatus shall be designed to ensure satisfactory operation under the atmospheric conditions prevailing in the area where the lines are to be built and under such variations of load and voltage as may occur under normal systems working conditions. The design of all line supports, conductors, spacers, Insulators and fittings shall be such as to minimise the risk of damage to any part of the lines due to deterioration, or damage in service. The design shall incorporate any reasonable precaution and provision for the safety of those concerned in maintenance of the Contract Works and all associated works supplied and executed under other Contracts. All corresponding parts shall be made to gauge, and shall be inter-changeable wherever possible throughout the Contract works such as to facilitate the fitting of replacement parts.
Product Details

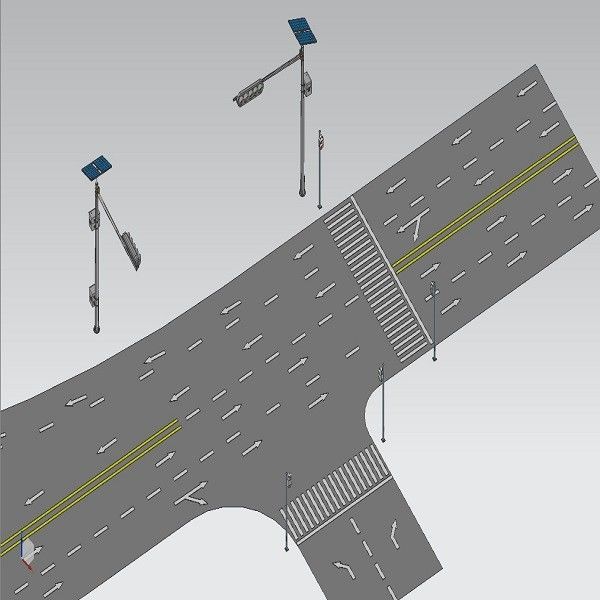

T Type Traffic Pole Product name | Octagonal Shape 6M With 6M Cantilever“T”Type Traffic Light Pole |
T Type Traffic Pole Material | ASTM GR65,GR50,Q460 A572,S355,Q345/Q235 |
T Type Traffic Pole Design Wind | 30M/S or depending on clients’ request |
T Type Traffic Pole Deflection | Accordance with the pole strength as Clients request. |
Pole’s shape | Traffic Light Pole Conical, Polygonal, Round |
Traffic Pole Type | “T” Type,”L”Type,”I” Type |
T Type Traffic Pole Main Shaft Height | Normally, the Traffic Poles used to Cross Road. |
T Type Traffic Pole Cantilever Length | Depending on width of Road in Clients Country. |
Application | Main Street,High Way Zones |
T Type Traffic Pole Height | 1-16M composed of two or three sections |
T Type Traffic Pole Shaft Thickness | 2.5mm-20mm |
Poles Stiffener Size | Traffic Light Pole Accordance with Flange size to decide |
Overlap Length Calculation | Upper Section of the bottom diameter more than 1.5 times |
Surface treatment | Hot Dip Galvanization, Electrostatic Spray |
T Type Traffic Pole Components | Signal Lights(Red/Green/Yellow Color),Camera etc. |
Power Cabinet | Power Cabinet installed at outdoor to control the Signal Lights Colors Exchanged. |
Power Cable Length Using | Power Cable Length using depending on the Poles height and Signal Lights/Camera Wattage/Quantity. |
Galvanization Thickness | 80-100 microns on average according to BS EN ISO1461 standards |
Galvanization Suitable Wall Thickness | Traffic Light Pole At least ≥2.5mm Wall Thickness, |
How long Dipped into Zinc pool for the poles | The time Dipped into Zinc pool depending on the poles Wall Thickness and the Galvanized thickness Execution Standard |
Process of Production
Testing
Packaging & Shipping
