P & PS Type Parallel Clevises hot dip galvanized steel Plate Ploe accessories

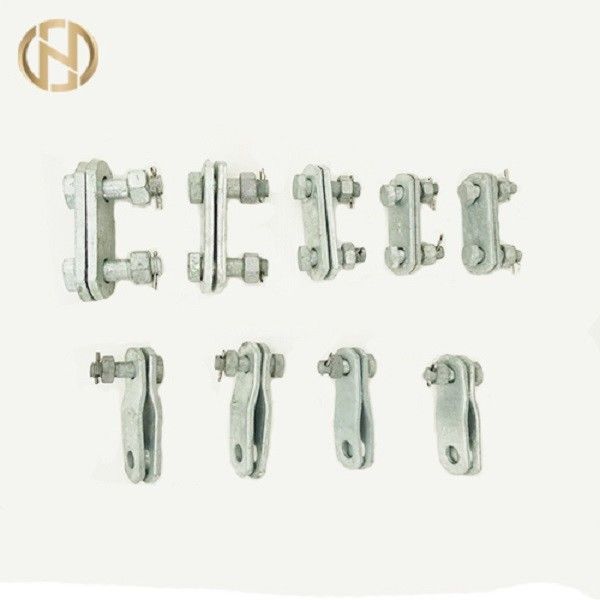

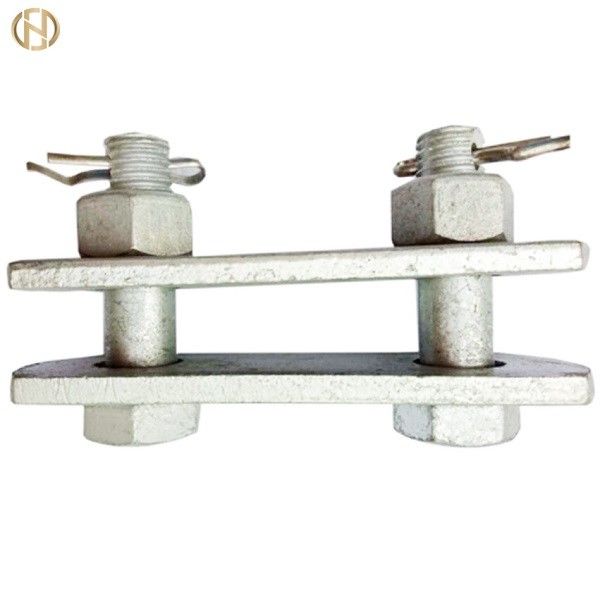

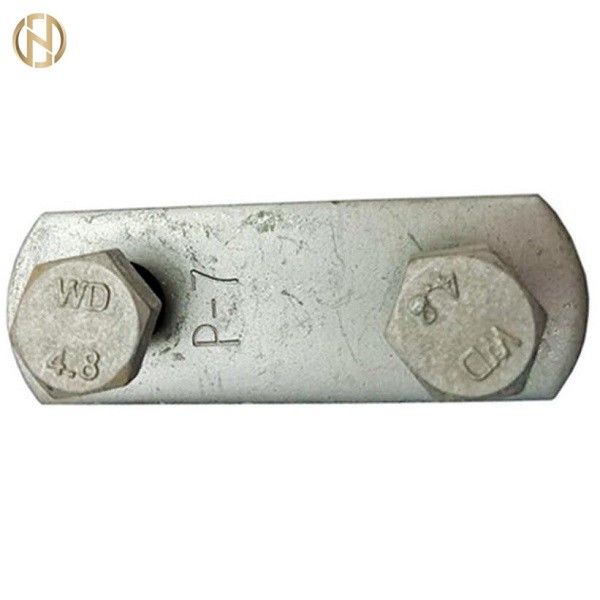

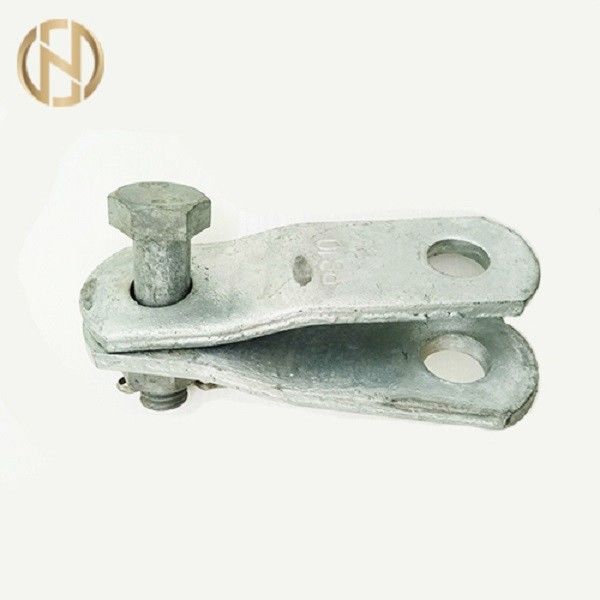

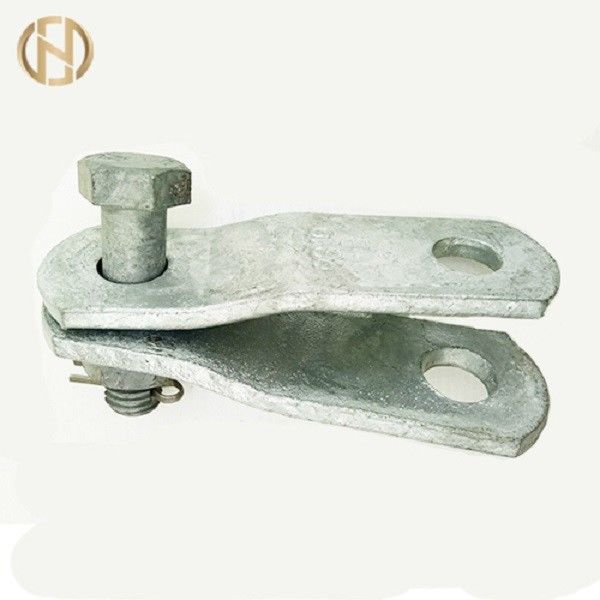

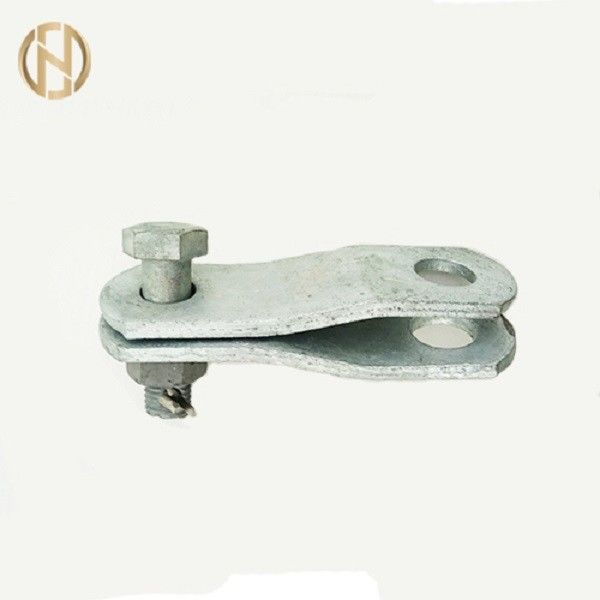

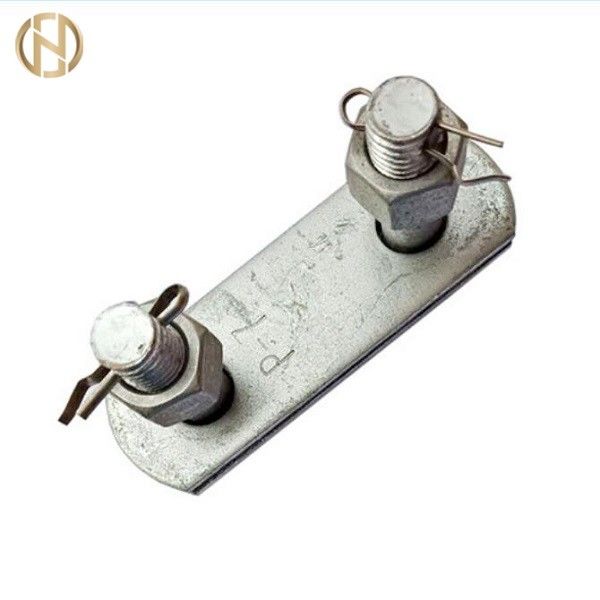

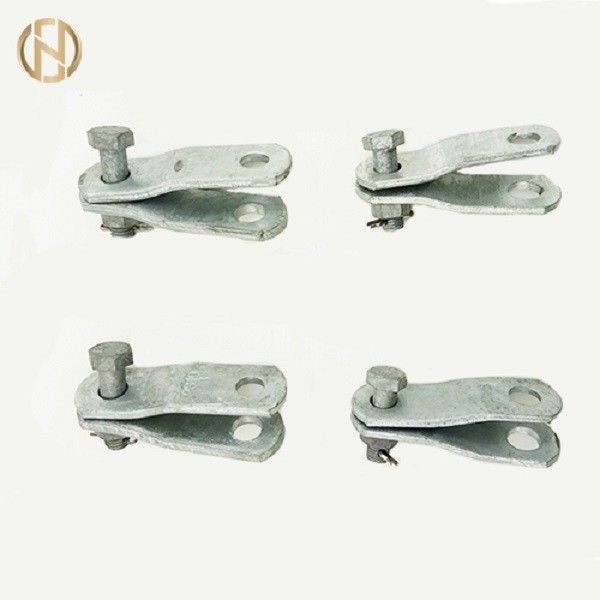

P & PS type parallel clevises (connective type) can change the length of assembly parts through connecting single-layer clevis with single-layer clevis or connecting single-layer clevis with double-layer clevis. It is made up of medium-thick steel plate combined with the technics of punching & shearing. As one of connecting fittings, its function is same as PD type clevis, Z type clevis, ZBD type clevis, U type clevis, adjusting plate, yoke plate and so on. In modern grid erection, a great number of clevises need to be used.
National Grid Type | No. 85 Standard Type | Dimension (mm) | Nominal Failure Load (kn) | ||||
A | B | C | M | H | |||
P-0770 | P-7 | 40 | 6 | 20 | 16 | 70 | 70 |
P-1080 | P-10 | 45 | 8 | 20 | 18 | 80 | 100 |
P-1290 | P-12 | 50 | 10 | 20 | 22 | 90 | 120 |
P-16100 | P-16 | 60 | 8 | 22 | 24 | 100 | 160 |
P-21 | 70 | 14 | 30 | 27 | 120 | 210 | |
P-21100 | 60 | 10 | 24 | 24 | 100 | 210 | |
P-25 | 78 | 16 | 34 | 30 | 120 | 250 | |
P-25120 | 70 | 12 | 28 | 27 | 120 | 250 | |
P-30 | 80 | 16 | 38 | 36 | 120 | 300 | |
P-32120 | 80 | 14 | 32 | 30 | 120 | 320 |
National Grid Type | No. 85 Standard Type | Dimension (mm) | Nominal Failure Load (kn) | Weight (kg) | ||||
C | B | M | H | Φ | ||||
PS-0790 | PS-7 | 18 | 16 | 16 | 90 | 20 | 70 | 0.60 |
PS-10100 | PS-10 | 20 | 18 | 18 | 100 | 20 | 100 | 0.80 |
PS-12 | 20 | 20 | 22 | 95 | 24 | 120 | 1.50 | |
PS-16 | 26 | 24 | 24 | 155 | 26 | 160 | 2.70 | |
PS-30 | 38 | 34 | 36 | 140 | 39 | 300 | 5.30 |
