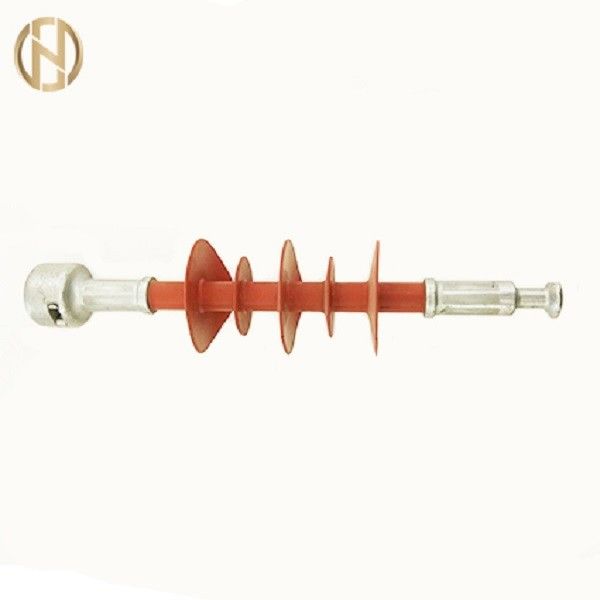

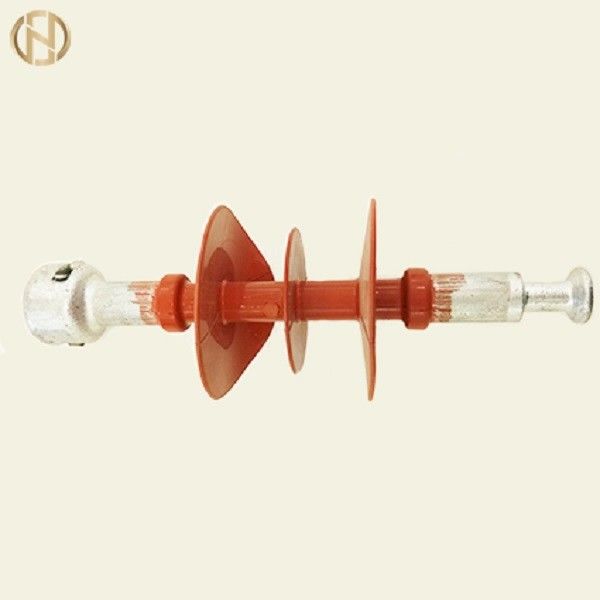

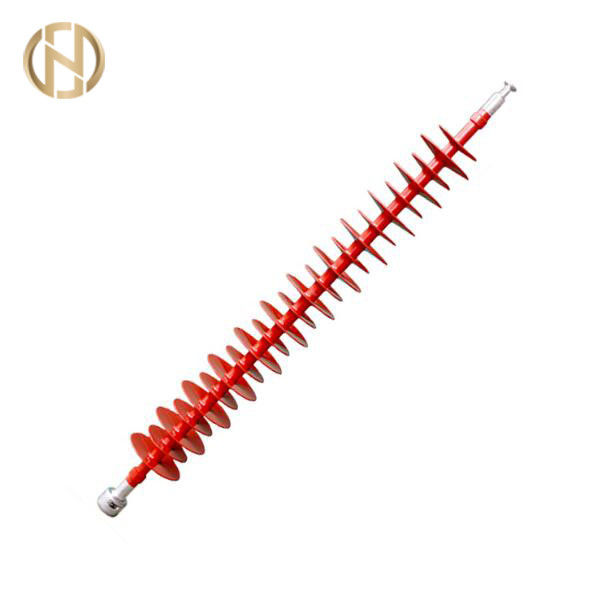

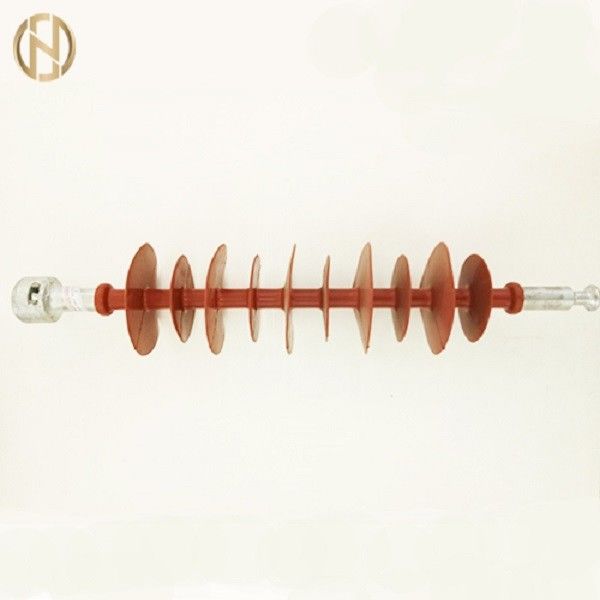

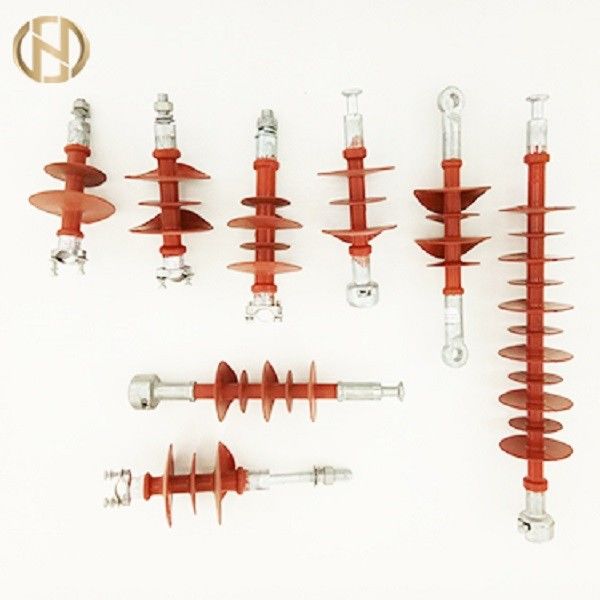

FXBW4 10-500kV Composite Suspension Insulator
Descriptions:
This Product is Special for badly polluted areas,high mechanical tension load, long span and compact power line. and have features of light weight, small volume, unbreakable , anti-bent, high strength for anti-twist and strong explosion protection
Type | Rated voltage (kV) |
Rated mechanical tension load (KN) |
Connection mark | Structural height (mm) |
Min arc distance (mm) |
Min nominal creepage distance (mm) |
Lightning full wave impulse withstand voltage ≥ (kV) |
Operating impulse withstand voltage ≥ (kV) |
Frequency withstand voltage (kV) |
FXBW4-10/40 | 10 | 40 | 11W | 340±15 | 190 | 400 | 95 | - | 60 |
FXBW4-10/70 | 10 | 70 | 16W | 360±15 | 190 | 490 | 95 | - | 60 |
FXBW4-10/100 | 10 | 100 | 16W | 400±15 | 190 | 490 | 95 | - | 60 |
FXBW4-20/40 | 20 | 40 | 16W | 450±15 | 280 | 600 | 170 | - | 75 |
FXBW4-20/70 | 20 | 70 | 16W | 470±15 | 280 | 750 | 170 | - | 75 |
FXBW4-20/100 | 20 | 100 | 16W | 500±15 | 280 | 750 | 170 | - | 75 |
FXBW4-20/120 | 20 | 120 | 16W | 500±15 | 280 | 750 | 170 | - | 75 |
FXBW4-35/70 | 35 | 70 | 16W | 640±15 | 450 | 1300 | 230 | - | 95 |
FXBW5-35/70 | 35 | 70 | 16W | 750±15 | 530 | 1370 | 250 | - | 105 |
FXBW4-35/100 | 35 | 100 | 16W | 680±15 | 450 | 1300 | 230 | - | 95 |
FXBW5-35/100 | 35 | 100 | 16W | 750±15 | 530 | 1370 | 250 | - | 105 |
FXBW4-35/120 | 35 | 120 | 16W | 680±15 | 450 | 1300 | 230 | - | 95 |
FXBW4-66/70 | 66 | 70 | 16W | 900±15 | 700 | 1900 | 410 | - | 185 |
FXBW5-66/70 | 66 | 70 | 16W | 1010±15 | 780 | 2130 | 410 | - | 185 |
FXBW4-66/100 | 66 | 100 | 16W | 940±15 | 700 | 1900 | 410 | - | 185 |
FXBW5-66/100 | 66 | 100 | 16W | 1010±15 | 780 | 2130 | 410 | - | 185 |
FXBW4-66/120 | 66 | 120 | 16W | 940±15 | 700 | 1900 | 410 | - | 185 |
FXBW-110/70 | 110 | 70 | 16W | 1200±15 | 1000 | 3150 | 550 | - | 230 |
FXBW4-110/70-1420 | 110 | 70 | 16W | 1420±15 | 1200 | 3600 | 550 | - | 230 |
FXBW4-110/100 | 110 | 100 | 16W | 1240±15 | 1000 | 3150 | 550 | - | 230 |
FXBW4-110/100-1440 | 110 | 100 | 16W | 1440±15 | 1200 | 3600 | 550 | - | 230 |
FXBW4-110/120 | 110 | 120 | 16W | 1240±15 | 1000 | 3150 | 550 | - | 230 |
FXBW4-110/120-1440 | 110 | 120 | 16W | 1440±15 | 1200 | 3600 | 550 | - | 230 |
FXBW4-110/160 | 110 | 160 | 20R | 2150±30 | 1050 | 3600 | 550 | - | 230 |
FXBW4-110/160-1440 | 110 | 160 | 20R | 2240±30 | 1140 | 4200 | 550 | - | 230 |
FXBW3-220/70 | 220 | 70 | 16W | 2150±30 | 1900 | 6300 | 1000 | - | 395 |
FXBW4-220/70 | 220 | 70 | 16W | 2240±30 | 2000 | 6600 | 1000 | - | 395 |
FXBW3-220/100 | 220 | 100 | 16W | 2150±30 | 1900 | 6300 | 1000 | - | 395 |
FXBW4-220/100 | 220 | 100 | 16W | 2240±30 | 2000 | 6600 | 1000 | - | 395 |
FXBW5-220/100 | 220 | 100 | 16W | 2470±30 | 2150 | 6900 | 1000 | - | 395 |
FXBW4-220/120 | 220 | 120 | 16W | 2240±30 | 2000 | 6600 | 1000 | - | 395 |
FXBW4-220/160 | 220 | 160 | 20R | 2240±30 | 1900 | 6300 | 1000 | - | 395 |
FXBW5-220/160 | 220 | 160 | 20R | 2470±30 | 2150 | 6900 | 1000 | - | 395 |
FXBW4-220/180 | 220 | 180 | 20R | 2240±30 | 1900 | 6300 | 1000 | - | 395 |
FXBW5-220/180 | 220 | 180 | 20R | 2470±30 | 2150 | 6900 | 1000 | - | 395 |
FXBW4-220/210 | 220 | 210 | 20R | 2240±30 | 1900 | 6300 | 1000 | - | 395 |
FXBW5-220/210 | 220 | 210 | 20R | 2270±30 | 2150 | 6900 | 1000 | - | 395 |
FXBW3-330/100 | 330 | 100 | 16W | 2930±40 | 2600 | 9075 | 1425 | 950 | 570 |
FXBW4-330/100 | 330 | 100 | 16W | 2990±40 | 2600 | 9500 | 1425 | 950 | 570 |
FXBW3-330/120 | 330 | 120 | 16W | 2930±40 | 2600 | 9075 | 1425 | 950 | 570 |
FXBW4-330/120 | 330 | 120 | 16W | 2990±40 | 2600 | 9500 | 1425 | 950 | 570 |
FXBW3-330/160 | 330 | 160 | 20R | 2930±40 | 2600 | 9075 | 1425 | 950 | 570 |
FXBW4-330/160 | 330 | 160 | 20R | 2990±40 | 2600 | 9500 | 1425 | 950 | 570 |
FXBW3-330/180 | 330 | 180 | 20R | 2930±40 | 2600 | 9075 | 1425 | 950 | 570 |
FXBW4-330/180 | 330 | 180 | 20R | 2990±40 | 2600 | 9500 | 1425 | 950 | 570 |
We can according to your requirements, production of special connection structure and the height of the product |
Type | Rated voltage (kV) |
Rated mechanical tension load (KN) |
Connection mark | Structural height (mm) |
Min arc distance (mm) |
Min nominal creepage distance (mm) |
Lightning full wave impulse withstand voltage ≥ (kV) |
Operating impulse withstand voltage ≥ (kV) |
Frequency withstand voltage (kV) |
FXBW3-330/210 | 330 | 210 | 20R | 2930±40 | 2600 | 9075 | 1425 | 950 | 570 |
FXBW4-330/210 | 330 | 210 | 20R | 2990±40 | 2600 | 9500 | 1425 | 950 | 570 |
FXBW3-330/240 | 330 | 240 | 20R | 2990±40 | 2600 | 9075 | 1425 | 950 | 570 |
FXBW4-330/240 | 330 | 240 | 20R | 3050±40 | 2600 | 9500 | 1425 | 950 | 570 |
FXBW3-500/100 | 500 | 100 | 16W | 4030±50 | 3650 | 13750 | 2050 | 1240 | 740 |
FXBW3-500/100-4340 | 500 | 100 | 16W | 4340±50 | 3650 | 13750 | 2050 | 1240 | 740 |
FXBW4-500/100 | 500 | 100 | 16W | 4450±50 | 4000 | 14500 | 2250 | 1240 | 740 |
FXBW3-500/120 | 500 | 120 | 16W | 4030±50 | 3650 | 13750 | 2050 | 1240 | 740 |
FXBW3-500/120-4340 | 500 | 120 | 16W | 4340±50 | 3650 | 13750 | 2050 | 1240 | 740 |
FXBW4-500/120 | 500 | 120 | 16W | 4450±50 | 4000 | 14500 | 2250 | 1240 | 740 |
FXBW3-500/160 | 500 | 160 | 20R | 4030±50 | 3650 | 13750 | 2050 | 1240 | 740 |
FXBW3-500/160-4340 | 500 | 160 | 20R | 4340±50 | 3650 | 13750 | 2050 | 1240 | 740 |
FXBW4-500/160 | 500 | 160 | 20R | 4450±50 | 4000 | 15000 | 2250 | 1240 | 740 |
FXBW3-500/180 | 500 | 180 | 20R | 4030±50 | 3650 | 13750 | 2050 | 1240 | 740 |
FXBW3-500/180-4340 | 500 | 180 | 20R | 4340±50 | 3650 | 13750 | 2050 | 1240 | 740 |
FXBW4-500/180 | 500 | 180 | 20R | 4450±50 | 4000 | 15000 | 2250 | 1240 | 740 |
FXBW3-500/210 | 500 | 210 | 20R | 4030±50 | 3650 | 13750 | 2050 | 1240 | 740 |
FXBW3-500/210-4340 | 500 | 210 | 20R | 4340±50 | 3650 | 13750 | 2050 | 1240 | 740 |
FXBW4-500/210 | 500 | 210 | 20R | 4450±50 | 4000 | 15000 | 2250 | 1240 | 740 |
FXBW3-500/240 | 500 | 240 | 20R | 4030±50 | 3650 | 13750 | 2050 | 1240 | 740 |
FXBW3-500/240-4340 | 500 | 240 | 20R | 4340±50 | 3650 | 13750 | 2050 | 1240 | 740 |
FXBW4-500/240 | 500 | 240 | 20R | 4450±50 | 4000 | 15000 | 2250 | 1240 | 740 |
FXBW3-500/300 | 500 | 300 | 24R | 4340±50 | 3650 | 13750 | 2050 | 1240 | 740 |
FXBW4-500/300 | 500 | 300 | 24R | 4450±50 | 4000 | 15000 | 2250 | 1240 | 740 |
FXBW4-500/300-6460 | 500 | 300 | 24R | 6460±50 | 6000 | 15000 | 2250 | 1240 | 740 |
FXBW4-500/400 | 500 | 400 | 28R | 4450±50 | 4000 | 15000 | 2250 | 1240 | 740 |
FXBW4-750/160 | 750 | 160 | 20R | 6650±50 | 6000 | 21600 | 2700 | 1800 | 1125 |
FXBW4-750/210 | 750 | 210 | 20R | 6650±50 | 6000 | 21600 | 2700 | 1800 | 1125 |
FXBW4-750/240 | 750 | 240 | 20R | 6650±50 | 6000 | 21600 | 2700 | 1800 | 1125 |
FXBW4-750/300 | 750 | 300 | 24R | 6650±50 | 6000 | 21600 | 2700 | 1800 | 1125 |
FXBW4-750/400 | 750 | 400 | 28R | 6650±50 | 6000 | 21600 | 2700 | 1800 | 1125 |
We can according to your requirements, production of special connection structure and the height of the product |
Installations:
1. Insulators should be handled gently during transportation and installation. They should not be thrown, and avoid collision and friction with all kinds of miscellaneous pieces and sharp objects.
2. When the composite insulator is lifted, the knot should be hit on the end attachment. It is forbidden to hit the umbrella skirt or the sheath. When the rope must touch the umbrella skirt and the sheath part, it should be wrapped with a soft cloth at the contact part.
3. The composite insulator should not be used as an auxiliary tool for the discharge (receiving) line, so as not to damage the insulator due to impact or bending moment.
4. It is strictly forbidden to step on the insulator umbrella skirt.
5. When installing the equalizing ring, pay attention to the adjustment so that the ring is perpendicular to the axis of the insulator. The mounting position is shown on the right. For the open type equalizing ring, pay attention to the same direction of opening at both ends to facilitate discharge and protect the shed.
