Durable HX3110 to HX3139 Type Preformed Armor Rods or Repairs for ACSR
The preformed armor rods are used for protecting conductor from damages subjected to vibration, clamp stress, friction, electric arc & other external influence. The preformed armor rods can prevent conductor from damage of electric arc, friction and other reasons on slight vibration short-span transmission line. On the other hand, it can be used for repairing rods, to remedy the damaged conductor for recovering the inherent mechanical strength & conductivity; on the other hand, it can be also used for protecting branch rods, stopping branch conductor from damages rising from electric arc & friction.

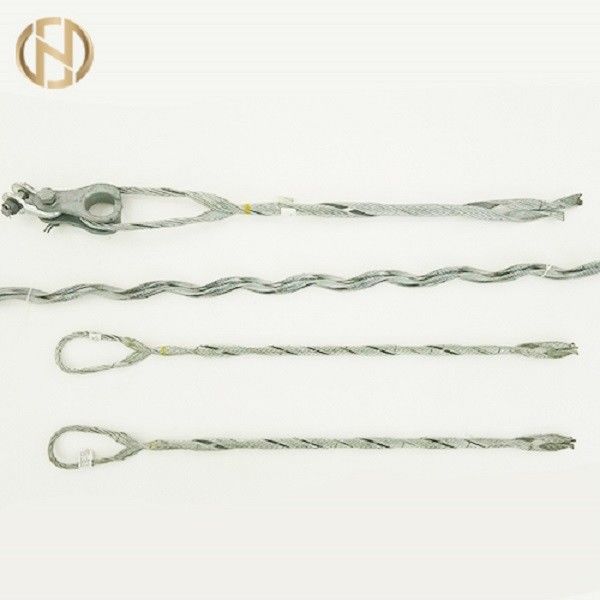

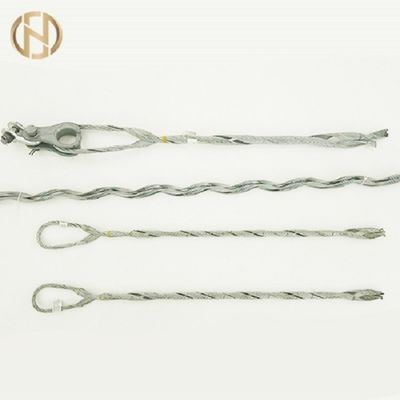

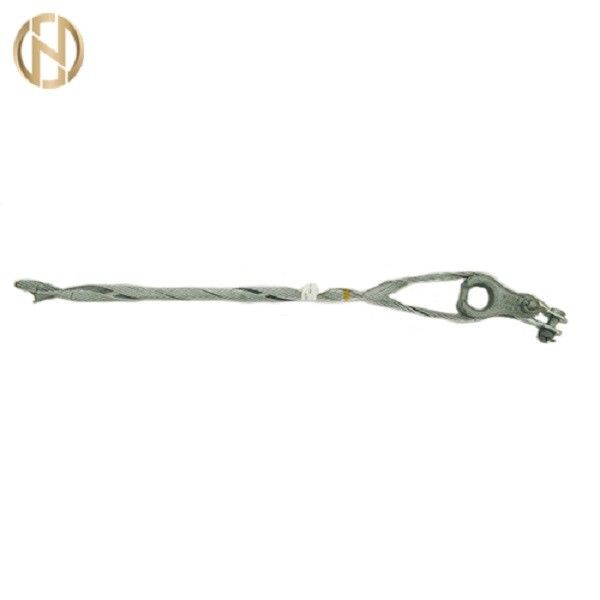

The preformed armor rods & short preformed armor rods are of simple structure in which each set of armor rods look like hollow tube, used for protecting the conductor wrapped up through forming holding strength.
Type | Applicable Conductor Diameter(mm) | Applicable Conductor Model GB1179-1983 | Clamp Length(mm) | |
Conductor Suspension Set/ Double Suspension Set | Min | Max | ACSR LGJ/LGJF | |
HX3110 | 7.85 | 8.28 | 35/6 | 1180 1420 |
HX3610 | ||||
HX3113 | 9.31 | 9.88 | 50/8 | 1270 1580 |
HX3613 | ||||
HX3116 | 11.10 | 11.76 | 50/30,70/10 | 1370 1680 |
HX3616 | ||||
HX3119 | 13.24 | 14.00 | 70/40,95/15, 95/20 | 1472 1780 |
HX3619 | ||||
HX3120 | 14.01 | 14.86 | 120/7 | 1526 1830 |
HX3620 | ||||
HX3121 | 14.87 | 15.39 | 120/20 | 1575 1880 |
HX3621 | ||||
HX3122 | 15.40 | 16.00 | 95/55, 120/25, 150/8 | 1628 1930 |
HX3622 | ||||
HX3124 | 16.66 | 17.25 | 150/20,150/25 | 1678 1980 |
HX3624 | ||||
HX3125 | 17.30 | 17.86 | 150/35 | 1730 2030 |
HX3625 | ||||
HX3126 | 17.87 | 18.80 | 120/70,185/10 | 1830 2130 |
HX3626 | ||||
HX3127 | 18.81 | 19.86 | 185/25,185/30,185/45,210/10 | 1830 |
HX3128 | 19.87 | 20.68 | 210/25, 210/35 | 1930 |
HX3129 | 20.69 | 21.46 | 210/50 | 1930 |
HX3130 | 21.47 | 23.04 | 240/30,240/40,240/55,300/15 | 1980 |
HX3131 | 23.05 | 23.60 | 300/20 | 2030 |
HX3132 | 23.61 | 24.79 | 300/25, 300/40, 300/50 | 2234 |
HX3133 | 24.80 | 25.81 | 300/70 | 2337 |
HX3134 | 25.82 | 26.29 | 400/25 | 2390 |
HX3135 | 26.30 | 27.03 | 400/20, 400/35 | 2440 |
HX3136 | 27.04 | 27.89 | 400/50 | 2440 |
HX3137 | 27.90 | 28.93 | 400/65 | 2540 |
HX3138 | 28.94 | 29.49 | 400/95 | 2540 |
HX3139 | 29.50 | 30.68 | 500/35, 500/45 | 2540 |
