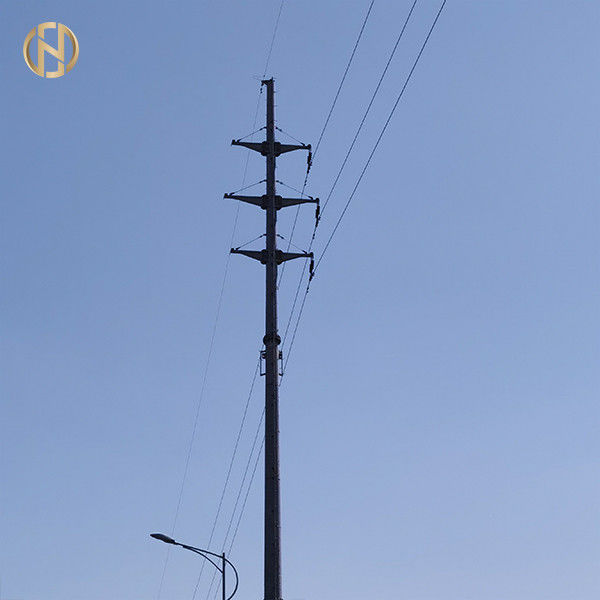

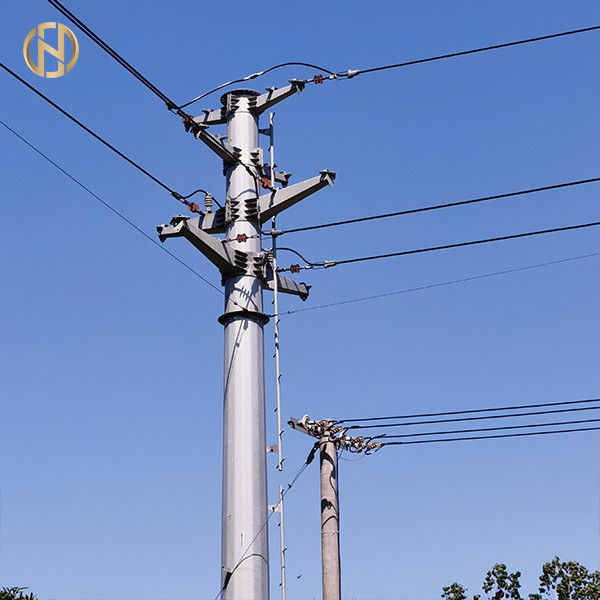

19M 3000daN 60FT Tubular Steel Pole,Tapered steel pole,monopole tower
Product Description
The products above are 19M 3000daN 60FT Tubular Steel Pole,Tapered steel pole,monopole tower
made specifically for power distribution between 69kv
To design in accordance with PLS software, we will require the following design parameters:
Product Specifications
| Carbon (C), % | 0.071/0.085 | 0.18 max | Passed | |||||
| Manganese (Mn), % | 1.223/1.235 | 1.8 max | ||||||
| Phosphorus (P), % | 0.014/0.014 | 0.03 max | ||||||
| Sulfur (S), % | 0.0067/0.0034 | 0.03 max | ||||||
| Silicon (Si), % | 0.155/0.139 | 0.60 max | ||||||
| Niobium (Nb), % | 0.016/0.015 | 0.11 max | ||||||
| Copper (Cu), % | -- | |||||||
| Nickel (Ni), % | -- | |||||||
| Chromium (Cr), % | -- | |||||||
| Aluminum (Al), % | -- | |||||||
| Columbium (Co), % | -- | |||||||
| Vanadium (V), % | -- | |||||||
| Titanium (Ti), % | -- | |||||||
| Type | 119M 3000daN 60FT Tubular Steel Pole,Tapered steel pole,monopole tower |
| Suitable Uses | Power Distribution |
| Shape( Cross section) |
Octagonal
|
| Power grade | 69kv |
| No of Section | One |
| Length (m) | 19M |
| Foundation | Direct burial- 2.5m |
| Working Load | 3000daN |
| Breaking Load | 6000daN |
| Safety Factor | 2.0 |
| Material |
ASTM 572 GR65 or Q460 |
| Minimum Yield Strength | 450 mpa |
| Minimum Ultimate Tensile Strength | 550 mpa |
| Max Ultimate Tensile Strength | 690mpa |
| EL % | >=15% |
| Top diameter(mm) | >=320 |
| Bottom diameter(mm) | >=600 |
| Min Thickness(mm) | >=17.5 mm |
| Tolerance of Dimensions | +- 1% |
| Engraving | Name plate through rivet or glue ,engraving ,embossment as per customers’ requirements |
| Surface Treatment |
Hot Dip Galvanization according to ASTM A123 standards/Powder Coating
|
| Joint of Poles |
Insert Mode, Inner Flange Mode, Face to Face Joint Mode.
|
| Loading Conditions | |
|
0-5 degree |
|
32m/s |
|
1.0 |
|
10% of overall pole length |
| Welding |
Internal and external double welding process produces a seamless surface Welding Standard :AWS ( American Welding Society ) D 1.1 |
Packaging & Shipping
We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.
Process of Production
Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration→ Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging
FAQ
| Q1. How can I get a price of needed pole? |
|
A: 1. Please provide exact dimensions such as height, pole shaft material type and thickness, top and bottom diameters. We can then give you an accurate quotation based on your specifications. 2. You can send us a detail and assembly drawing; we can then provide you with an accurate quotation based on the drawing. |
| Q2. I am a small wholesaler; do you accept a small order? |
| A: It's not a problem if you are a small wholesaler; we accept orders of various quantities. |
| Q3. I am a designer; Can you help me to produce the sample which we designed? |
| A: Our mission is to help our customers be successful. We are more than happy to help you solve any problems that you may have. |
| Q4: We want be your agent for our area. How do I apply for this? |
| A: Please send your proposal and your company profile. |
