Product Description

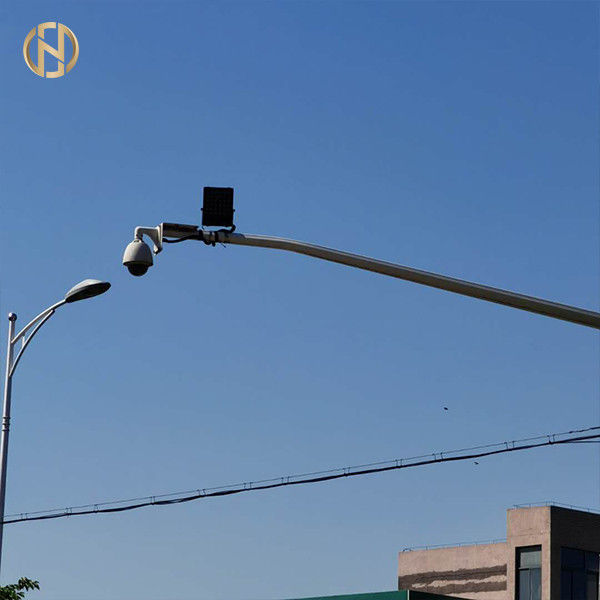

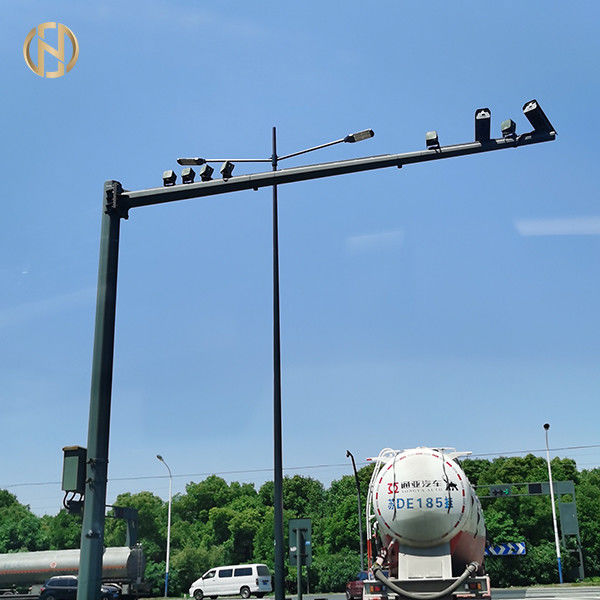

Jiangsu Manufacturer Galvanized Steel CCTV Camera Poles/Steel Pole
The monitoring rod series are divided into: octagonal monitoring rod, round tube monitoring rod, equal diameter monitoring rod, variable diameter monitoring rod, cone monitoring rod,
The height is generally 3-8 meters, mainly for traffic roads, intersections, schools, government, communities, factories, border defenses, airports, etc. where surveillance cameras are required.
The use of monitoring facilities: improving urban safety and prevention, is an effective guarantee for residents' lives
The monitoring rod is divided into a vertical pole, a cross arm, a flange, a service port, and an accessory according to the structure.
|
Pole height (m) |
Lower caliber (mm) |
Upper caliber (mm) |
Wall thickness (mm) |
arm (m) |
Lower calibe r(mm) |
Upper caliber (mm) |
Wall thickness (mm |
weight (kg) |
Chassis size (mm) |
Foundation size (mm) |
| 6~6.5 | 240 | 180 | 3.75 | 2 | 140 | 90 | 3.0 | 173 | 400x400x16 | 700x700x1000 |
| 6~6.5 | 240 | 180 | 3.75 | 3 | 140 | 90 | 3.0 | 182 | 400x400x16 | 700x700x1000 |
| 6~6.5 | 240 | 180 | 3.75 | 4 | 140 | 90 | 3.0 | 190 | 400x400x16 | 700x700x1000 |
| 6~6.5 | 240 | 180 | 3.75 | 5 | 140 | 90 | 3.0 | 200 | 400x400x16 | 700x700x1000 |
| 6~6.5 | 300 | 200 | 5.5 | 6 | 180 | 110 | 3.75 | 374 | φ600x18 | 800x800x1200 |
| 6~6.5 | 300 | 200 | 5.5 | 7 | 180 | 110 | 3.75 | 386 | φ600x18 | 800x800x1200 |
| 6~6.5 | 300 | 200 | 5.5 | 8 | 180 | 110 | 3.75 | 399 | φ600x18 | 1000x1000x1200 |
| 6~6.5 | 300 | 200 | 7.5 | 9 | 180 | 110 | 3.75 | 412 | φ600x18 | 1000x1000x1200 |
| 6~6.5 | 320 | 280 | 7.5 | 10 | 200 | 100 | 4.75 | 618 | φ600x20 | 1000x1000x1500 |
| 6~6.5 | 320 | 280 | 7.5 | 11 | 200 | 100 | 4.75 | 635 | φ600x20 | 1000x1000x1500 |
| 6~6.5 | 320 | 280 | 7.5 | 12 | 200 | 100 | 4.75 | 651 | φ600x20 | 1000x1000x1500 |
| 6~6.5 | 360 | 300 | 7.5 | 13 | 280 | 100 | 5.75+3.75 | 840 | φ650x20 | 1200x1200x2000 |
| 6~6.5 | 360 | 300 | 7.5 | 14 | 280 | 100 | 5.75+3.75 | 862 | φ650x20 | 1200x1200x2000 |
| 6~6.5 | 360 | 300 | 7.5 | 15 | 280 | 100 | 5.75+3.75 | 885 | φ650x20 | 1200x1200x2000 |
| 6~6.5 | 360 | 300 | 7.5 | 16 | 280 | 100 | 5.75+3.75 | 907 | φ650x20 | 1200x1200x2000 |
.
Process of Production
Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration → Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging
Packaging & Shipping
We pack the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation.
Packaging can also be done according to clients’ requirements.
We can ship the poles by sea or air or express or trains and we have our regular shipping agent.
FAQ
| Q1. How can I get a price of needed pole? |
|
A: 1. Please provide exact dimensions such as height, pole shaft material type and thickness, top and bottom diameters. We can then give you an accurate quotation based on your specifications. |
| Q2. I am a small wholesaler; do you accept a small order? |
| A: It's not a problem if you are a small wholesaler; we accept orders of various quantities. |
| Q3. I am a designer; Can you help me to produce the sample which we designed? |
| A: Our mission is to help our customers be successful. We are more than happy to help you solve any problems that you may have. |
| Q4: We want be your agent for our area. How do I apply for this? |
| A: Please send your proposal and your company profile.It will be better if we can know the estimated purchase quantity of every year. |
| Q5. Tell me about your company? |
| We have been a manufacturer and exporter of all kinds of steel poles including power poles, street lighting poles, telecommunications poles and other steel based products since 2000. Our products have been exported to many regions around the world. |
| Q6. Do you have some special policies for Branded companies? |
| A: Yes, we have some special support for the company who has own brand but are also in our VIP customers list. Please send us a copy of your sales data so we can analyze the best course of action in supporting you for your products in your market. |
| Q7. Do you provide Door to Door service? Because i don't know how to deal with customs clearance. |
| A: We provide Door to Door service to help you reduce shipping time and costs. This is because we have additional discounts with the shipping companies as we have done many shipments in the past. This in turn will save you lots of time and money. |
| Q8. Could you please recommand some poles to us? Because I don't know how to choose a pole. |
| A: Yes,we can recommand some styles according to your target price or other information. |
