Height 13m Electrical Power Pole , Metal Electric Pole 450daN SF 2.0 For ICE

Height 13m Electrical Power Pole , Metal Electric Pole 450daN SF 2.0 For ICE

  • Highlight

    electrical power post

    ,

    electric power post

  • Height
    13M
  • Thickness
    4.5MM
  • Material
    Q235, Q345, Q420, Q460, Gr 50, Gr60, SS400, Etc.
  • Shape
    Conical Round
  • Color
    According To Clients' Requirment
  • Surface Treatment
    Hot Dip Galvanized
  • Welding
    AWS D 1.1
  • Place of Origin
    CHINA
  • Brand Name
    FUTAO
  • Certification
    ISO 9001 : 2008
  • Model Number
    FTGG - 0 38 917
  • Minimum Order Quantity
    11 pieces
  • Price
    $222 - $445
  • Packaging Details
    40HC or OT, wrap by mat or straw mat
  • Delivery Time
    1weeks
  • Payment Terms
    L/C, T/T
  • Supply Ability
    150pcs/days

Height 13m Electrical Power Pole , Metal Electric Pole 450daN SF 2.0 For ICE

                                      Height 13m Electrical Power Pole , Metal Electric Pole 450daN SF 2.0 For ICE



Product Description


Our electrical poles are specifically designed for 13m electrical power poles,metal post 450daN SF 2.0 for ICE . We have successfully delivered our products to satisfied customers all around the world including Southeast Asia, the Middle East, and Europe. In addition, we can produce various types of poles depending on its usage such as suspension, tension and terminal/dead angle poles.



Specifical Details


Product Name

13m electrical power poles,metal post 450daN SF 2.0 for ICE

Type

directly

Height

13M

Thickness

4.5MM

Shape

Octagonal

Surface Treatment

Hot Dip Galvanized according to ASTM A123 standard or any other standards according to clients' request

Color

Any, According to clients' request

Ground Mounted

Anchor Bolt

Voltage

10kv 11kv ,

Material

Q235, Q345, Q420, Q460, Gr 50, Gr60, SS400, etc.

Welding



Welding complies with AWS D1.1 standard

COwelding or Submerged Arc Auto methods

No scarring, craters, spatters, distortions, defects of any kind due to welding errors

Unique Internal and External Welding method that allows for a smoother surface

Life Expectancy

More than 25 years depending on various environmental factors

Qualification

ISO9001-2015, AAA Credit Rating

Wind Resistance

160 km/h

Earthquake Resistance

Against earthquake of grade 8



Additional Details


Design Code: American Standard ASCE/SEI 48-11

Design Software: PLS-POLES

Export Market Coverage: Asia-Pacific, Central & South America, Europe, Middle East, Africa

Testing Process: Loading Tests may be conducted on factory site if required



Process of Production


Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling→ Calibration → Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging

Height 13m Electrical Power Pole , Metal Electric Pole 450daN SF 2.0 For ICE 0

Testing

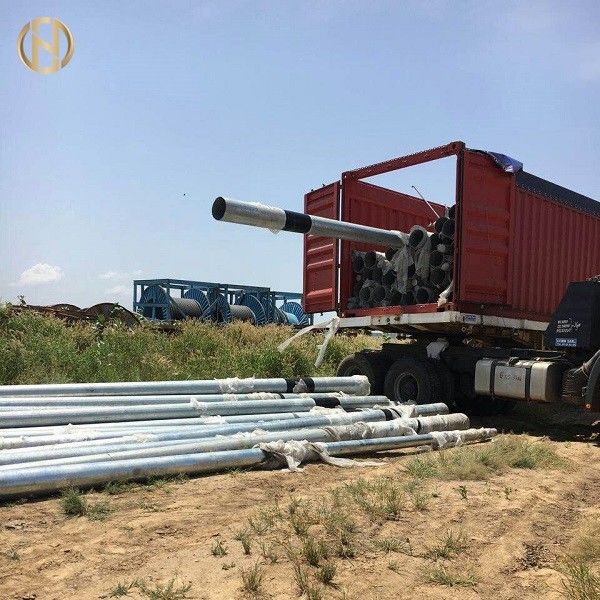

Packaging & Shipping


We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.



Q4. We want be your agent for our area. How do I apply for this?
A: Please send your proposal and your company profile to
Q5. Tell me about your company?
A : We have been a manufacturer and exporter of all kinds of steel poles including power poles, street lighting poles, telecommunications poles and other steel based products since 2000. Our products have been exported to many regions around the world.
Q6. Do you have some special policies for Branded companies?
A: Yes, we have some special support for the company who has own brand but are also in our VIP customers list. Please send us a copy of your sales data so we can analyze the best course of action in supporting you for your products in your market.
Q7. Do you provide Door to Door service? Because i don't know how to deal with customs clearance.
A: Yes. We provide Door to Door service to help you reduce shipping time and costs. This is because we have additional discounts with the shipping companies as we have done many shipments in the past. This in turn will save you lots of time and money.
