12 Side Telescopic Electrical Power Pole  Electric Line Pole 100um 230kv

12 Side Telescopic Electrical Power Pole Electric Line Pole 100um 230kv

  • High Light

    electrical power post

    ,

    electric line pole

  • Height
    38m
  • Thickness
    12 To 25mm
  • Material
    ASTM 572 , Gr60, SS400, Etc.
  • Shape
    Polygonal Or Conical
  • Surface Treatment
    Hot Dip Galvanized
  • Color
    According To Clients' Requirment
  • Welding
    AWS D 1.1
  • Place of Origin
    China
  • Brand Name
    Futao
  • Certification
    ISO 9001 : 2008
  • Model Number
    FTGG - 60
  • Minimum Order Quantity
    2 pieces
  • Price
    $1020 - $48050
  • Packaging Details
    40HC or OT, wrap by mat or straw mat
  • Delivery Time
    15 - 30 workdays
  • Payment Terms
    L/C, T/T
  • Supply Ability
    10pcs per day

12 Side Telescopic Electrical Power Pole Electric Line Pole 100um 230kv

                               12 Side Telescopic Electrical Power Pole Zinc Electric Line Pole 100um 230kv



Product Description

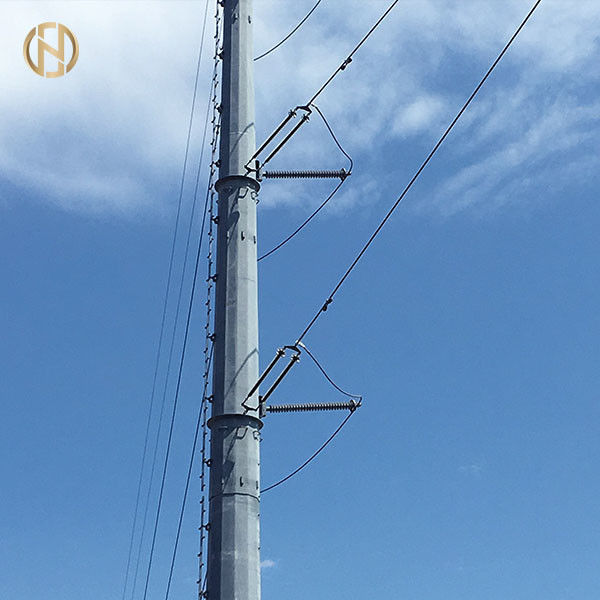

Tension electrical power pole, , 12 side , telescopic electric power pole,zinc 100um,230kv ,black with zinc color ,utility pole equinmentWe have successfully delivered our products to satisfied customers all around the world including Southeast Asia, the Middle East, and Europe. In addition, we can produce various types of poles depending on its usage such as suspension, tension and terminal/dead angle poles.



Specifical Details


Product Name

tension electrical power pole, 12 side , telescopic electric power pole,zinc 100um,230kv  black with zinc color

Type

Suspension Pole, Tension Pole, Angle Pole, Termination Pole

Height

38m

Thickness

12 to 25mm

Shape

Polygonal or Conical

Surface Treatment

Hot Dip Galvanized according to ASTM A123 standard or any other standards according to clients' request

Color

Any, According to clients' request

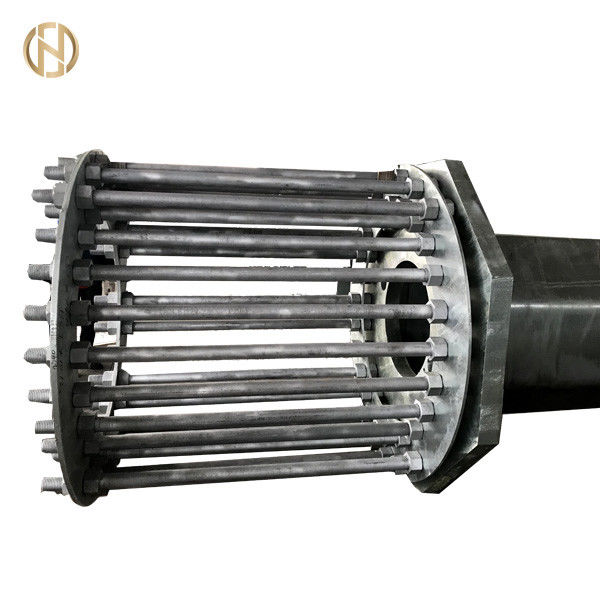

Ground Mounted

Anchor Bolt

Voltage

230kv

Material

Q500C

Welding



Welding complies with AWS D1.1 standard

COwelding or Submerged Arc Auto methods

No scarring, craters, spatters, distortions, defects of any kind due to welding errors

Unique Internal and External Welding method that allows for a smoother surface

Additional welding requirments can be made as per clients' request

Life Expectancy

More than 25 years depending on various environmental factors

Qualification

ISO9001-2015, AAA Credit Rating

Wind Resistance

161 km/h

Earthquake Resistance

Against earthquake of grade 9



Additional Details


Design Code: American Standard ASCE/SEI 48-11

Design Software: PLS-POLES

Export Market Coverage: Asia-Pacific, Central & South America, Europe, Middle East, Africa

Testing Process: Loading Tests may be conducted on factory site if required



C) Specification of steel monopoles:

1. Design conditions:

Loading trees showing, for each load

case, vertical, transversal and longitudinal loads applied to monopole shall be shall be as described in the technical specifications.

Material partial safety factor γM are applied for calculation of cross-sections on yield stress of steel according to EN50341-1.

Poles analysis shall include second order (or P - Λ ) analysis and checking of local buckling according to ASCE report N° 72. Calculation Note shall be issued and submitted to GRIDCo for approval.

Poles are calculated with a limitation of deflection equal to 8 % of height under factored loads (cf EN 50341 §7.4.5.1.3).

2. Materials:

All materials shall be new and in accordance with relevant standards referred to within this specification.



Process of Production


Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling→ Calibration → Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging

12 Side Telescopic Electrical Power Pole  Electric Line Pole 100um 230kv 0



Product Details


12 Side Telescopic Electrical Power Pole  Electric Line Pole 100um 230kv 1





Testing


12 Side Telescopic Electrical Power Pole  Electric Line Pole 100um 230kv 2



Packaging & Shipping


We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.



Q2. I am a small wholesaler; do you accept a small order?
A: It's not a problem if you are a small wholesaler; we accept orders of various quantities.
Q3. I am a designer; Can you help me to produce the sample which we designed?
A: Our mission is to help our customers be successful. We are more than happy to help you solve any problems that you may have.
Q4. We want be your agent for our area. How do I apply for this?
A: Please send your proposal and your company profile to
Q5. Tell me about your company?
A : We have been a manufacturer and exporter of all kinds of steel poles including power poles, street lighting poles, telecommunications poles and other steel based products since 2000. Our products have been exported to many regions around the world.
