18m Galvanised Power Pole Octagonal Galvanized Steel Post Dead End
Product Description
The products above are 18m steel pole, galvanized power pole, octagonal pole , dead end pole
To design in accordance with PLS software, we will require the following design parameters:
Product Specifications

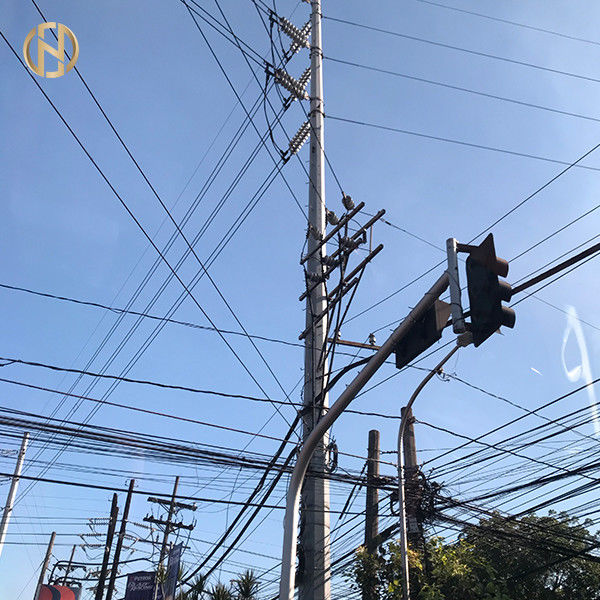

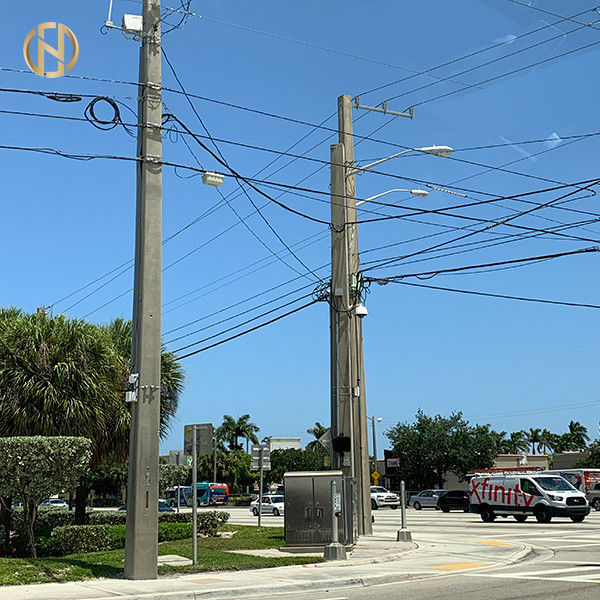

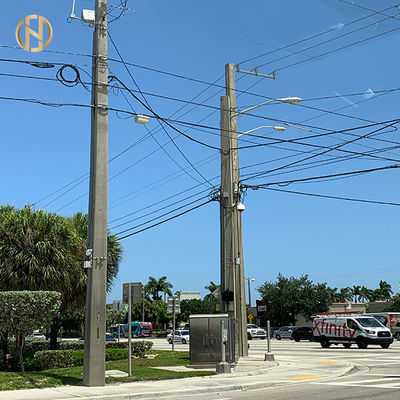

This 18m steel pole, galvanized power pole, octagonal pole , dead end pole using for 69kv or 33kv the electric utility’s overhead high voltage transmission lines.
The specification reference the following standards
| ASCE/SEI 48: | Design of steel transmission pole structures |
| BS EN ISO 1461 : | Hot dip galvanized coatings on fabricate d iron and steel articles. Specification and test methods. |
| ASTM A123 : | Standard specification for zinc (hot galvanized) coating on Iron and Steel Products |
| ASTM A 153/A153M : | Standard specification for zinc (hot galvanized) coatings on iron and steel Hardware |
Product Design
|
Spec Ref |
DESCRIPTION | Required to state | |
| 1.0 | Manufacturing standard(s) | ACSE/SEI 48-11 | |
| 3.1.1 | Pole is tubular steel, tapered and designed in two sections | Yes/No | Yes |
| 3.1.2 | Length (m) | To State | 18 m |
| 3.1.3 | Cross sectional of pole | To State | Dodecagonal |
| 3.L4 | Top diameter (mm) | To State | 300mm |
| 3.1.4 | Top of pole pertmnendy capped | Yes/No | Yes |
| 3.1.5 | Bottom diameter (mm) | To State | 600mm |
| 11.5 | Detachable base provided | Yes/No | Yes |
| 3.1.6 | Pole straight and true in axis over its entire length | To State | Yes |
| 321 | Pole designed in accordance with ASCE/SEI 48 | Yes/No | Yes |
| Pole is suitable for the support of electrical power lines and accessories as detailed in Attachment A _ (Schedule of Particulars -21 m Steel Pole) | Y«/No | Yes | |
| Numbet and position of holes as per Attachment B - Pole Framing Drawing | Yes/No | Yes | |
| Bolt hole diameter (mm) | To State | 23mm | |
| 3.2.2 | Centre of mass of pole | To State | In the Bottom Section |
| 3.2.3 | Ground sleeve provided in accordance with Clause 3.2.3 | Yes/No | Yes |
| 324 | Designed to minimize welds | To State | Yes |
| 325 | Galvanizing | To State | BS EN ISO 1461 |
| 326 | Appropriate ultraviolet light resistant polyurethane coating applied on exposed surface of pole | Yes /No | Yes |
| 326 | Length of coating | To State | 5m |
| 3.3.1 | Grade and type of steel uniform throughout pole | Yes/No | Yes |
| 3.34 | Each section has no circumferential joints or welds | Yes/No | Yes |
| 3.3,2 | Penetration welds provided in accordance with Clause 3.3.2 | Yes/No | Yes |
| 3.3.3 |
Forming or bending in accordance with 3.3.3 |
Yes/No | Yes |
| 3.3.4 | Punched holes are cylindrical and without excessive tear out or depressions | Yes/No | Yes |
| 3,4.1 | NEMA 2'hoie pad provided for grounding | Yes/No | Yes |
| 3.4.1 | Location of ground pad | To State | 500mm above GL |
| 3.4.2 | Grounding pad not painted or covered with coatings | To State | Yes |
| Diameter of holes on grounding pad | To State | 12mm | |
| Threading (mm) | To State | 1.75mm | |
| 3,5.1 | Type of shaft joint | To State | Slip Joint |
| 3.5,1 | Overlap between sections (mm) | To State | 700mm |
| 3.5.2 | Welds in the area of the joint in accordance with Clause 3.5.2 | Yes/No | Yes |
| 3.5.3 | Manufacturer to verify slip joint fit in accordance with Clause 3.53 | To State | Yes |
| 3.5.4 | Jacking lugs and permanent orientation marks provided at slip joint to ensure proper alignment and complete overlap | Yes/No | Yes |
| 355 | Axis of poles not distorted after sections are mated. | Yes/No | Yes |
Packaging & Shipping
We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.
Process of Production
Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration→ Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging
