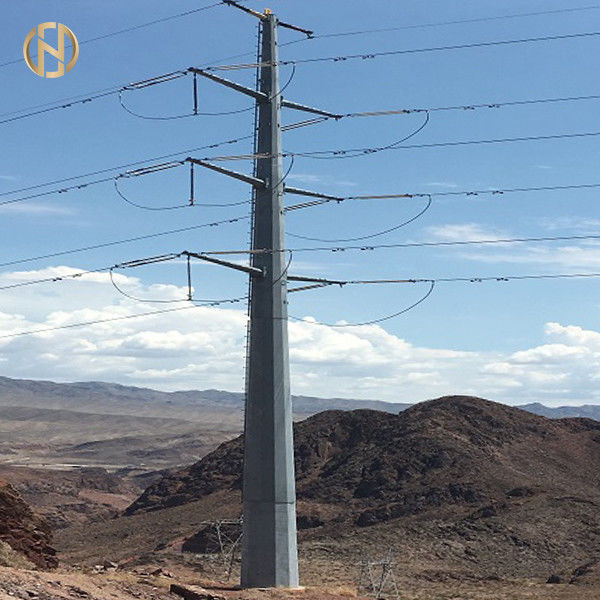

110kv 115kv galvanized steel monpoles, power pole, Q460C material
Product Description
Our galvanized electrical poles are specifically designed for 110kv 115kv galvanized steel monpoles, power pole, Q460C matercial or euqal . We have successfully delivered our products to satisfied customers all around the world including Southeast Asia, the Middle East, and Europe. In addition, we can produce various types of poles depending on its usage such as suspension, tension and terminal/dead angle poles.
Specifical Details
|
Product Name |
110kv 115kv galvanized steel monpoles, power pole, Q460C matercial or euqal |
|---|---|
|
Height |
35m |
|
Thickness |
7- 25mm |
|
Shape |
Tubular, Polygonal or Conical octagonal |
|
Surface Treatment |
Hot Dip Galvanized or any other standards according to clients' request |
|
Color |
Any, According to clients' request |
|
Voltage |
110kv , 115kv |
|
Material |
ASTM GR65, GR50, Q460, A572, |
|
Welding
|
Welding complies with AWS D1.1 standard CO2 welding or Submerged Arc Auto methods No scarring, craters, spatters, distortions, defects of any kind due to welding errors Unique Internal and External Welding method that allows for a smoother surface Additional welding requirments can be made as per clients' request |
|
Life Expectancy |
More than 25 years depending on various environmental factors |
|
Qualification |
ISO9001-2015, AAA Credit Rating |
|
Wind Resisance |
160 km/h |
|
Earthquake Resisance |
Against earthquake of grade 8 |
| ITEM | STANDARD | minimum YIELD STRESS Fy (Mpa) |
minimum TENSILE STRESS Fu (Mpa) | OBSERVATION t = thickness |
| Poles shaft and base plate and arms | EN 10.025 S355 J0 * | 355 345 335 325 | 470-630 470-630 470-630 470-630 | t = 16 16 < t = 40 40 < t = 63 63 < t = 80 |
| Anchor bolts | Cl 6-8 ISO 898 | 480 | 600 |
Process of Production
Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration → Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging
Product Details
Packaging & Shipping
We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.
FAQ
1. Price Term : FOB, CFR or CIF
- The price stated includes pole shaft, base plate, cross arms, anchor bolts and any additional accessories required.
- Shipping Port: Shanghai Port. For FOB, CFR or CIF quotes, please specify which exact shipping model you require, then inform us of the quantity of your order so that we can accurately calculate the local transport charges and sea freight.
2. MOQ : 1 set for customized
3. Payment: 30% by T/T as initial deposit, remaining balance by T/T or L/C at sight before shipment. Other payment terms can be negotiated.
4. Delivery Time : Goods will be ready for shipment within 10 working days after receiving initial deposit
5. Warranty : 30 years
6. Surface Treatment : Hot Dip Galvanization
