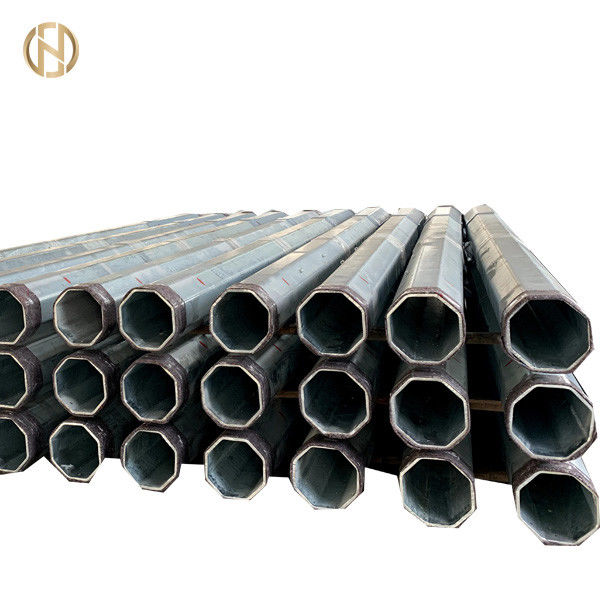

12m Galvanized Power Pole, PAL-1 ,PSN, PAM 3190daN ,31900N Octagonal, 33KV 30KV,Congo
Product Description
The products above are 12m galvanized power pole, PAL-1 ,PSN, PAM 3190daN ,31900N octagonal, 33KV 30KV,congo
To design in accordance with PLS software, we will require the following design parameters:
Product Specifications
21M Galvanized steel pole for congo market 33kv tranmission line
This using for 12m hot-dip-galvanized tubular steel pole for the construction for the electric utility’s overhead high voltage transmission lines.
The specification reference the following standards
| Poteau type PAL-1 / PSN-2 | ||
| Height | m | 12 |
| Diamètre extérieur au sommet | mm | A préciser |
| Diamètre extérieur à la base | mm | A préciser |
| Charge de dimensionnement en tête | N | 16500 |
| Epaisseur de la tôle | mm | A préciser |
| Poids total | kg | A préciser |
| Profondeur d’implantation | m | 2 |
| Plan/esquisse no. | A préciser | |
| Poteau type PAM-1 / PAL-2 | ||
| Hauteur | m | 12 |
| Diamètre extérieur au sommet | mm | A préciser |
| Diamètre extérieur à la base | mm | A préciser |
| Charge de dimensionnement en tête | N | 31900 |
| Epaisseur de la tôle | mm | A préciser |
| Poids total | kg | A préciser |
| Profondeur d’implantation | m | 2 |
| Plan/esquisse no. | A préciser | |

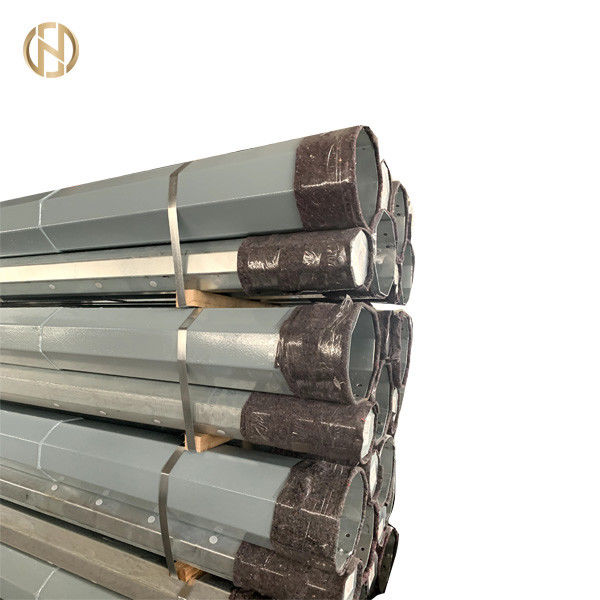

We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.
Factory Pictures
Process of Production
Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration→ Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging
FAQ
| Q1. How can I get a price of needed pole? |
|
A: 1. Please provide exact dimensions such as height, pole shaft material type and thickness, top and bottom diameters. We can then give you an accurate quotation based on your specifications. 2. You can send us a detail and assembly drawing; we can then provide you with an accurate quotation based on the drawing. |
| Q2. I am a small wholesaler; do you accept a small order? |
| A: It's not a problem if you are a small wholesaler; we accept orders of various quantities. |
| Q3. I am a designer; Can you help me to produce the sample which we designed? |
| A: Our mission is to help our customers be successful. We are more than happy to help you solve any problems that you may have. |
| Q4: We want be your agent for our area. How do I apply for this? |
| A: Please send your proposal and your company profile. |
| Q5. Tell me about your company? |
| We have been a manufacturer and exporter of all kinds of steel poles including power poles, street lighting poles, telecommunications poles and other steel based products since 2000. Our products have been exported to many regions around the world. |
| Q6. Do you have some special policies for Branded companies? |
| A: Yes, we have some special support for the company who has own brand but are also in our VIP customers list. Please send us a copy of your sales data so we can analyze the best course of action in supporting you for your products in your market. |
| Q7. Do you provide Door to Door service? Because i don't know how to deal with customs clearance. |
| A: We provide Door to Door service to help you reduce shipping time and costs. This is because we have additional discounts with the shipping companies as we have done many shipments in the past. This in turn will save you lots of time and money. |
