Anti Seismic Design CCTV Camera Pole  Steel Surveillance Camera Pole

Anti Seismic Design CCTV Camera Pole Steel Surveillance Camera Pole

  • High Light

    surveillance camera pole


    security camera pole

  • Height
    4m,6m Or Custom
  • Application
    Crossroads, Intersection, Road Junction
  • Thinkness
    2mm - 30mm
  • Shape Type
    Square, Octagonal, Round, Polygonal, Octagonal, Tapered
  • Finishing 1
    Black Pole, Rough Pole
  • Finishing 2
    Hot Dip Galvanizing Antirust
  • Arm Type
    Single Arm, Double Arms
  • Place of Origin
    Jiangsu China
  • Brand Name
  • Certification
    ISO 9001
  • Model Number
  • Minimum Order Quantity
    2 Pieces
  • Price
    $80 - $1000
  • Packaging Details
    40HC or OT, wrap by mat or straw mat
  • Delivery Time
    30 - 60 workdays
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1200 pieces every month

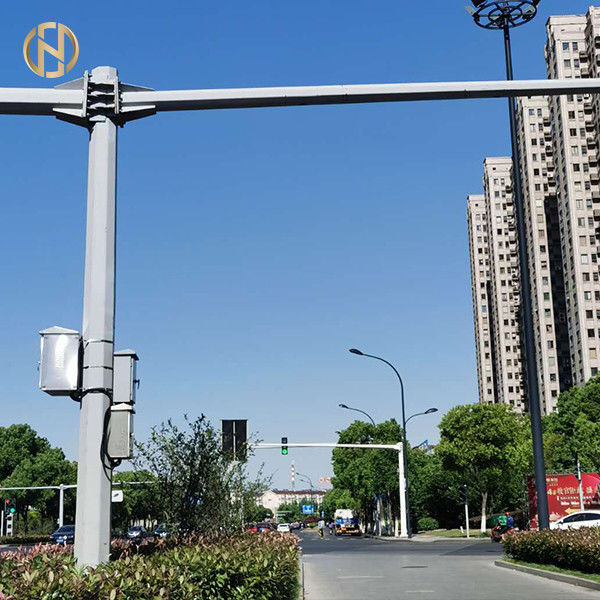

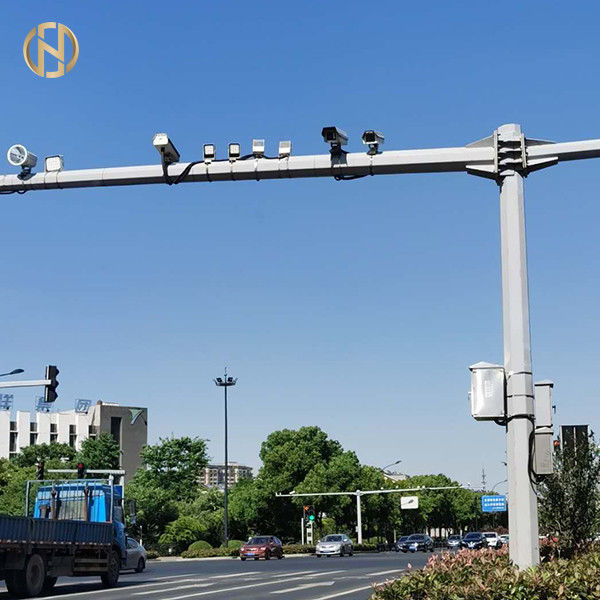

Anti Seismic Design CCTV Camera Pole Steel Surveillance Camera Pole

Product Description


Hot Sale High Quality Galvanized CCTV Camera Pole Price,Steel Camera Pole

CCTV camera pole is an important aspect of any traffic control system. A dependable and sturdy pole is required to support these traffic signs.

At Futao Metal, we produce various types of traffic signal poles including octagonal, cylindrical, and conical shaped poles.
Going one step further, our poles can be designed to have multiple mounting arms if required.
All CCTV camera poles shall consist of a single vertical pole, connecting flanges, mounting arms, and anchor bolts.
Straight or seamless steel pipes shall be used for the vertical pole and mounting arms.
The connection ends of the main pole and the mounting arm shall adopt the same material used by the mounting arms and will be protected by stiffeners.


The vertical pole and its base plate will be connected by a flange and anchor bolts.
Horizontal mounting arms are connected to the main vertical pole using a flange and further reinforced using stiffeners.

Shape of pole


Round conical; Octagonal tapered; Straight square; Tubular stepped;

Shafts are made of steel sheet folded into required shape and welded longitudinally by automaticarc welding machine


Brackets/ Arm



Single or double brackets/ arms are in the shape and dimension as per customer's requirement.


Length Within 14m once forming without slip joint
Wall thickness 2.5mm-20mm
Application Outdoor illumination, Road illumination, Street illumination
Welding It has past flaw testing, internal and external double welding makes the welding beautiful in shape. It confirms with the international welding standard of CWB.




Jointing poles with insert mode, innerflange mode, face to face joint mode
Galvanizing Hot dip galvanization with thickness of 80-100µm average in accordance with Chinese standardGB/T 13912-2002 or American standard ASTM A123, IS: 2626-1985.


Powder coating



Pure polyester powder painting, color is optional according to

RAL Color stardand.

Temperature range -35 °C~+45 °C
Wind Resistance Aganist wind pressure of 160Km/h


According to GB/T 1591-1994

Base plate mounted Base plate is square, octagonal or round in shape with slotted holes for anchor bolt and dimension as per customer’s requirement.
Ground mounted The length buried underground as per customer’s requirement
Quality Control

We control the quality according to the flow of ISO9001-2008. Quality is employed at every stage of production to ensure the product compliance to the specifications/standards. Careful inspection is carried out by well trained inspection engineers at every defined stage from raw material to finished product and delivery. Prototype assembly of towers is carried out in the plant.

Certificates ISO9001-2008, SGS Audited Supplier, The AAA grade certificate of goodwill


Process of Production

Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration → Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging

Anti Seismic Design CCTV Camera Pole  Steel Surveillance Camera Pole 0

 Packaging & Shipping

We pack the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation.
Packaging can also be done according to clients’ requirements.
We can ship the poles by sea or air or express or trains and we have our regular shipping agent.


Anti Seismic Design CCTV Camera Pole  Steel Surveillance Camera Pole 1


Trade terms:

1. Price Term: EXW,FOB,CFR,CIF,FCA or others.

The price includes pole shaft, base plate, cross arm and anchor part.
2. Payment: 30%T/T in advance,70%T/T or L/C at sight before shipment. Other payment way can be negotiated.
3. Package: Plastic woven bag or old blanket or according to clients requirement.
4. Delivery time: within 30-60 workdays after receiving deposit.

Q1. How can I get a price of needed pole?

A: 1. Please provide exact dimensions such as height, pole shaft material type and thickness, top and bottom diameters. We can then give you an accurate quotation based on your specifications.
2. You can send us a detail and assembly drawing; we can then provide you with an accurate quotation based on the drawing.

Q2. I am a small wholesaler; do you accept a small order?
A: It's not a problem if you are a small wholesaler; we could accept orders of various quantities.
Q3. I am a designer; Can you help me to produce the sample which we designed?
A: Our mission is to help our customers be successful. We are more than happy to help you solve any problems that you may have.
Q4: We want be your agent for our area. How do I apply for this?
A: Please send your proposal and your company profile.It will be better if we can know the estimated purchase quantity of every year.
Q5. Tell me about your company?
We have been a manufacturer and exporter of all kinds of steel poles including power poles, street lighting poles, telecommunications poles and other steel based products since 2000. Our products have been exported to many regions around the world.
Q6. Do you have some special policies for Branded companies?
A: Yes, we have some special support for the company who has own brand but are also in our VIP customers list. Please send us a copy of your sales data so we can analyze the best course of action in supporting you for your products in your market.
Q7. Do you provide Door to Door service? Because i don't know how to deal with customs clearance.
A: We provide Door to Door service to help you reduce shipping time and costs. This is because we have additional discounts with the shipping companies as we have done many shipments in the past. This in turn will save you lots of time and money.
Q8. Could you please recommand some poles to us? Because I don't know how to choose a pole.
A:   Yes,we can recommand some styles according to your target price or other information.

Our Service

1. We will reply all your enquiries in 12 working hours.
2. Experienced staff members will answer all your questions in fluent English.
3. We have experienced and professional design team.
4. Exclusive and unique solutions can be provided to our customers by our well-trained and professional engineers and staff.
5. Special discount or comission and protection of sales are provided to our distributors.
6. State of the Art Factory with highly specialized machinery focused on producing various types of steel poles with over 20 years of experience and expertise to deliver you quality products that you can trust at competitive prices.
7. We have our own inspection team to control the quality.
Welcome to our factory!
