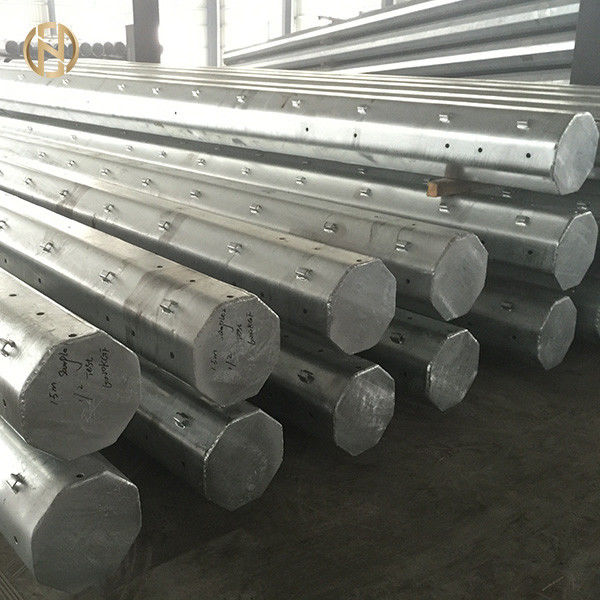

Buried Type Metal Utility Poles GR50 Octagonal Shape 15KV 33KV 14m
Product Description
15kv 33kv, 14m metal power pole, metal post buried type GR50 octagonal pole thickness 4.5mm
To design in accordance with PLS software, we will require the following design parameters:
Product Specifications
| Item Description: | 14M STEEL POLES,500daN, SF=2.0, class 3 | ||||||||
| Customer: | gambia | ||||||||
| End User: | |||||||||
| A.PROOF TESTS | Measured | Drawing Design | Allowed tolarance | Result | |||||
| Top Diameter (mm): | AVE=190 | 190 | 190 | PASSED | |||||
| Btm Diameter (mm): | AVE=312 | 311 | 311 | ||||||
| Galv Wall Thickness(mm): | AVE=4.22 | >=4 | >=4 | ||||||
| Length of Each section (mm): | 14120 | 14000 | 13400-14600 | ||||||
| Galvanized thickness (um ): | AVE=99 | ASTM 123 | Ave>=86Um | ||||||
| Holes size and distance | Passed. | drawing | No. | ||||||
| Nameplate | Y. | Y | Y/N | ||||||
| Grounding nuts | Y. | Y | Y/N | ||||||
| Bearing Plate | Y. | Y | Y/N | ||||||
| straightness of poles | 2cm allowed. | Y | 0.5% of length | ||||||
| Matercial Test | YS(Mpa) | 499 | >=460 | >=460 | |||||
| TS (Mpa) | 578 | >=550 | >=550 | ||||||
| EL (%) | 23 | >=15% | |||||||
Packaging & Shipping
We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.
FAQ
- The price stated includes pole shaft, base plate, cross arms, anchor bolts and any additional accessories required.
- Shipping Port: Shanghai Port. For FOB, CFR or CIF quotes, please specify which exact shipping model you require, then inform us of the quantity of your order so that we can accurately calculate the local transport charges and sea freight.
Our Service
1. All enquiries are replied within 24 working hours.
2. Customized designs are welcome. UEM & UBM are welcome.
3. Not sure about where to start? Have questions regarding any our products or design? Our well-trained and professional engineers and staff are here to help.
4. Special discount and protection of sales are provided to our distributors.
5. State of the Art Factory with highly specialized machinery focused on producing various types of steel poles with over 20 years of experience and expertise to deliver you quality products that you can trust at competitive prices.

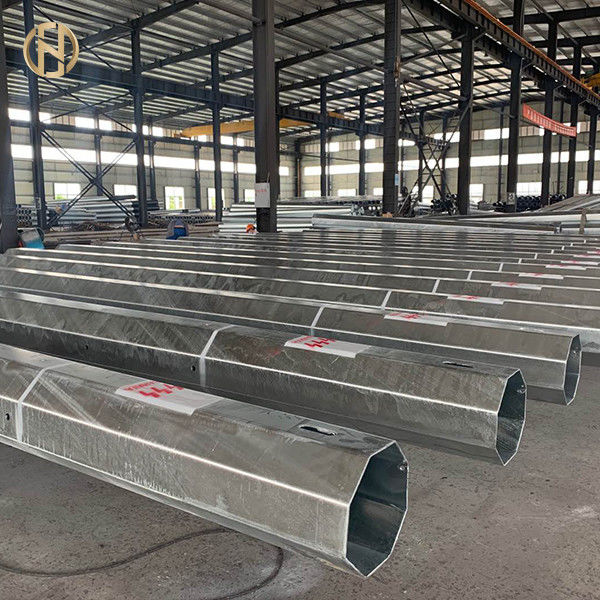

Weclome to our factory!
Our products are sold all over the world, you can rest assured.
