Description of products

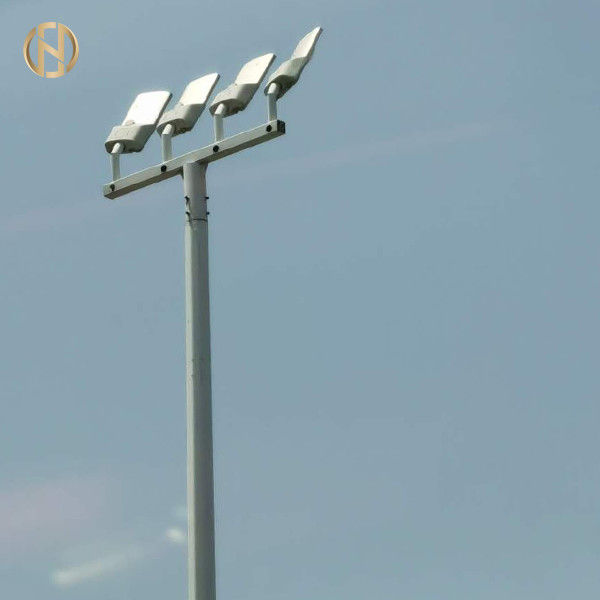

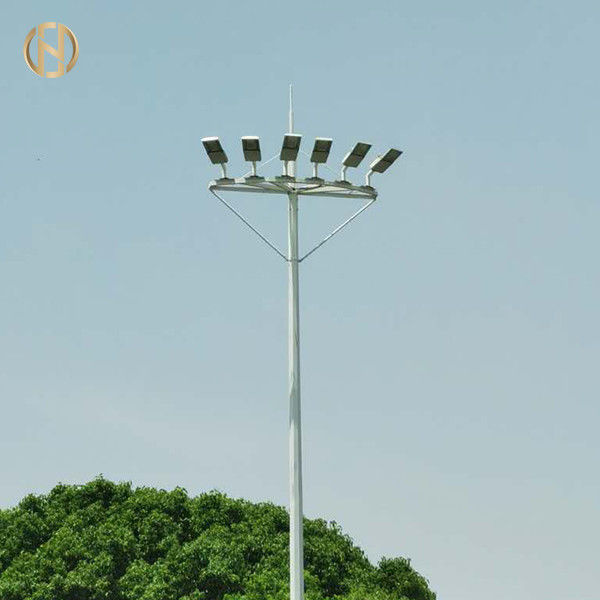

High Mast Lighting Poles can generally be divided into either a lifting type or non-lifting type. The height of the lifting type pole is normally more than 18 meters and allows for the raising and lowering of the lighting fixture. This allows for a safer and more convenient process of maintenance. The lighting fixture can be lowered up to 2.5 meters from the ground and the lowering process is controlled via a manual remote control. Our high mast poles are available in a wide variety of configurations and finishes to meet your specific design requirements. This includes the shape and lighting fixtures depending on lighting requirements of the surrounding area.
Product Specification
l Product Name: 95FT Powder Coated High Mast Pole,High Mast Column Export To Saudi Arabia
l Light Source: High Pressure Sodium Lamp and LED flood light.
l Pole Height: 15 to 40 meters (designed and manufactured according to customer requirements).
l Lighting Type: Circular Light Plate / Irregular Light Plate, Wide-Angled Lights
l Pole Shape: Conical, Polygonal, Round
l Lifting System: Automatic/Manual Lifting System as per client’s requirement
Product name | 95FT Powder Coated High Mast Pole,High Mast Column Export To Saudi Arabia |
Material | ASTM GR65,GR50,Q460 A572,S355,Q355 |
Design Wind | 160KM/H or depending on clients’ request |
Lamp Crown Shape | Single/Round Face Illuminated |
Pole’s shape | Conical, Polygonal, Polygonal or round |
Application | Areas that require a large area of lighting (airports, shipping terminals, stadiums, heavy-industry zones) |
Height | 15-40M composed of two or three sections |
Pole Shaft Thickness | 6mm,8mm,10mm |
Poles Stiffener Size | Accordance with Flange size |
Overlap(Slip Joint) Length Calculation | Upper Section of the bottom diameter more than 1.5 times |
Pole Shaft Surface treatment | Hot Dip Galvanization, Electrostatic Spray(Powder Coated Spray RAL Color Stardand, Clients Request) |
Pole Components | Lighting Fixture, Lamps, Pole, Power Cabinet,Power Cable |
Power Cabinet | Power Cabinet installed at inside door of high mast,or outdoor in separately. |
Power Cable Length Using | Power Cable Length using depending on the High Mast Pole height and Lamps Wattage/Quantity. |
Lamp Fixture Design | According to lighting requirements of the surrounding area |
Lamp Fixture | LED,HID,HPS Etc |
Lamp Wattage | LED:200W,250W,400W,600W,800W,1000W Etc |
HID:1000W,1800W,2000W Etc | |
Pole Shaft Galvanization Thickness | 80-100 microns on average according to BS EN ISO1461 standards |
Joint Type(Connection method) | Slip joint by upper section insert into lower section |
Flange connection to flange(outer flange/inner flange) | |
Climbing Ladder | Inner Climbing Ladder |
Outer Climbing Ladder | |
Minimum yield strength | 355 Mpa |
Minimum ultimate tensile strength | 490 Mpa |
Max ultimate tensile strength | 620 Mpa |
Length of per section | Within 14m once forming without slip joint |
Welding Standard | We has past flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) D 1.1 |
Welds slags removing | Burrs or sharp edges shall be removed,all welds shall be cleaned mechanically against slag and spatters before hot dip galvanizing. |
Process of Production
Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding →
Hole Drilling → Calibration → Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging
Product Details Testing
Packaging & Shipping
We pack the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may
occur during transportation.
Packaging can also be done according to clients’ requirements.
We can ship the poles by sea or air or express or trains and we have our regular shipping agent.
Export Market
Asia-Pacific, Central & South America,North America, Europe, Middle East, Africa
FAQ
Trade terms:
1. Price Term: EXW,FOB,CFR,CIF,FCA or others.
The price includes pole shaft, base plate, cross arm and anchor part.
2. MOQ: 1 sets.
3. Payment: 30%T/T in advance,70%T/T or L/C at sight before shipment. Other payment way can be negotiated.
4. Package: Plastic woven bag or old blanket or according to clients requirement.
5. Delivery time: within 30-60 workdays after receiving deposit.
Our Service
Q1. Why choose us? |
A: We offer high quality products at competitive prices. Furthermore, we allow for flexible payment terms. |
Q2. How do you ship the goods and how long does it take to arrive? |
A: We ship through the Shanghai port and it will take 2 weeks on average from the date of order. |
Q3. How do I place an order for High Mast Lighting Pole? |
A: Please provide specific details and requirements to us and we will proceed to give you an accurate price quotation. |
Q4. Is it OK to print my logo on Led Light product? |
A: Yes. Please inform us formally before our production begins and confirm the design first based on our sample. |
Q5. How do I deal with faulty components? |
A: Our products go through a rigorous quality control phase to prevent any defects or faulty components. However, during the guarantee period, we will send new lights for smaller quantities. For defective batch products, we will repair them and resend them to you or discuss an appropriate solution with you depending on the situation. |
1. We will reply all your enquiries in 12 working hours.
2. Experienced staff members will answer all your questions in fluent English.
3. We have experienced and professional design team. UEM & UBM are welcome.
4. Exclusive and unique solutions can be provided to our customers by our well-trained and professional engineers and staff.
5. Special discount or comission and protection of sales are provided to our distributors.
6. State of the Art Factory with highly specialized machinery focused on producing various types of steel poles with over 20 years of experience and expertise to deliver you quality products that you can trust at competitive prices.
7. We have our own inspection team to control the quality.
Welcome to our factory!
