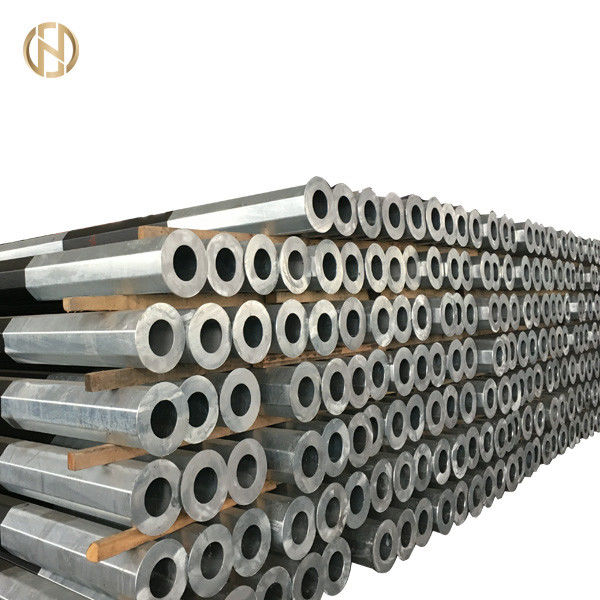

35FT 5KN Safety Factor 2.0 Metal Power Pole Electric Power Pole 500daN 10.5M
Product Description
The products above are custom poles meant for 35FT Steel Metal power poles, 5KN ,Sf 2.0 ,500daN,10.5M details base on drawing
To design in accordance with PLS software, we will require the following design parameters:
Product Specifications
| Type | 35FT Steel Metal power poles, 5KN ,Sf 2.0 ,500daN,10.5M details base on drawing |
| Suitable Uses | Power Distribution 11 to 15kv |
| Shape( Cross section) |

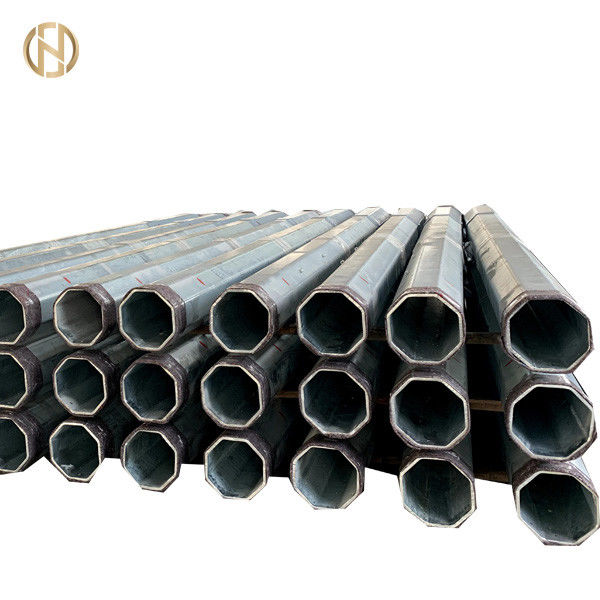

Tubular, Octagonal ,6side, 12side |
| Power grade | 11kv ,15kv |
| No of Section | max 3 section |
| Length (m) | 10.5m 35ft |
| Foundation | Direct burial- 1.45 to 1.6m |
| Working Load | 500daN SF 2.0 |
| Breaking Load | 500daN- 5.0KN , |
| Safety Factor | 2.0 Safety factor |
| Material | ASTM 572 GR50 or equal ,ASTM 572 GR65 or equal. |
| Minimum Yield Strength | 355 mpa / 450mpa |
| Minimum Ultimate Tensile Strength | 450mpa/550mpa |
| Max Ultimate Tensile Strength | |
| EL % | >=15%, >=18% |
| Top diameter(mm) | 128/129/130 |
| Bottom diameter(mm) | 301/302/303 |
| Min Thickness(mm) | >=3.5mm , |
| Tolerance of Dimensions | +- 1% |
| Engraving | Name plate through rivet or glue ,engraving ,embossment as per customers’ requirements |
| Surface Treatment |
Hot Dip Galvanization according to ASTM A123 standards
|
| Joint of Poles |
Insert Mode, Inner Flange Mode, Face to Face Joint Mode.
|
| Loading Conditions | |
|
0-2 degree |
|
32m/s 123km./h |
|
1.2 |
|
10% of overall pole length |
| Welding |
Internal and external double welding process produces a seamless surface Welding Standard :AWS ( American Welding Society ) D 1.1 |
Packaging & Shipping
We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.
Our Service
1. All enquiries are replied within 24 working hours.
2. Customized designs are welcome. UEM & UBM are welcome.
3. Not sure about where to start? Have questions regarding any our products or design? Our well-trained and professional engineers and staff are here to help.
4. Special discount and protection of sales are provided to our distributors.
5. State of the Art Factory with highly specialized machinery focused on producing various types of steel poles with over 20 years of experience and expertise to deliver you quality products that you can trust at competitive prices.
