Football Fileds High Mast Light Pole 20M 30M 80-100μM Galvanization Thickness

Football Fileds High Mast Light Pole 20M 30M 80-100μM Galvanization Thickness

  • High Light

    high mast light pole


    flood light poles

  • Material
    Q355, Q420, Q460, ASTM A527 A36, GR50, GR65,
  • Products Name
    20M 30M Octadecagon High Mast Pole Installed At Football Fileds
  • Shape
    Tubular,Octadecagon Shape
  • Surface Treatment
    Hot Dip Galvanized / Powder Coated / Painting
  • Connection Method
    Overlap/Flange Connection
  • Welding
    According To AWS D 1.1, CO2
  • Wall Thickness
  • Each Section Length
    10800mm,(2 Or 3 Sections)
  • Design Wind
  • Deflection
  • Luminaries Installation Method
    Bracket And Bolts
  • Place of Origin
  • Brand Name
  • Certification
    ISO 9001 2015
  • Model Number
  • Minimum Order Quantity
  • Price
    1000-10000USD Per set
  • Packaging Details
    Bubble Wrap, Mat &Straw Bale or as per client’s request
  • Delivery Time
  • Payment Terms
    L/C, T/T
  • Supply Ability
    3000 ton per month

Football Fileds High Mast Light Pole 20M 30M 80-100μM Galvanization Thickness

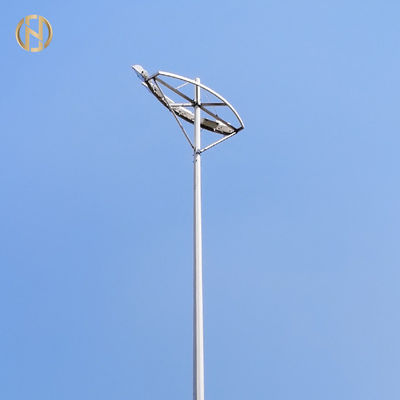

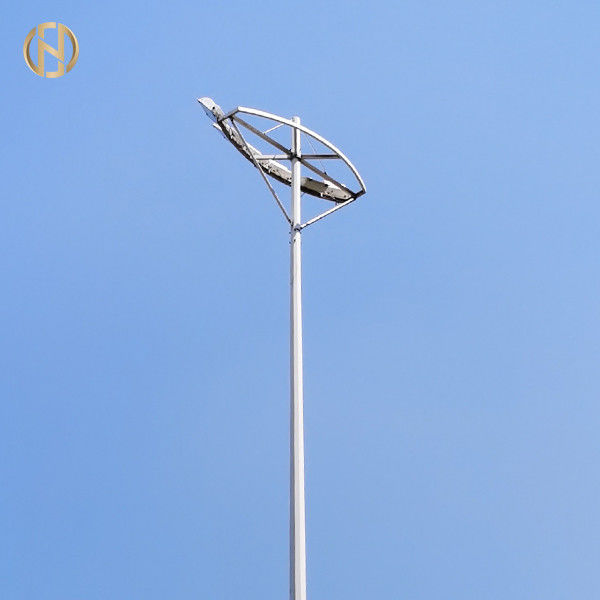

                      20M 30M Octadecagon High Mast Pole installed at Football Fileds
Description of products

High Mast Lighting Poles can generally be divided into either a lifting type or non-lifting type. The height of the lifting type pole is normally more than 18 meters and allows for the raising and lowering of the lighting fixture. This allows for a safer and more convenient process of maintenance. The lighting fixture can be lowered up to 2.5 meters from the ground and the lowering process is controlled via a manual remote control. Our high mast poles are available in a wide variety of configurations and finishes to meet your specific design requirements. This includes the shape and lighting fixtures depending on lighting requirements of the surrounding area.
products specification details


l Light Source: High Pressure Sodium Lamp and LED flood light.

l Pole Height: 15 to 40 meters (designed and manufactured according to customer requirements).

l Lighting Type: Circular Light Plate / Irregular Light Plate, Wide-Angled Lights

l Pole Shape: Conical, Polygonal, Round

l Lifting System: Automatic/Manual Lifting System as per client’s requirement

  • Input Voltage(V): AC85-265,DC3.2V/12V/24V
  • Lamp Luminous Flux(lm): Customized
  • CRI (Ra>):75
  • Color Temperature(CCT): Cool White, Pure White, Warm White
  • Working Lifetime (Hours):50000
  • Lamp Body Material: Aluminum
  • IP Rating: IP65
  • Certification: CE
  • Application: Areas that require a large area of lighting (airports, shipping terminals, stadiums, heavy-industry zones)
  • Working Temperature(℃): -40 - 70
  • Light Source: Fluorescent, Halogen Bulbs, Incandescent Bulbs, LED
  • Warranty(Year): 2 years
  • Pole Shaft Thickness: 2.5mm-14mm
  • Surface Treatment: Hot Dip Galvanization, Electrostatic Spray
  • Galvanization Thickness: 80-100μm
MaterialASTM GR65,GR50,Q460 A572,S355,Q345/Q235
Design Wind140KM/H
Lamp Crown ShapeSingle Face illuminated and 12PCS Luminaries installing.
Pole’s shapeConical, Polygonal, Round
ApplicationAreas that require a large area of lighting (airports, shipping terminals, stadiums, heavy-industry zones)
Height15-40M composed of two or three sections
Pole Shaft Thickness5mm,6mm,8mm,10mm,12mm
Surface treatmentHot Dip Galvanization, Electrostatic Spray
ComponentsLighting Fixture, Lamps, Pole, Power Cabinet
Power CabinetPower Cabinet installed at inside door of high mast,or outdoor in separately.
Lamp Fixture DesignAccording to lighting requirements of the surrounding area
Lamp FixtureLED,HID,HPS Etc
Galvanization Thickness80-100 microns on average according to BS EN ISO1461 standards
Joint Type(Connection method)Slip joint by upper section insert into lower section
Flange connection to flange(outer flange/inner flange)
Climbing LadderInner Climbing Ladder
Outer Climbing Ladder
Minimum yield strength355 Mpa
Minimum ultimate tensile strength490 Mpa
Max ultimate tensile strength620 Mpa
Length of per sectionWithin 14m once forming without slip joint
WeldingWe has past flaw testing.Internal and external double welding makes the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1
Welds slags removingBurrs or sharp edges shall be removed,all welds shall be cleaned mechanically against slag and spatters before hot dip galvanizing.

Football Fileds High Mast Light Pole 20M 30M 80-100μM Galvanization Thickness 0
Production Process

Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding →
Hole Drilling → Calibration → Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging
Football Fileds High Mast Light Pole 20M 30M 80-100μM Galvanization Thickness 1

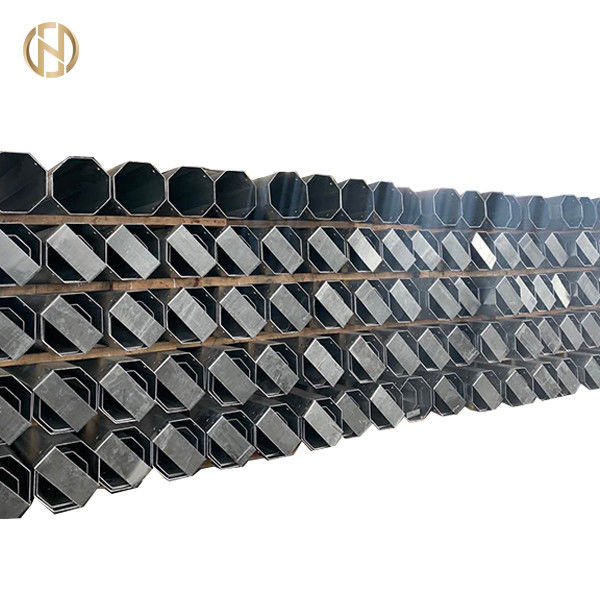

Product Details
Football Fileds High Mast Light Pole 20M 30M 80-100μM Galvanization Thickness 2

Football Fileds High Mast Light Pole 20M 30M 80-100μM Galvanization Thickness 3
Packaging & Shipping

We pack the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may
occur during transportation.
Packaging can also be done according to clients’ requirements.
We can ship the poles by sea or air or express or trains and we have our regular shipping agent.
Export Market

Asia-Pacific, Central & South America,North America, Europe, Middle East, Africa

Trade terms:
1. Price Term: EXW,FOB,CFR,CIF,FCA or others.
The price includes pole shaft, base plate, cross arm and anchor part.
2. MOQ: 1 sets.
3. Payment: 30%T/T in advance,70%T/T or L/C at sight before shipment. Other payment way can be negotiated.
4. Package: Plastic woven bag or old blanket or according to clients requirement.
5. Delivery time: within 30-60 workdays after receiving deposit.
