Octadecagon High Mast Street Light Pole Hot Dip Galvanized 20M 30M 36M

Octadecagon High Mast Street Light Pole Hot Dip Galvanized 20M 30M 36M

  • Highlight

    high mast tower

    ,

    high mast light pole

  • Material
    Q355, Q420, Q460, ASTM A527 A36, GR50, GR65,
  • Shape
    Tubular,Octadecagon Shape
  • Surface Treatment
    Hot Dip Galvanized / Powder Coated / Painting
  • Connection Method
    Overlap/Flange Connection
  • Welding
    According To AWS D 1.1, CO2
  • Wall Thickness
    3-25mm
  • Each Section Length
    No More Than 14m
  • Products Name
    20M, 30M, 36M Octadecagon Hot Dip Galvanized High Mast Poles Export To Argentina
  • Design Wind
    145KM/H
  • Luminaries Installation Method
    Bracket And Bolts
  • Place of Origin
    Jiangsu,China
  • Brand Name
    Futao
  • Certification
    ISO 9001 2015
  • Model Number
    FTGG
  • Minimum Order Quantity
    1
  • Price
    1000-10000USD Per set
  • Packaging Details
    Bubble Wrap, Mat &Straw Bale or as per client’s request
  • Delivery Time
    30days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    3000 ton per month

Octadecagon High Mast Street Light Pole Hot Dip Galvanized 20M 30M 36M

Octadecagon High Mast Street Light Pole Hot Dip Galvanized 20M 30M 36M


Description of products


These are high mast lighting poles designed for export to Argentinia. Please contact customer support to get a price quotation today!


Prroduct Details

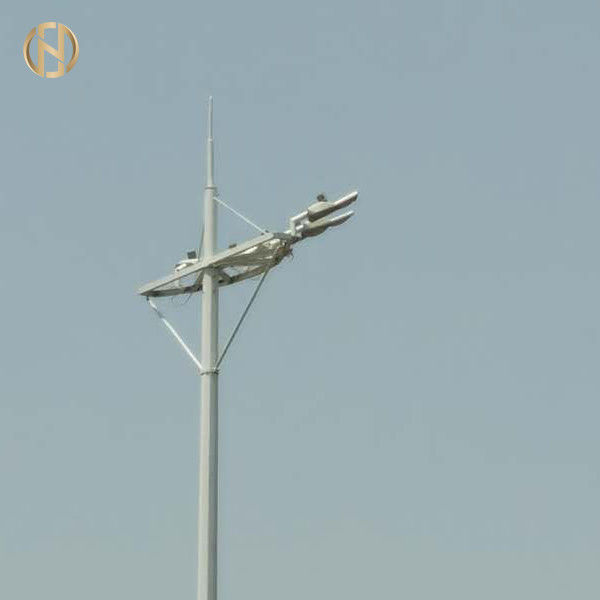

These high mast lighting poles will use a high pressue sodium lamp and led flood light to iluminate large areas of space. Perfectly suited for aeas such as stadiums, football fields, highways, airport runways and so forth. Poles ae 15 to 40 meters in height with a galvanization thickness of 80-100μm. Pole shape can be designed as per clients' requirements. Standard pole shapes include conical, polygonal, and round. Furthermore, the lifting mechanism can either be automatic or manual.



Material ASTM GR65,GR50,Q460 A572,S355,Q345/Q235
Design Wind 145KM/H or depending on clients’ request
Lamp Crown Shape Single Face illuminated
Pole’s shape Conical, Polygonal, Round
Application Areas that require a large area of lighting (airports, shipping terminals, stadiums, heavy-industry zones)
Height 15-40M composed of two or three sections
Pole Shaft Thickness 5mm,6mm,8mm,10mm,12mm
Surface treatment Hot Dip Galvanization, Electrostatic Spray
Components Lighting Fixture, Lamps, Pole, Power Cabinet
Power Cabinet Power Cabinet installed at inside door of high mast,or outdoor in separately.
Lamp Fixture Design According to lighting requirements of the surrounding area
Lamp Fixture LED,HID,HPS Etc
Galvanization Thickness 80-100 microns on average according to BS EN ISO1461 standards
Joint Type(Connection method) Slip joint by upper section insert into lower section
Flange connection to flange(outer flange/inner flange)
Climbing Ladder Inner Climbing Ladder
Outer Climbing Ladder
Minimum yield strength 355 Mpa
Minimum ultimate tensile strength 490 Mpa
Max ultimate tensile strength 620 Mpa
Length of per section Within 14m once forming without slip joint
Welding We has past flaw testing.Internal and external double welding makes the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1
Welds slags removing Burrs or sharp edges shall be removed,all welds shall be cleaned mechanically against slag and spatters before hot dip galvanizing.

Octadecagon High Mast Street Light Pole Hot Dip Galvanized 20M 30M 36M 0

Production Process


Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding →
Hole Drilling → Calibration → Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging
Octadecagon High Mast Street Light Pole Hot Dip Galvanized 20M 30M 36M 1
Product Details
Octadecagon High Mast Street Light Pole Hot Dip Galvanized 20M 30M 36M 2
Testing


Octadecagon High Mast Street Light Pole Hot Dip Galvanized 20M 30M 36M 3

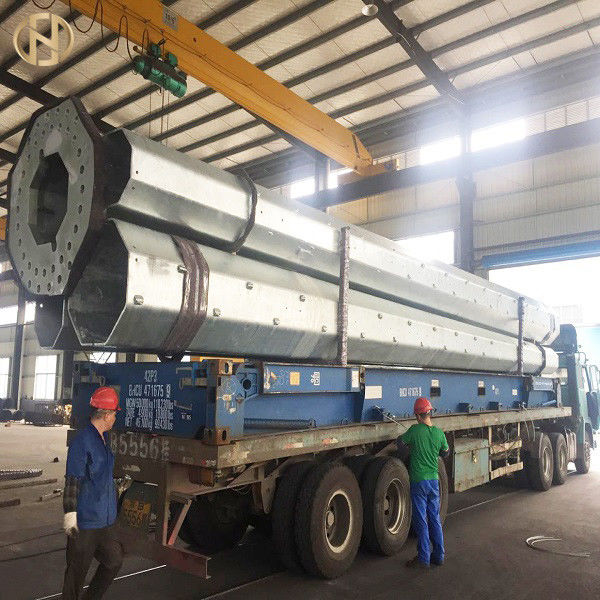

Packaging & Shipping


All products are packed nicely and safely as to prevent damage to the outside surface of our precious products.


FAQ


Trade terms:
1. Price Term: EXW,FOB,CFR,CIF,FCA or others.
The price includes pole shaft, base plate, cross arm and anchor part.
2. MOQ: 1 sets.
3. Payment: 30%T/T in advance,70%T/T or L/C at sight before shipment. Other payment way can be negotiated.
4. Package: Plastic woven bag or old blanket or according to clients requirement.
5. Delivery time: within 30-60 workdays after receiving deposit.
