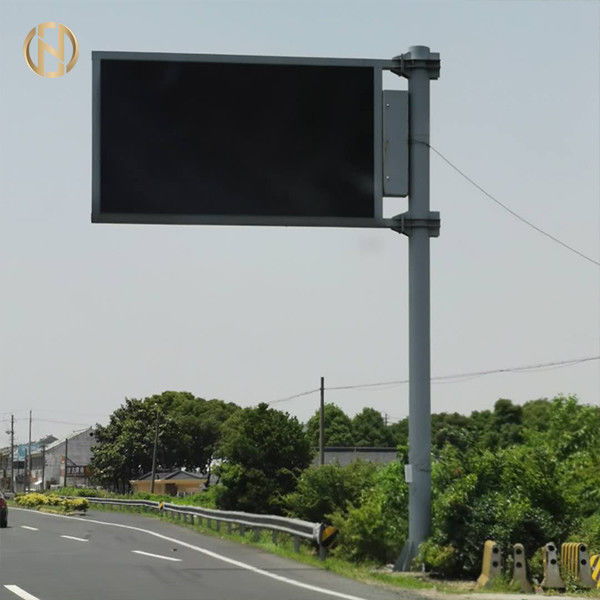

New Style Galvanized Road Sign Pole,Sign Pole,Traffic Steel Signal Post
Traffic signal bar is an important part of traffic signal and an important part of the frame of traffic signal.Signal lamp poles are divided into octagonal signal lamp poles, cylindrical signal lamp poles and cone signal lamp poles according to the structure.According to the structure can be divided into single cantilever signal lamp pole, double cantilever signal lamp pole, frame signal lamp pole, integrated signal lamp pole. Monitoring pole, monitoring pole, monitoring support, camera support, camera pole, camera pole, traffic signal pole, traffic sign pole, traffic indicator pole.
Basic structure: road traffic signal poles and sign poles shall be composed of vertical poles, connection flanges, modeling arms, mounting flanges and embedded steel structures.
Straight or seamless steel pipe shall be used for the vertical pole or transverse arm;The connection ends of the vertical pole and the transverse arm shall adopt the same steel pipe as the transverse arm and be protected by welding reinforcing plate.The vertical pole and foundation are connected by flange and embedded bolt, and the welded reinforced plate is protected.The connection mode between the transverse arm and the end of the pole is flange connection, and the welding reinforcing plate protection is carried out.
All welds of the vertical pole and its main components shall meet the standard requirements, and the surface shall be smooth and smooth, and the welding shall be smooth, firm and reliable, without defects such as porosity, welding slag, virtual welding and leakage welding.
Specifications
| Material | Steel |
| Height | 3-20M |
| Pole Shape | Conical, Polygonal, Round or Octagonal |
| Brackets | according to the request from client |
| Welding | Welding conforms to international welding standard of CWB |
| Base Plate Mounting | provided with anchor bolts. |
| Section | Section: octagonal or taper round or others |
| Galvanization | Hot Dip Galvanization with and average thickness of 80-100µm |
| Powder Coating | Pure Polyester Powder Painting, coloring optional,RAL color number |
| Maximum Wind Resistance | 160Km/h |
Process of Production
Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration → Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging
Product Details
Testing
Packaging & Shipping
We pack the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation.
Packaging can also be done according to clients’ requirements.
We can ship the poles by sea or air or express or trains and we have our regular shipping agent.
Welcome to our factory!
Our products are sold all over the world, you can rest assured.
