12M 14M Electrical power pole ,tubular pole, metal post,metal poles , power pole electrical Dominica market
Product Description
Our electrical poles are specifically designed for 12M 14M Electrical power pole ,tubular pole, metal post,metal poles , power pole electrical power transmission lines for Panama, We have successfully delivered our products to satisfied customers all around the world including Southeast Asia, the Middle East, and Europe. In addition, we can produce various types of poles depending on its usage such as suspension, tension and terminal/dead angle poles.
Specific Details
Product Name | 12M 14M Electrical power pole ,tubular pole, metal post,metal poles , MCH-800-12 |
|---|---|
Type | Suspension Pole 33KV |
Height | 12M 14M |
Thickness | >=4MM |
Shape | Polygonal or Conical 8Side |
Surface Treatment | Hot Dip Galvanized according to ASTM A123 standard or any other standards according to clients' request |
Color | Any, According to clients' request |
Ground Mounted | build type |
Voltage | 33kv |
Material | Q235, Q345, Q420, Q460, Gr 50, Gr60, SS400, etc. |
Welding | Welding complies with AWS D1.1 standard |
Life Expectancy | More than 25 years depending on various environmental factors |
Qualification | ISO9001-2015, AAA Credit Rating |
Wind Resistance | 160 km/h |
Earthquake Resistance | Against earthquake of grade 8 |
1. Material test result
| Measured | Standard | Passed | |||||
| Yield Strength, MPa | 755/725 | 450 min | Passed | |||||
| Tensile Strength, MPa | 810/785 | 550 min | ||||||
| Elongation, % | 20/20 | 15% min | ||||||
| C2. Chemical Test | Measured | Standard | Remarks | |||||
| Carbon (C), % | 0.063 / 0.064 / 0.065 (AVE = 0.064) | 0.23 max | Passed | |||||
| Manganese (Mn), % | 1.52 / 1.52 / 1.51 (AVE = 1.517) | 0.5 - 1.65 | ||||||
| Phosphorus (P), % | 0.011 / 0.013 / 0.012 (AVE = 0.012) | 0.04 max | ||||||
| Sulfur (S), % | 0.0051 / 0.006 / 0.0053 (AVE = 0.006) | 0.05 max | ||||||
| Silicon (Si), % | 0.17 / 0.17 / 0.171 (AVE = 0.171) | 0.04 - 0.06 / 0.12 - 0.25 | ||||||
| Copper (Cu), % | 0.224 / 0.224 / 0.222 (AVE = 0.224) | 0.20 min | ||||||
| Nickel (Ni), % | -- | |||||||
| Chromium (Cr), % | -- | |||||||
| Niobium (Nb), % | -- | |||||||
| Aluminum (Al), % | -- | |||||||
| Columbium (Co), % | -- | |||||||
| Vanadium (V), % | -- | |||||||
| Titanium (Ti), % | -- | |||||||
Additional Details
Design Code: American Standard ASCE/SEI 48-11
Design Software: PLS-POLES
Export Market Coverage: Asia-Pacific, Central & South America, Europe, Middle East, Africa
Testing Process: Loading Tests may be conducted on factory site if required
Process of Production
Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling→ Calibration → Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging

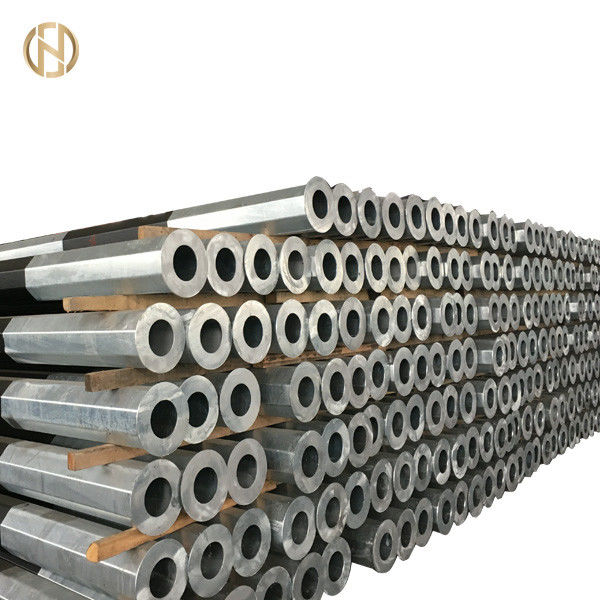

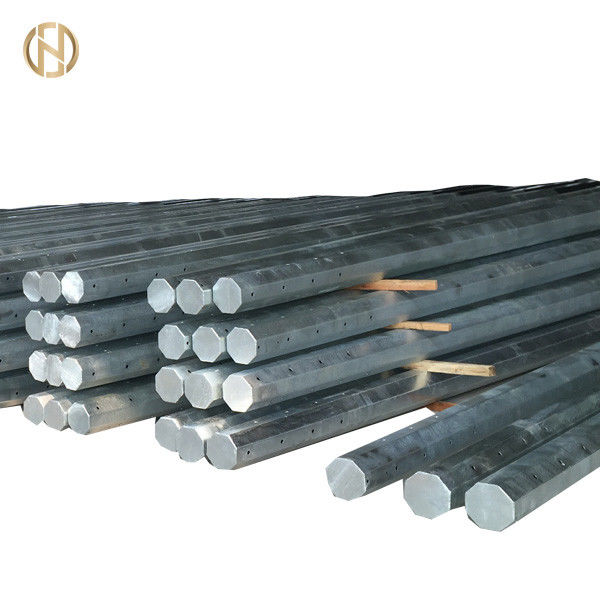

Product Details
Testing
Packaging & Shipping
We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.
Our products are sold all over the world, you can rest assured.
