14M 1250daN Tubular Steel Pole  Tubular Steel Tower Hot Dip Galvanized Surface

14M 1250daN Tubular Steel Pole Tubular Steel Tower Hot Dip Galvanized Surface

  • High Light

    steel tubular swaged pole


    octagonal steel pole

  • Height
    According To Clients' Request
  • Thickness
  • Material
    ASTM GR65, GR50, Q460, A572,
  • Shape
    Tubular Dodecagon
  • Color
    According To Clients Request
  • Surface Treatment
    Hot Dip Galvanized
  • Welding
    AWS D 1.1
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
    14M -1250daN
  • Minimum Order Quantity
    2 pieces
  • Price
    $100 - $600
  • Packaging Details
    40HC or OT wrap by mat or straw mat
  • Delivery Time
    30 - 60 workdays
  • Payment Terms
    L/C, T/T
  • Supply Ability
    6000 pieces every month

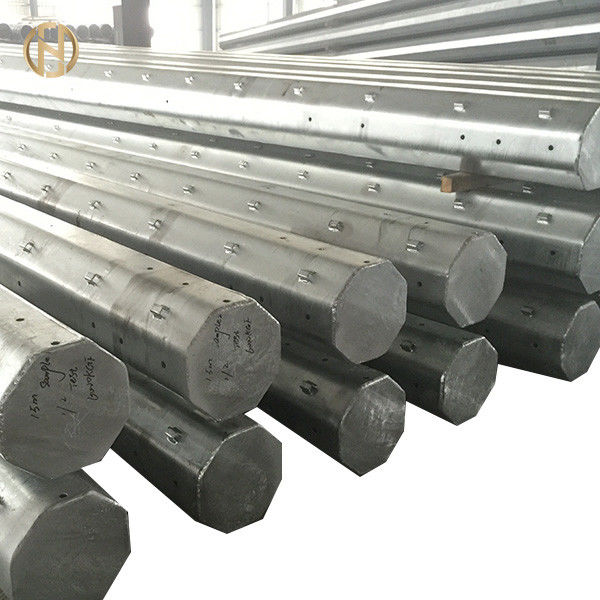

14M 1250daN Tubular Steel Pole Tubular Steel Tower Hot Dip Galvanized Surface

14M 1250daN Tubular Steel Pole  Steel Tubular Poles Tubular Steel Tower EPC West Market


Product Description

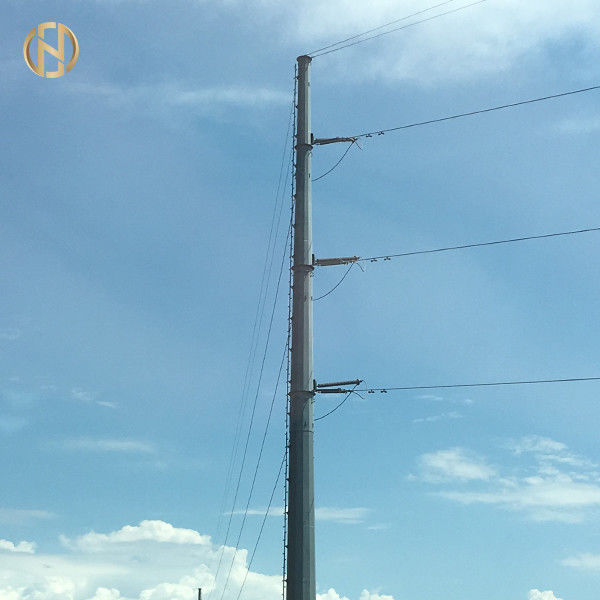

The products above are Tubular Steel Pole 14M 45FT steel utility pole 1250daN  Q460 12-side tubular steel pole
made specifically for power distribution between 14M 45FT 1250daN

  • Products are designed and manufactured according to ANSI/TIA-222-G structural standards
  • Products are hot dip galvanized according to ISO 1461/ASTM A123 standards
  • Pole shaft material : ASTM 572 GR50 or equal
  • Material code : GB/T1591-2008,GB/T700-2006
  • We possess the ISO 9001:2015 certification and are committed to giving our customers the best products and service
  • We provide additional assistance if required including supervision and supplementary components
  • We accommodate various designs according to our customers’ specifications

To design in accordance with PLS software, we will require the following design parameters:

  1. The operational wind speed of the region where the pole will be used
  2. The Antenna load and height of the pole
  3. The total height of the pole itself

Product Specifications

Name 14M 1250daN Tubular steel pole , EPC West market
Suitable Uses Power tranmission line
Shape( Cross section)

Octagonal, 8-side, 12-side

Power grade 33kv
No of Section <=3 section
Length (m) 20mm
Foundation Direct burial- 2-2.2Meter
Working Load 1250daN 12.5KN
Breaking Load 1250daN SF
Safety Factor 1.5, 1,8, 2.0
Material ASTM 572 GR65 or Q460
Minimum Yield Strength 355Mpa, 450mpa, 35.5sq.m
Minimum Ultimate Tensile Strength 450Mpa, 550Mpa 45sq.m
Max Ultimate Tensile Strength 690mpa
EL % >=15%
Top diameter(mm) 120 - 300mm
Bottom diameter(mm) 200-600mm
Min Thickness(mm) 4,4.25, 4.5, 4.75, 5mm
Tolerance of Dimensions +- 1.5%
Engraving Name plate through rivet or glue ,engraving ,embossment as per customers’ requirements
Surface Treatment Hot Dip Galvanization according to ASTM A123 standards/EN10046
Joint of Poles

Insert Mode, Inner Flange Mode, Face to Face Joint Mode.

Loading Conditions
  • Maximum line deviation
  • Design Wind Speed (Extreme Wind)
35m/s , 140km.h.
  • Circular Shape Factor
  • Maximum Deflection (Extreme Wind)
10% of overall pole length

Internal and external double welding process produces a seamless surface
Welding Standard :AWS ( American Welding Society ) D 1.1

Packaging & Shipping

We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.
Process of Production

Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration→ Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging

14M 1250daN Tubular Steel Pole  Tubular Steel Tower Hot Dip Galvanized Surface 0

Q1. How can I get a price of needed pole?

A: 1. Please provide exact dimensions such as height, pole shaft material type and thickness, top and bottom diameters. We can then give you an accurate quotation based on your specifications.
2. You can send us a detail and assembly drawing; we can then provide you with an accurate quotation based on the drawing.

Q2. I am a small wholesaler; do you accept a small order?
A: It's not a problem if you are a small wholesaler; we accept orders of various quantities.
Q3. I am a designer; Can you help me to produce the sample which we designed?
A: Our mission is to help our customers be successful. We are more than happy to help you solve any problems that you may have.
Q4: We want be your agent for our area. How do I apply for this?
A: Please send your proposal and your company profile.
Q5. Tell me about your company?
We have been a manufacturer and exporter of all kinds of steel poles including power poles, street lighting poles, telecommunications poles and other steel based products since 2000. Our products have been exported to many regions around the world.
Q6. Do you have some special policies for Branded companies?
A: Yes, we have some special support for the company who has own brand but are also in our VIP customers list. Please send us a copy of your sales data so we can analyze the best course of action in supporting you for your products in your market.
Q7. Do you provide Door to Door service? Because i don't know how to deal with customs clearance.
A: We provide Door to Door service to help you reduce shipping time and costs. This is because we have additional discounts with the shipping companies as we have done many shipments in the past. This in turn will save you lots of time and money.
