Electricity Industry Galvanised Power Pole  Galvanized Steel Electrical Pole

Electricity Industry Galvanised Power Pole Galvanized Steel Electrical Pole

  • High Light

    galvanised power pole


    galvanized steel pole


    132KV Galvanized Steel Power Pole

  • Surface Treatment
    Hot Dip Galvanized
  • Height
  • Material
    Q460 Or Equal
  • Shape
    Tubular, Polygonal And Conical
  • Power
  • Wind Resistance
    According To Clients' Request
  • Earthquake Resistance
    Against Grade Of 8
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    5 pieces
  • Price
    $150 - $1500/piece
  • Packaging Details
    40HC or OT, wrap by mat or straw mat
  • Delivery Time
    30 - 40 workdays
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1200 pieces every month

Electricity Industry Galvanised Power Pole Galvanized Steel Electrical Pole

                                           Electricity Industry Galvanised Power Pole Galvanized Steel Electrical Pole


Product Description

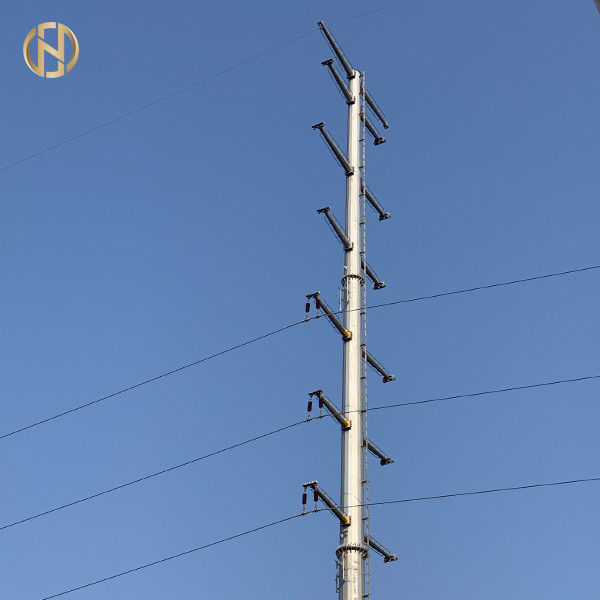

The products above are  132kv Electricity Industry Galvanized Power Transmission Electrical Steel Tubular Pole for pakistan market.

SPA, SPD,SPG Model.

  • Products are designed and manufactured according to  structural standards
  • Only our company can comply to these global manufacturing standards which gives us an edge over our competitors
  • Products are hot dip galvanized according to ISO 1461/ASTM A123 standards
  • Pole shaft material : ASTM GR65,GR50

To design in accordance with PLS software, we will require the following design parameters:

  1. The operational wind speed of the region where the pole will be used
  2. The Antenna load and height of the pole
  3. The total height of the pole itself

Product Specifications

132kv Galvanized steel pole for karachi Electric Supply Company Karachi,Pakistan.
& need of following type of poles for 132 kv & 220 kv lines;

The specification reference the following standards


ASCE/SEI 48: Design of steel transmission pole structures
BS EN ISO 1461 : Hot dip galvanized coatings on fabricate d iron and steel articles. Specification and test methods.
ASTM A123 : Standard specification for zinc (hot galvanized) coating on Iron and Steel Products
ASTM A 153/A153M : Standard specification for zinc (hot galvanized) coatings on iron and steel Hardware


Design as follows:


  Section-I Section-II Section-III Section- IV X-arms
Light angle pole 1290x14x976 1052x14x759 821x12x528 573x8x280 280x8 x130
Medium angle pole 1560x14x1228 1321x14x941 1011x12x631 680x10x300 200x8x430
Heavy angle pole 1490x18x1115 1212x16x881 959x12x626 681x10x350 130x8280


Packaging & Shipping

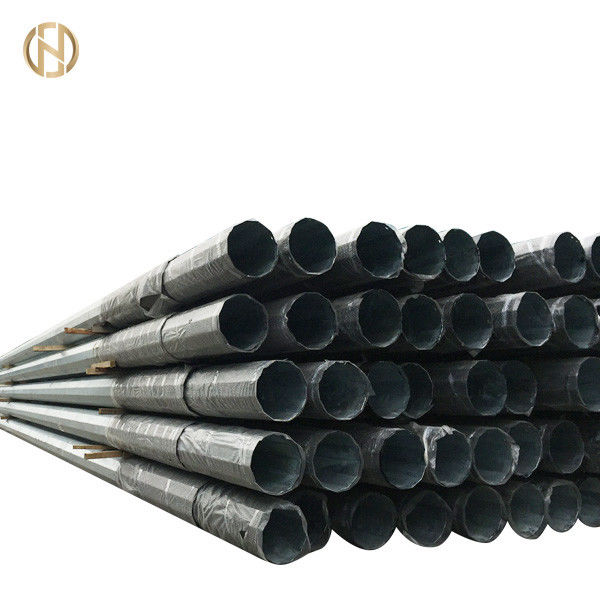

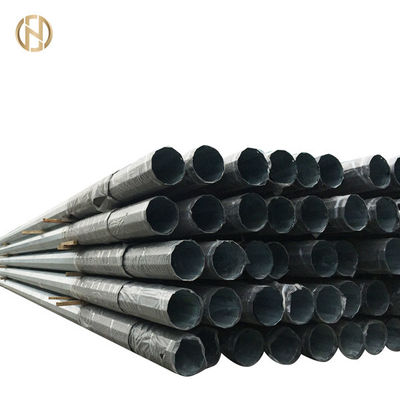

We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.


Process of Production

Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration→ Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging

Electricity Industry Galvanised Power Pole  Galvanized Steel Electrical Pole 0



Q1. How can I get a price of needed pole?

A: 1. Please provide exact dimensions such as height, pole shaft material type and thickness, top and bottom diameters. We can then give you an accurate quotation based on your specifications.

2. You can send us a detail and assembly drawing; we can then provide you with an accurate quotation based on the drawing.

Q2. I am a small wholesaler; do you accept a small order?
A: It's not a problem if you are a small wholesaler; we accept orders of various quantities.
Q3. I am a designer; Can you help me to produce the sample which we designed?
A: Our mission is to help our customers be successful. We are more than happy to help you solve any problems that you may have.
Q4: We want be your agent for our area. How do I apply for this?
A: Please send your proposal and your company profile.
Q5. Tell me about your company?
We have been a manufacturer and exporter of all kinds of steel poles including power poles, street lighting poles, telecommunications poles and other steel based products since 2000. Our products have been exported to many regions around the world.
Q6. Do you have some special policies for Branded companies?
A: Yes, we have some special support for the company who has own brand but are also in our VIP customers list. Please send us a copy of your sales data so we can analyze the best course of action in supporting you for your products in your market.
Q7. Do you provide Door to Door service? Because  I don't know how to deal with customs clearance.
A: We provide Door to Door service to help you reduce shipping time and costs. This is because we have additional discounts with the shipping companies as we have done many shipments in the past. This in turn will save you lots of time and money.


Our Service

1. We will reply all your enquiries in 24 working hours.

2. Experienced staff members will answer all your questions in fluent English.

3. Customized designs are available. UEM & UBM are welcome.

4. Exclusive and unique solutions can be provided to our customers by our well-trained and professional engineers and staff.

5. Special discount and protection of sales are provided to our distributors.

6. State of the Art Factory with highly specialized machinery focused on producing various types of steel poles with over 20 years of experience and expertise to deliver you quality products that you can trust at competitive prices.
