12M 450daN Galvanised Metal Pole Shaft Material ASTM GR65 GR50 33KV 11KV 35KV
Product Description
The products above are 12M galvanized power pole, 450daN 33KV 11KV 35KV
To design in accordance with PLS software, we will require the following design parameters:
Product Specifications
21M Galvanized steel pole for trinidad and tobago electricity commission 69kv
This using for 21m hot-dip-galvanized tubular steel pole for the construction for the electric utility’s overhead high voltage transmission lines.
The specification reference the following standards
| ASCE/SEI 48: | Design of steel transmission pole structures |
| BS EN ISO 1461 : | Hot dip galvanized coatings on fabricate d iron and steel articles. Specification and test methods. |
| ASTM A123 : | Standard specification for zinc (hot galvanized) coating on Iron and Steel Products |
| ASTM A 153/A153M : | Standard specification for zinc (hot galvanized) coatings on iron and steel Hardware |
The Design

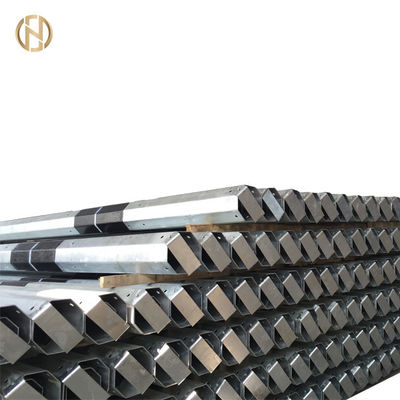

| Type | 12M 40FT Tubular Steel Pole 450daN octagonal steel pole ,galvanized poles |
| Suitable Uses | Power Distribution |
| Shape( Cross section) | Tubular, Octagonal , |
| Power grade | 11kv ,15kv,33kv, 35kv |
| No of Section | One/two/three section |
| Length (m) | 12M40FT |
| Foundation | Direct burial- 1.8-2M |
| Working Load | 450daN-4.5KN |
| Breaking Load | 450daN- 4.5KN , |
| Safety Factor | 1.2 , 1.5, 1.8 , 2.0 |
| Material | ASTM 572 GR50 or equal ,ASTM 572 GR65 or equal. |
| Minimum Yield Strength | 355 mpa / 450mpa |
| Minimum Ultimate Tensile Strength | 450mpa/550mpa |
| Max Ultimate Tensile Strength | |
| EL % | 25% |
| Top diameter(mm) | 130-180 |
| Bottom diameter(mm) | 310-400 |
| Min Thickness(mm) | >=4mm , |
| Tolerance of Dimensions | +- 1% |
| Engraving | Name plate through rivet or glue ,engraving ,embossment as per customers’ requirements |
| Surface Treatment | Hot Dip Galvanization according to ASTM A123 standards |
| Joint of Poles | Insert Mode, Inner Flange Mode, Face to Face Joint Mode. |
| Loading Conditions | |
| 0-2 degree |
| 32m/s 125km./h |
| 2.1 |
| 10% of overall pole length |
| Welding | Internal and external double welding process produces a seamless surface |
Packaging & Shipping

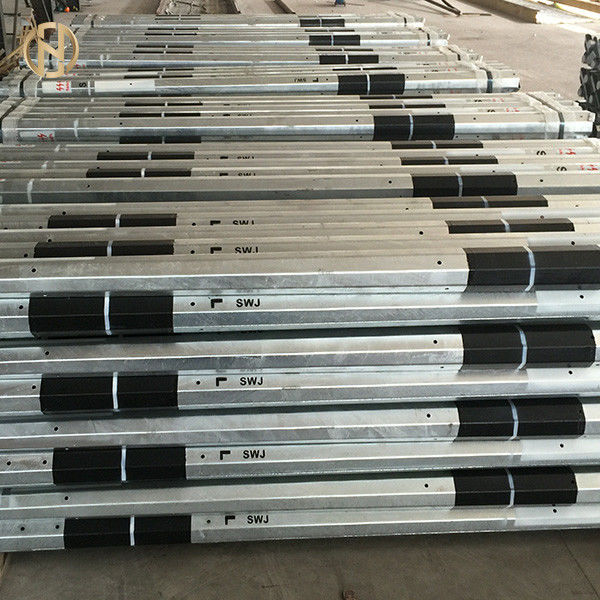

We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.
Process of Production
Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration→ Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging
