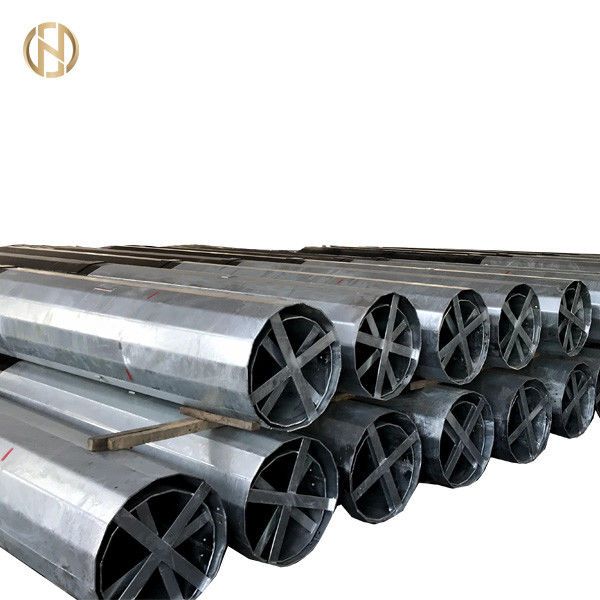

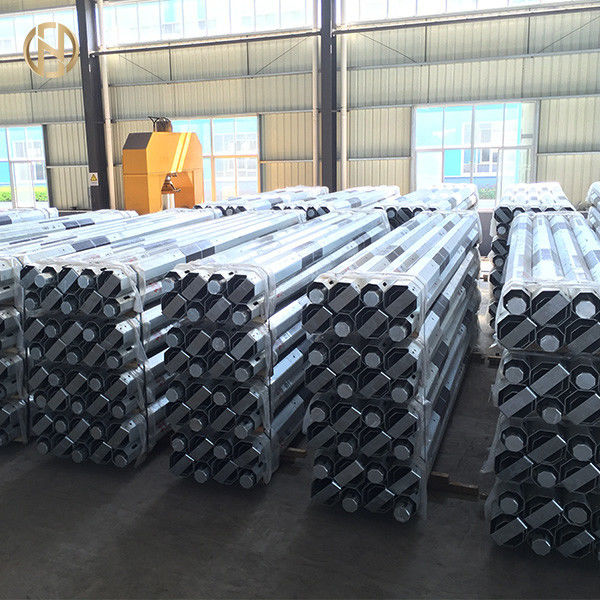

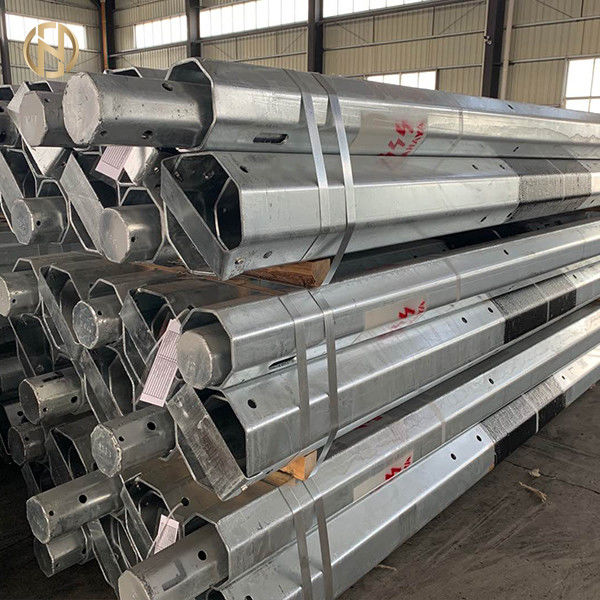

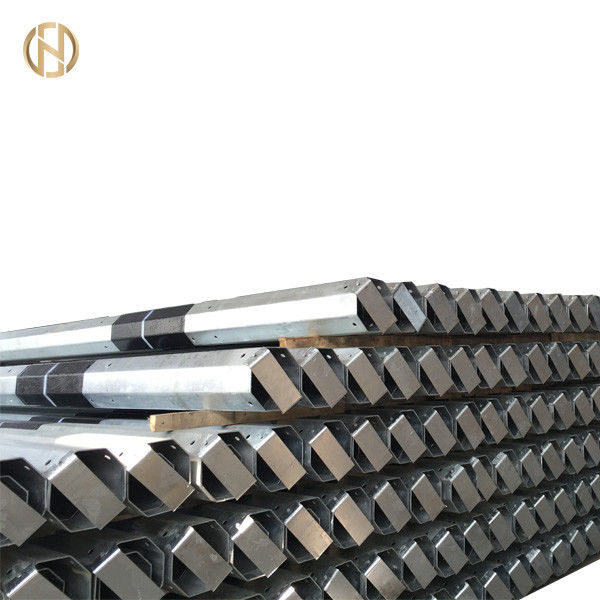

12M 450daN Galvanized Telescopic Steel Pole Metal Power Pole
Product Description
The products above are steel utility poles made specifically for s12M, 450daN Galvanized Telescopic Steel Pole, Metal power pole
To design in accordance with PLS software, we will require the following design parameters:
| SI. No. | Description | Unit | Purchaser’s Requirement | Manufacturer’s Particulars |
| 1 | Name of the Item | -- |
12M, 450daN, Galvanized Telescopic Steel Pole |
12M, 450daN, Galvanized Telescopic Steel Pole |
| 2 | Name of the Manufacturer | -- | Shall be mentioned | YIXING FUTAO |
| 3 | Address of the Manufacturer | -- | Shall be mentioned | No.1,Xinghe Rd,Heqiao Town,Yixing City,Jiangsu Province.P.R.China |
| 4 | Standard | -- | Performance Design and Testing shall be in accordance to the BS, IEC, ASTM, BDS or equivalent International standards. | Performance Design and Testing shall be in accordance to the BS, IEC, ASTM, BDS or equivalent International standards. |
| 5 | Manufacturer’s code no of pole | -- | Shall be mentioned | 730820 |
| 6 | Overall length | Meter | 12 Meter | 12Meter |
| 7 | Depth of Plantation | Meter | 1/6 of the length | 1/6 of the length |
| 8 | Tapper Ratio |
mm/ Meter |
Shall be mentioned | 15mm/Meter |
| 9 | Number of Sections | Nos | 3 | 3 |
| 10 | Length of each section | Meter | Shall be mentioned | 4220 |
| 11 | Outside diameter (Top & Bottom) of each section | Mm | Shall be mentioned |
190/270 260/350 330/400 |
| 12 | Thickness of each section | mm | Shall be mentioned | 3.75mm |
| 13 | Overlapping of each section | mm | Shall be mentioned |
|
| 14 | Total Weight of Pole | Kg | Shall be mentioned | 350kg |
| 15 | Minimum Tensile strength of Steel | N/mm2 | Shall be mentioned | 550 |
| 16 | Minimum Yield strength of Steel | N/mm2 | 280 | 450 |
| 17 | Galvanization Coating | -- | As per BS-729 | As per BS-729 |
| 18 | Type of anti-corrosive paint | -- | Shall be mentioned | Coar tar |
| 19 |
Thickness of anti-corrosive paint
|
Micron Micron |
2 x 100 1 x 100 |
1x100 1x100 |
| 20 | Number of Longitudinal Joint per section | Nos | 2 (max) | 2 |
| 21 | Factor of safety of Pole on Yield Strength | -- | 2 (min) | 2 |
Packaging & Shipping
We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.
Process of Production
Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration→ Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging
Our products are sold all over the world, you can rest assured.
