220KV Tubular Steel Pole for Transmission Lines,230kv electric pole, EN stardand
Product Description
The products above are 220KV Tubular Steel Pole for Transmission Lines,230kv electric pole, EN stardand.
To design in accordance with PLS software, we will require the following design parameters:
Product Specifications
Type | 220KV Tubular Steel Pole for Transmission Lines,230kv electric pole, EN stardand. |
Suitable Uses | Power tranmission line |
Shape( Cross section) | Octagonal, 8-side, 12-side |
Power grade | 220kv |
No of Section | <=3 section |
Length (m) | |
Foundation | Direct burial- 1.4 to 1.5Meter |
Working Load | 300daN 3KN |
Breaking Load | 360daN ,450daN, 540daN, 600daN |
Safety Factor | 1.2, 1.5, 1.8, 2.0 |
Material | ASTM 572 GR65 or Q460 |
Minimum Yield Strength | 355Mpa, 450mpa, 35.5sq.m |
Minimum Ultimate Tensile Strength | 450Mpa, 550Mpa 45sq.m |
Max Ultimate Tensile Strength | 690mpa |
EL % | >=15% |
Top section | |
Bottom section | |
Min Thickness(mm) | >=4.75mm |
Tolerance of Dimensions | +- 1% |
Engraving | Name plate through rivet or glue ,engraving ,embossment as per customers’ requirements |
Surface Treatment | Hot Dip Galvanization according to ASTM A123 standards/EN10046 |

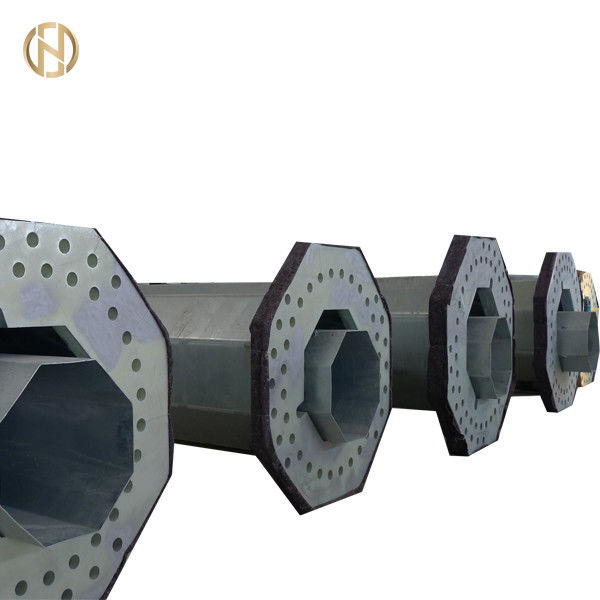

Joint of Poles | Insert Mode, Inner Flange Mode, Face to Face Joint Mode. |
Loading Conditions | |
| 0-5degree |
| 43m/s , 160km.h. |
| 1.0 |
| 10% of overall pole length |
Welding | Internal and external double welding process produces a seamless surface |
3.2. Tolerances
3.3 Galvanization
After the fabrication has been entirely completed, Steel Poles shall be hot dip galvanized. Double dipping shall not be allowed.
All materials, except bolts, screws, nuts, shall be galvanized according to NF EN ISO 1461.
All hollow members shall be galvanized both inside and outside surfaces. Nuts shall be retapped after galvanizing and then shall be suitably protected from rust by grease.
4. Description:

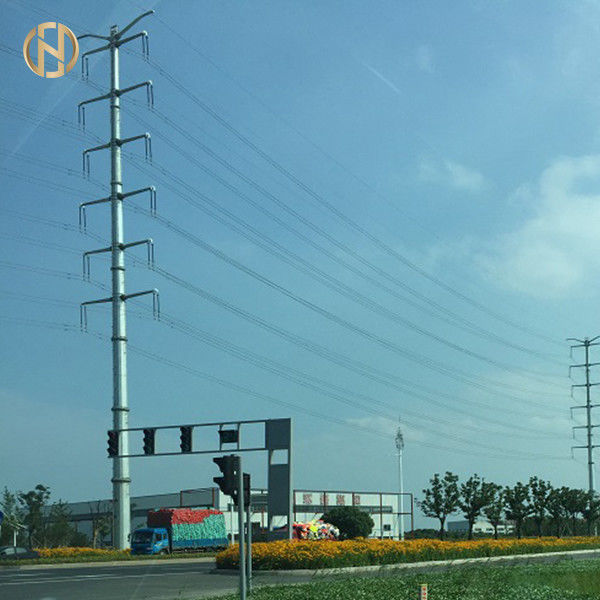

Galvanized STEEL POLES, uniformly tapered, 12 sided regular polygonal cross-section. The maximum length of one section shall be 12 meters.
Each face shall be flat, without stiffeners except at load points.
Steel Poles are designed for telescoping slip-fitted connections.
Poles are designed with a minimum number of joints (one or two joint per pole). Pole joint shall be of telescoping type, welding or bolting shall not be employed.
Slip joint length shall not be less than 1.5 times the major internal diameter of the upper element.
A removable metallic pole cap shall be fitted on top of poles.
The crossarms attached at the same level on opposite sides of the pole shall be symmetrical about the centerline of the pole and shall be such that each crossarm can be installed independently.
The crossarms shall be connected to pole by mean of thru vangs, bolts and nuts. Cross-arms shall be straight and shall have a uniformly tapered 6 (eight) sided regular polygonal cross-section
All poles shall be provided with one earthing point at a position approximately 50 cm above ground level.
Packaging & Shipping
We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.
Process of Production
Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration→ Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging
FAQ
Q3. I am a designer; Can you help me to produce the sample which we designed? |
A: Our mission is to help our customers be successful. We are more than happy to help you solve any problems that you may have. |
Q4. We want be your agent for our area. How do I apply for this? |
A: Please send your proposal and your company profile to |
Q5. Tell me about your company? |
A : We have been a manufacturer and exporter of all kinds of steel poles including power poles, street lighting poles, telecommunications poles and other steel based products since 2000. Our products have been exported to many regions around the world. |
Q6. Do you have some special policies for Branded companies? |
