Q460 Electrical Power Pole, Amercian stardand,33kv tranmission power
Product Description

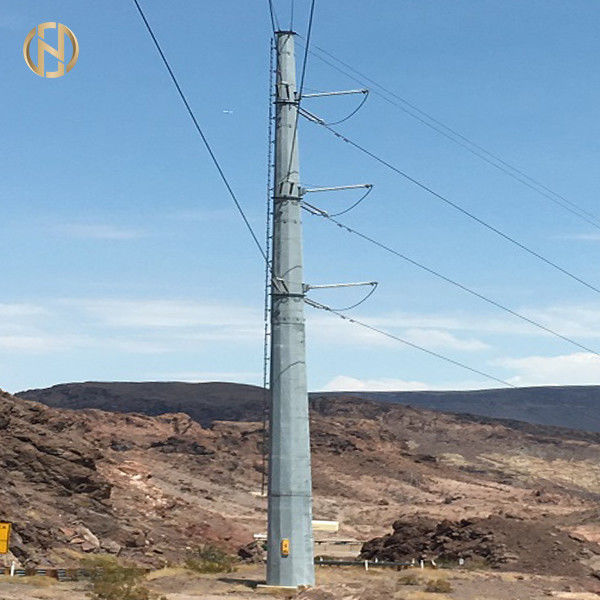

Designed for 33KV overhead transmission lines. Custom poles with custom dimensions can be designed if required. Our in house engineers are here to help. Please contact customer service for any enquiries you may have.
Specifical Details
|
Product Name |
Steel Power Pole |
|---|---|
|
Type |
Overhead Transmission Line Monopole |
|
Height |
4m - 60m |
|
Thickness |
2mm - 10mm |
|
Shape |
Custom Shape |
|
Surface Treatment |
Hot Dip Galvanization according to ASTM A123 standard |
|
Color |
Varied |
|
Ground Mounting |
Anchor Bolt,Telescopic Joints, Direct Burial |
|
Voltage |
33KV - 520KV |
|
Material |
Q235, Q345, Q420, Q460,etc |
|
Welding
|
Welding complies with AWS D1.1 standard CO2 welding or Submerged Arc Auto methods No scarring, burrs, craters, spatters, distortions, defects of any kind No Welding Defects |
|
Life Expectancy |
More than 20 years |
|
Qualification |
ISO9001-2015, AAA Credit Rating |
|
Wind Resistance |
150 km/h |
|
Earthquake Resistance |
Against earthquake of grade 8 |
Additional Details
Design Code: American Standard ASCE/SEI 48-11
Design Software: PLS-POLES software
Export Coverage: Asia-Pacific, Central & South America, Europe, Middle East, Africa
Testing : Loading Tests may be conducted on site if required
Production Process
Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling→ Calibration → Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging

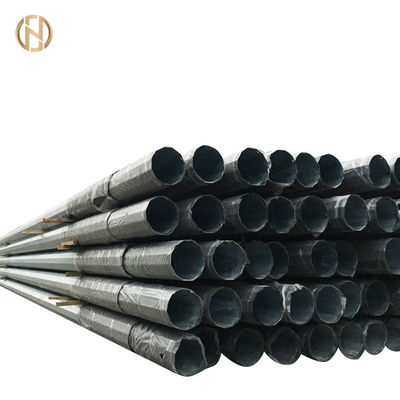

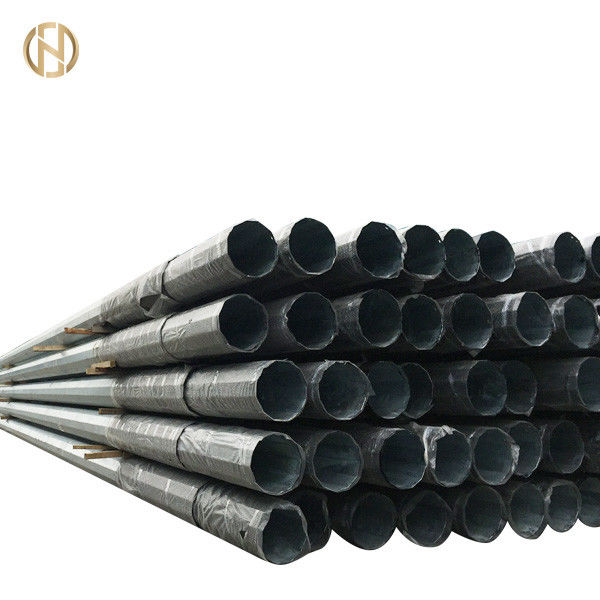

Product Details
Testing
Welcome to our factory!
Our products are sold all over the world, you can rest assured.
