Octagonal Electrical Power Pole 2-50M Hot Dip Galvanized Surface Treatment

Octagonal Electrical Power Pole 2-50M Hot Dip Galvanized Surface Treatment

  • High Light

    electric line pole

    ,

    electric power post

  • Height
    2m - 50m
  • Thickness
    2.5mm - 20mm
  • Material
    Q235, Q345, Q420, Q460, Gr 50, Gr60, SS400, Etc.
  • Shape
    Polygonal Or Conical
  • Color
    According To Clients' Requirment
  • Surface Treatment
    Hot Dip Galvanized
  • Welding
    AWS D 1.1
  • Place of Origin
    CHINA
  • Brand Name
    Futao
  • Certification
    ISO 9001 : 2008
  • Model Number
    FTGG - 0 38 917
  • Minimum Order Quantity
    2 pieces
  • Price
    $100 - $400
  • Packaging Details
    40HC or OT, wrap by mat or straw mat
  • Delivery Time
    15 - 30 workdays
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1200 pieces every week

Octagonal Electrical Power Pole 2-50M Hot Dip Galvanized Surface Treatment

                                         Octagonal Electrical Power Pole 2-50M Hot Dip Galvanized Surface Treatment​



Product Description


Our electrical poles are specifically designed2-50M Hot Dip Galvanized Electric Power Pole ,octagonal pole, We have successfully delivered our products to satisfied customers all around the world including Southeast Asia, the Middle East, and Europe. In addition, we can produce various types of poles depending on its usage such as suspension, tension and terminal/dead angle poles.



Specifical Details


Product Name

Galvanized electric power pole

Type

Suspension Pole, Tension Pole, Angle Pole, Termination Pole

Height

2m - 50m

Thickness

2.5mm - 20mm

Shape

Polygonal or Conical

Surface Treatment

Hot Dip Galvanized according to ASTM A123 standard or any other standards according to clients' request

Color

Any, According to clients' request

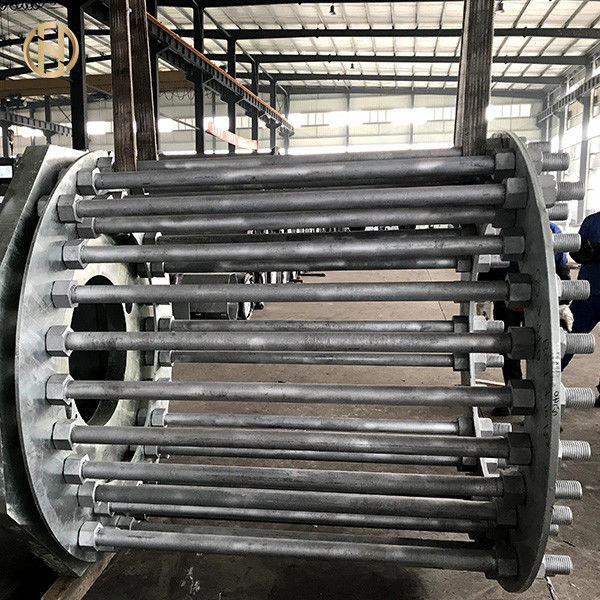

Ground Mounted

Anchor Bolt

Voltage

10kv - 500kv (10

Material

Q235, Q345, Q420, Q460, Gr 50, Gr60, SS400, etc.

Welding



Welding complies with AWS D1.1 standard

COwelding or Submerged Arc Auto methods

No scarring, craters, spatters, distortions, defects of any kind due to welding errors

Unique Internal and External Welding method that allows for a smoother surface

Additional welding requirments can be made as per clients' request

Life Expectancy

More than 25 years depending on various environmental factors

Qualification

ISO9001-2015, AAA Credit Rating

Wind Resistance

120 km/h

Earthquake Resistance

Against earthquake of grade 8



Additional Details


Design Code: American Standard ASCE/SEI 48-11

Design Software: PLS-POLES

Export Market Coverage: Asia-Pacific, Central & South America, Europe, Middle East, Africa

Testing Process: Loading Tests may be conducted on factory site if required



Process of Production


Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling→ Calibration → Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging

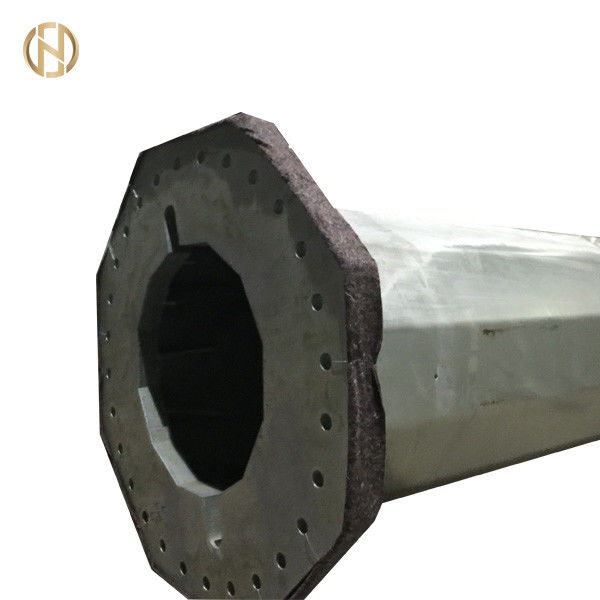

Octagonal Electrical Power Pole 2-50M Hot Dip Galvanized Surface Treatment 0

Product Details


Octagonal Electrical Power Pole 2-50M Hot Dip Galvanized Surface Treatment 1



Testing


Octagonal Electrical Power Pole 2-50M Hot Dip Galvanized Surface Treatment 2

Packaging & Shipping


We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.



MATERIALS LIST
ITEM STANDARD minimum
YIELD STRESS
Fy (Mpa)
minimum TENSILE STRESS Fu (Mpa) OBSERVATION
t = thickness
Poles shaft and base plate and arms EN 10.025 S355 J0 * 355 345 335 325 470-630 470-630 470-630 470-630 t = 16 16 < t = 40 40 < t = 63 63 < t = 80
Anchor bolts Cl 6-8 ISO 898 480 600



(*) In accordance with NF A 35.503, Class 1 Chemical composition product analysis of Class 1 :

Si = 0.030 %
Si + 2.5 P = 0.090 %
