Angle Degree 12 Side Telescopic Electric Power Post 86um 161kv Black With Zinc Color

Angle Degree 12 Side Telescopic Electric Power Post 86um 161kv Black With Zinc Color

  • High Light

    electrical power post

    ,

    electric line pole

  • Height
    2m - 50m
  • Thickness
    2.5mm - 20mm
  • Material
    Q235, Q345, Q420, Q460, Gr 50, Gr60, SS400, Etc.
  • Shape
    Polygonal Or Conical
  • Surface Treatment
    Hot Dip Galvanized
  • Color
    According To Clients' Requirment
  • Welding
    AWS D 1.1
  • Place of Origin
    CHINA
  • Brand Name
    FUTAO
  • Certification
    ISO 9001 : 2008
  • Model Number
    FTGG - 0 38 917
  • Minimum Order Quantity
    2 pieces
  • Price
    $102 - $405
  • Packaging Details
    40HC or OT, wrap by mat or straw mat
  • Delivery Time
    15 - 30 workdays
  • Payment Terms
    L/C, T/T
  • Supply Ability
    10pcs per day

Angle Degree 12 Side Telescopic Electric Power Post 86um 161kv Black With Zinc Color

                    Angle degree 12 side  telescopic electric power polezinc 86um 161kv black with zinc color



Product Description


Our electrical poles are specifically designed for 12 sided telescopic electric power pole,utility pole equinmentWe have successfully delivered our products to satisfied customers all around the world including Southeast Asia, the Middle East, and Europe. In addition, we can produce various types of poles depending on its usage such as suspension, tension and terminal/dead angle poles.



Specifical Details


Product Name

Steel Power Pole

Type

Suspension Pole, Tension Pole, Angle Pole, Termination Pole

Height

2m - 50m

Thickness

2.5mm - 20mm

Shape

Polygonal or Conical

Surface Treatment

Hot Dip Galvanized according to ASTM A123 standard or any other standards according to clients' request

Color

Any, According to clients' request

Ground Mounted

Anchor Bolt

Voltage

10kv - 500kv (10

Material

Q235, Q345, Q420, Q460, Gr 50, Gr60, SS400, etc.

Welding



Welding complies with AWS D1.1 standard

COwelding or Submerged Arc Auto methods

No scarring, craters, spatters, distortions, defects of any kind due to welding errors

Unique Internal and External Welding method that allows for a smoother surface

Additional welding requirments can be made as per clients' request

Life Expectancy

More than 25 years depending on various environmental factors

Qualification

ISO9001-2015, AAA Credit Rating

Wind Resistance

161 km/h

Earthquake Resistance

Against earthquake of grade 9



Additional Details


Design Code: American Standard ASCE/SEI 48-11

Design Software: PLS-POLES

Export Market Coverage: Asia-Pacific, Central & South America, Europe, Middle East, Africa

Testing Process: Loading Tests may be conducted on factory site if required



Process of Production


Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling→ Calibration → Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging

Angle Degree 12 Side Telescopic Electric Power Post 86um 161kv Black With Zinc Color 0

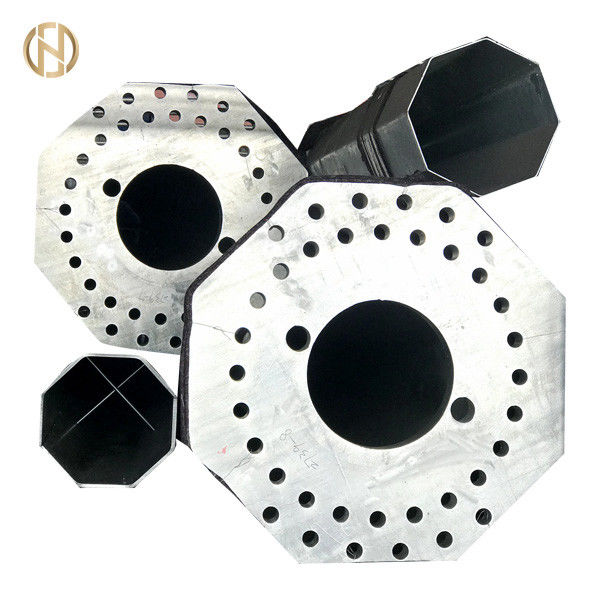

Product Details


Angle Degree 12 Side Telescopic Electric Power Post 86um 161kv Black With Zinc Color 1



Testing


Angle Degree 12 Side Telescopic Electric Power Post 86um 161kv Black With Zinc Color 2

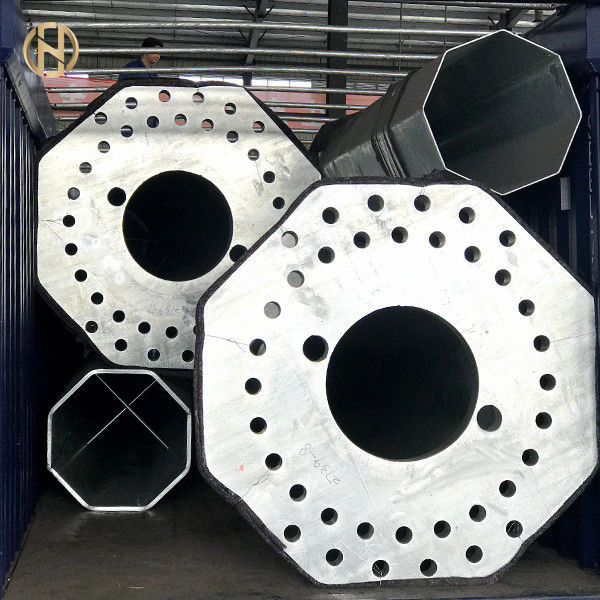

Packaging & Shipping


We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.



Q2. I am a small wholesaler; do you accept a small order?
A: It's not a problem if you are a small wholesaler; we accept orders of various quantities.
Q3. I am a designer; Can you help me to produce the sample which we designed?
A: Our mission is to help our customers be successful. We are more than happy to help you solve any problems that you may have.
Q4. We want be your agent for our area. How do I apply for this?
A: Please send your proposal and your company profile to
Q5. Tell me about your company?
A : We have been a manufacturer and exporter of all kinds of steel poles including power poles, street lighting poles, telecommunications poles and other steel based products since 2000. Our products have been exported to many regions around the world.
Q6. Do you have some special policies for Branded companies?
