10 - 30M Hot Dip Galvanized Pole ASTM 123 ASTM 153 30FT 10KV - 550KV

10 - 30M Hot Dip Galvanized Pole ASTM 123 ASTM 153 30FT 10KV - 550KV

  • High Light

    galvanised power pole


    galvanised steel posts


    10m Hot Dip Galvanized Pole

  • Surface Treatment
    Hot Dip Galvanized
  • Height
  • Material
    ASTM GR65, GR50, Q460, A572, S355, Q345, Q235,etc
  • Shape
    Tubular, Polygonal And Conical 8side
  • Power
    10kv - 550kv
  • Earthquake Resistance
    Grade Of 7
  • Wind Resistance
    120 Km/h
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
    4 pieces
  • Price
    $122 - $341/piece
  • Packaging Details
    40HC or OT, wrap by mat or straw mat
  • Delivery Time
  • Payment Terms
    L/C, T/T
  • Supply Ability
    150pcs per day

10 - 30M Hot Dip Galvanized Pole ASTM 123 ASTM 153 30FT 10KV - 550KV

                                       10 - 30M Hot Dip Galvanised Power Pole ASTM 123  ASTM 153 30FT 10.2M


Product Description

Our galvanized electrical poles are specifically designed for 10 - 30M Hot Dip Galvanised Power Pole, ASTM 123 , ASTM 153, 30FT, 10.2M . We have successfully delivered our products to satisfied customers all around the world including Southeast Asia, the Middle East, and Europe.


Specification Details

Product Name

Galvanized Electrical Pole




2.5mm - 20mm


Tubular, Polygonal or Conical

Surface Treatment

Hot Dip Galvanized or any other standards according to clients' request


Any, According to clients' request


10kv - 500kv


ASTM GR65, GR50, Q460, A572, S355, Q345, Q235,etc



Welding complies with AWS D1.1 standard

CO2 welding or Submerged Arc Auto methods

No scarring, craters, spatters, distortions, defects of any kind due to welding errors

Unique Internal and External Welding method that allows for a smoother surface

Additional welding requirments can be made as per clients' request

Life Expectancy

More than 25 years depending on various environmental factors


ISO9001-2015, AAA Credit Rating

Wind Resisance

160 km/h

Earthquake Resisance

Against earthquake of grade 8


Process of Production

Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration → Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging

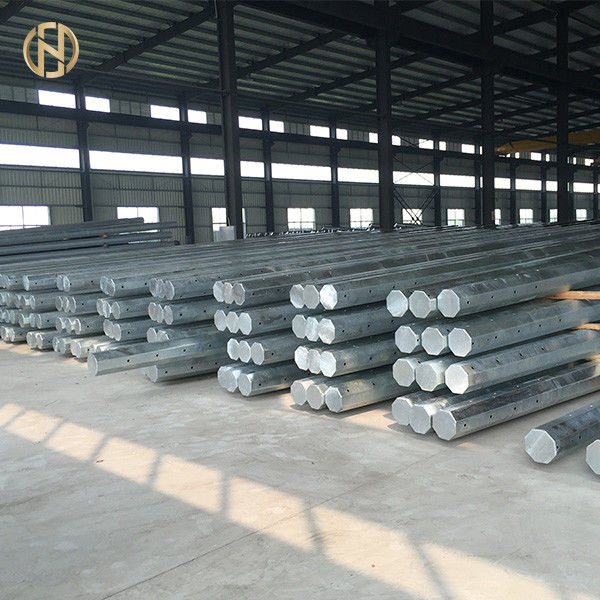

10 - 30M Hot Dip Galvanized Pole ASTM 123 ASTM 153 30FT 10KV - 550KV 0

Product Details

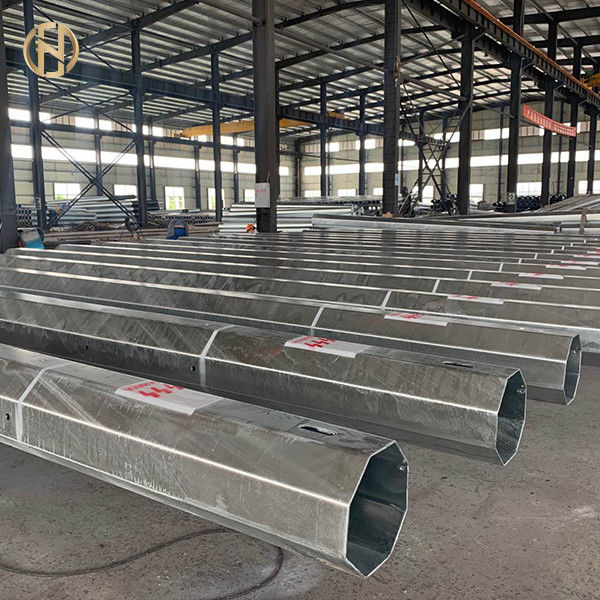

10 - 30M Hot Dip Galvanized Pole ASTM 123 ASTM 153 30FT 10KV - 550KV 1

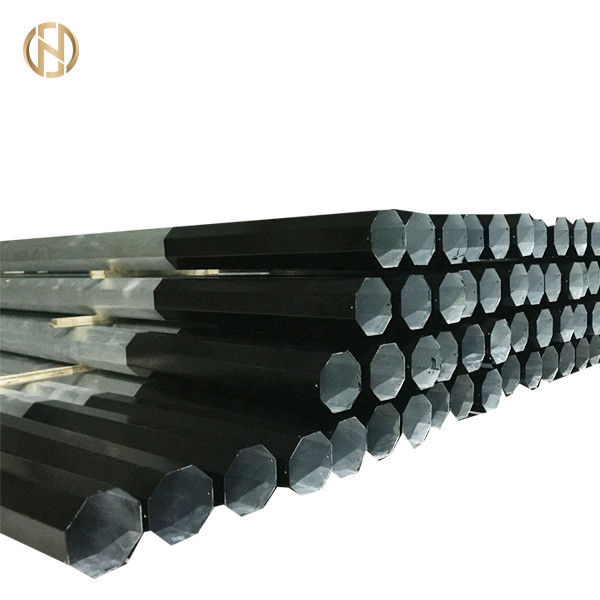

Packaging & Shipping

We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.



1. Price Term : FOB, CFR or CIF

- The price stated includes pole shaft, base plate, cross arms, anchor bolts and any additional accessories required.

- Shipping Port: Shanghai Port. For FOB, CFR or CIF quotes, please specify which exact shipping model you require, then inform us of the quantity of your order so that we can accurately calculate the local transport charges and sea freight.

2. MOQ : 1 set for customized

3. Payment: 30% by T/T as initial deposit, remaining balance by T/T or L/C at sight before shipment. Other payment terms can be negotiated.

4. Delivery Time : Goods will be ready for shipment within 10 working days after receiving initial deposit

5. Warranty : 30 years

6. Surface Treatment : Hot Dip Galvanization

Q5. Tell me about your company?
A : We have been a manufacturer and exporter of all kinds of steel poles including power poles, street lighting poles, telecommunications poles and other steel based products since 2000. Our products have been exported to many regions around the world.
Q6. Do you have some special policies for Branded companies?
A: Yes, we have some special support for the company who has own brand but are also in our VIP customers list. Please send us a copy of your sales data so we can analyze the best course of action in supporting you for your products in your market.
Q7. Do you provide Door to Door service? Because i don't know how to deal with customs clearance.
A: Yes. We provide Door to Door service to help you reduce shipping time and costs. This is because we have additional discounts with the shipping companies as we have done many shipments in the past. This in turn will save you lots of time and money.
