99.9% Zinc 15KV Overhead Line Pole EN10046 75um Well Finished Galvanization

99.9% Zinc 15KV Overhead Line Pole EN10046 75um Well Finished Galvanization

  • High Light

    metal electrical pole


    electric power pole


    EN10046 Overhead Line Pole

  • Height
  • Thickness
    2.3mm, 2.5mm.2.6mm
  • Material
    Hot Roll Steel
  • Color
    According To Clients' Request
  • Shape
    Octagonal, 8size
  • Surface Treatment
  • Place of Origin
  • Brand Name
  • Certification
  • Minimum Order Quantity
    2 pieces
  • Price
    $100 - $2000
  • Packaging Details
    Wrap by mat or straw mat
  • Delivery Time
    30 - 60 workdays
  • Payment Terms
    L/C, T/T
  • Supply Ability
    Please talk with our staffs to get more details

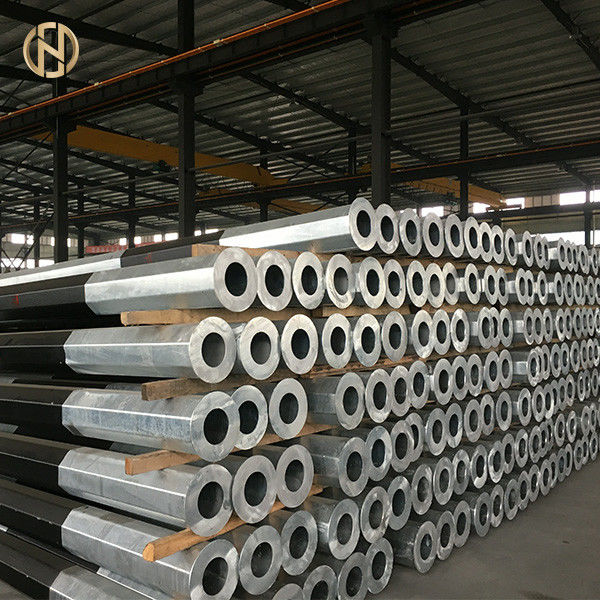

99.9% Zinc 15KV Overhead Line Pole EN10046 75um Well Finished Galvanization

15KV Overhead Transmission Lines, gray color, Hot-dip-galvanized, 99.9% zinc EN10046 75um


Product Description

The products above are made specifically for power distribution and transmission lines between 10KV to 550KV.

  • Products are designed and manufactured according to ANSI/TIA-222-G structural standards
  • We are experienced in global markets and ready to meet any requirements proposed by our clients.
  • All products are hot dip galvanized according to ISO 1461/ASTM A123 standards
  • ASTM GR65,GR50,Q460 A572,S355,Q345/Q235,etc may be used as the pole shaft material.

To design in accordance with PLS software, we will require the following design parameters:

  1. The operational wind speed of the region where the pole will be used
  2. The Antenna load and height of the pole
  3. The total height of the pole itself

Product Specifications

Product Name

Monopoles for 10 - 500KV Overhead Transmission Lines

Suitable Uses

Electricity Transmission and Distribution


Tubular, Polygonal or Conical




Q345B/ A572, Minimum yield strength >= 345n/mm2

Q235B/A36, Minimum yield strength >= 235n/mm2

Other materials may be used as per customers' request (Q460, ASTM573 GR65, GR50, SS400, SS490, to ST52)

Dimension Tolerances

+- 1%

Wattage (Kv)

10 kv - 550 kv

Safety Factor

Safety factor for conducting wire: 8

Safety factor for grounding wire: 8

Design Load in Kg

300 - 1000 Kg applied to 50cm from pole top


Name plate through rivet or glue, engraving, embossment as per customers' requirement

Surface Treatment

Hot Dip Galvanization according to ASTM A123 standards/Powder Coating

Pole Joint

Insert Mode, Inner Flange Mode, Face to Face Joint Mode

Pole Design

Against earthquake of 8 magnitude

Wind Resistance

160 km/h or 30m/s

Minimum Yield Strength

355 mpa

Min to Max Ultimate Tensile Strength

490 mpa - 620 mpa

Manufacturing Standard

ISO 9001

Length per Section

Within 14m once formed without slip joint


Internal and external double welding process produces a seamless surface

Welding Standard: AWS (American Welding Society) D 1.1


2mm - 30mm


Packaging & Shipping

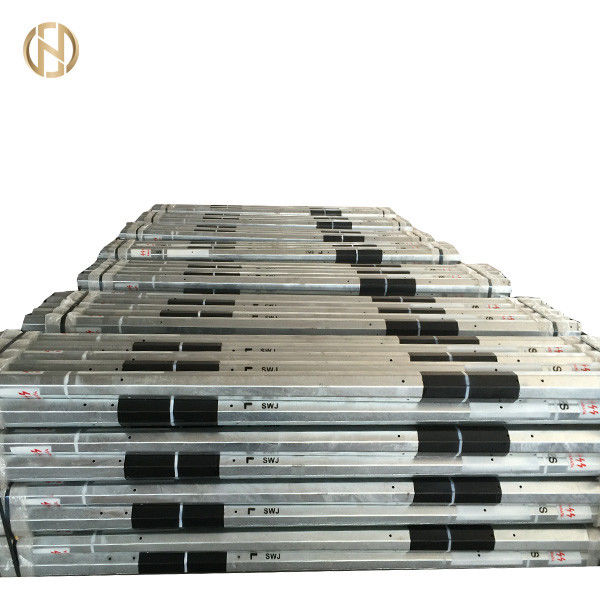

We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements. Other methods of protection may be used according to the clients' requirements.


Process of Production

Verification of Materials → Cutting → Moulding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration→ Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging

99.9% Zinc 15KV Overhead Line Pole EN10046 75um Well Finished Galvanization 0



Q1. How can I get a price quotation?

A: 1. Please provide exact dimensions such as height, pole shaft material type and thickness, top and bottom diameters. We can then give you an accurate quotation based on your specifications.

2. You can send us a detail and assembly drawing; we can then provide you with an accurate quotation based on the drawing.

Q2. I am a small wholesaler; do you accept a small order?
A: It's not a problem if you are a small wholesaler; we accept orders of various quantities.
Q3. I am a designer; Can you help me to produce the sample which we designed?
A: Our mission is to help our customers be successful. We are more than happy to help you solve any problems that you may have.
Q4: We want be your agent for our area. How do I apply for this?
A: Please send your proposal and your company profile.
Q5. Tell me about your company?
We have been a manufacturer and exporter of all kinds of steel poles including power poles, street lighting poles, telecommunications poles and other steel based products since 2000. Our products have been exported to many regions around the world.
Q6. Do you have some special policies for Branded companies?
A: Yes, we have some special support for the company who has own brand but are also in our VIP customers list. Please send us a copy of your sales data so we can analyze the best course of action in supporting you for your products in your market.
Q7. Do you provide Door to Door service? Because i don't know how to deal with customs clearance.
A: We provide Door to Door service to help you reduce shipping time and costs. This is because we have additional discounts with the shipping companies as we have done many shipments in the past. This in turn will save you lots of time and money.


Our Service

1. We will reply all your enquiries in 24 working hours.

2. Experienced staff members will answer all your questions in fluent English.

3. Customized designs are available. UEM & UBM are welcome.

4. Exclusive and unique solutions can be provided to our customers by our well-trained and professional engineers and staff.

5. Special discount and protection of sales are provided to our distributors.

6. State of the Art Factory with highly specialized machinery focused on producing various types of steel poles with over 20 years of experience and expertise to deliver you quality products that you can trust at competitive prices.
