10.5M Steel Metal power poles, 3KN ,Sf 2.0 ,500daN, Dominican market, Metal Post, 11.6m ,11.7m ,11.8m 11.9m
Product Description

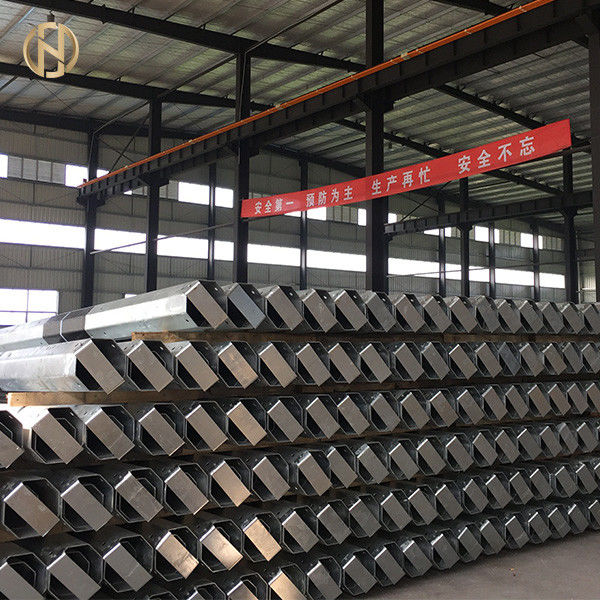

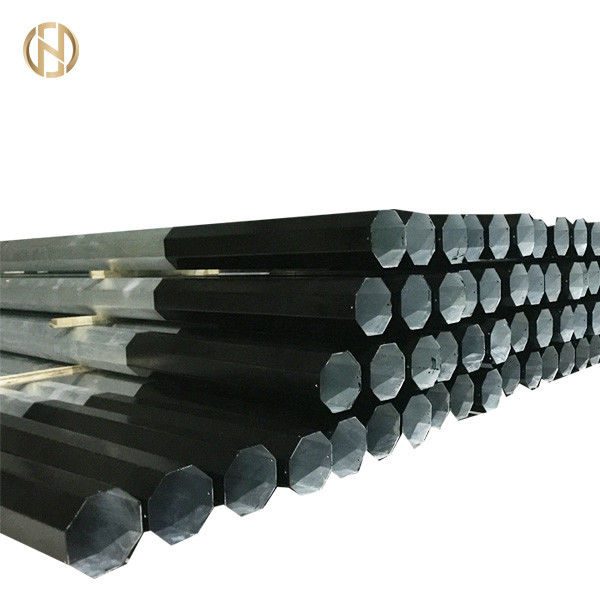

The products above are custom poles meant for overhead transmission lines.
To design in accordance with PLS software, we will require the following design parameters:
Product Specifications
| Item Description: | 10.5M STEEL POLES,300daN, SF=2.0, | ||||||||
| Customer: | ELECTROCABLE ALUCONSA.S.A.S | ||||||||
| End User: | EDENORTE | ||||||||
| A.PROOF TESTS | Measured | Drawing Design | Allowed tolarance | Result | |||||
| Top Diameter (mm): | AVE=147.25(/148/147/148/146) | 150 | 145-155 | PASSED | |||||
| Btm Diameter (mm): | AVE=253.25(/256/252/253/252) | 255 | 249-261 | ||||||
| Galv Wall Thickness(mm): | AVE=3.26(/3.25/3.26/3.24/3.27) | >=3 | >=3 | ||||||
| Length of Each section (mm): | 10510 | 10500 | 10430-10570 | ||||||
| Galvanized thickness (um ): | AVE=107.2(97/116/112/107/104) | ASTM 123 | Ave>=85Um | ||||||
| Holes size and distance | Passed. | drawing | No. | ||||||
| Nameplate | Y. | Y | Y/N | ||||||
| Grounding nuts | Y. | Y | Y/N | ||||||
| Bearing Plate | Y. | Y | Y/N | ||||||
| straightness of poles | 1cm allowed. | Y | 0.5% of length | ||||||
| Matercial Test | YS(Mpa) | 520 | >=460 | >=460 | |||||
| TS (Mpa) | 596 | >=550 | >=550 | ||||||
| EL (%) | 28.5 | >=15% | |||||||
Packaging & Shipping
We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.
Our Service
1. All enquiries are replied within 24 working hours.
2. Customized designs are welcome. UEM & UBM are welcome.
3. Not sure about where to start? Have questions regarding any our products or design? Our well-trained and professional engineers and staff are here to help.
4. Special discount and protection of sales are provided to our distributors.
5. State of the Art Factory with highly specialized machinery focused on producing various types of steel poles with over 20 years of experience and expertise to deliver you quality products that you can trust at competitive prices.
Our products are sold all over the world, you can rest assured.
