Customized Metal Power Pole, any height and thickness, any color
Product Description

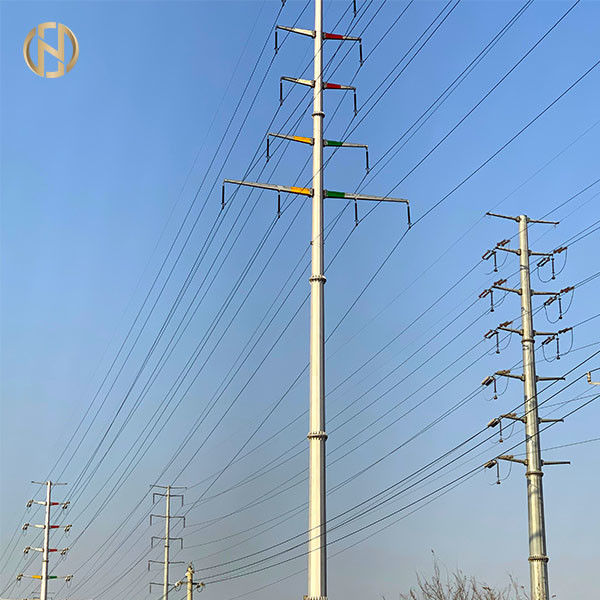

The products above are suitable for overhead transmission lines carrying voltages of 10 to 500 KV.
Why choose Monopoles versus traditional lattice type steel towers?
We design all our poles with PLS sotware, as such we will require the following parameters be given to us:
Product Specifications
Product Name | Steel Monopole for Electrical Transmission Lines |
|---|---|
Suitable Uses | Electricity Distribution |
Shape | Tubular, Polygonal or Conical |
| Q345B/ A572, Minimum yield strength >= 345n/mm2 Q235B/A36, Minimum yield strength >= 235n/mm2 Other materials may be used as per request (Q460, ASTM573 GR65, GR50, SS400, SS490, to ST52) |
Tolerance of Dimensions | +- 1% |
Power | 10 kv - 550 kv |
Safety Factor | Safety factor for conducting wire: 8 |
Design Load in Kg | 300 - 1000 Kg applied to 50cm from pole top |
Engraving | Name plate through rivet or glue, engraving, embossment as per customers' requirement |
Surface Treatment | Hot Dip Galvanization according to ASTM A123 standards/Powder Coating |
Joint of Poles | Insert Mode, Inner Flange Mode, Face to Face Joint Mode |
Design of Poles | Against earthquake of 8 grade |
Wind Resistance | 160 km/h or 30m/s |
Minimum Yield Strength | 355 mpa |
Min to Max Ultimate Tensile Strength | 490 mpa - 620 mpa |
Standard | ISO 9001 |
Length per Section | Within 14m once formed without slip joint |
Welding | Internal and external double welding process produces a seamless surface |
Thickness | 2mm - 30mm |

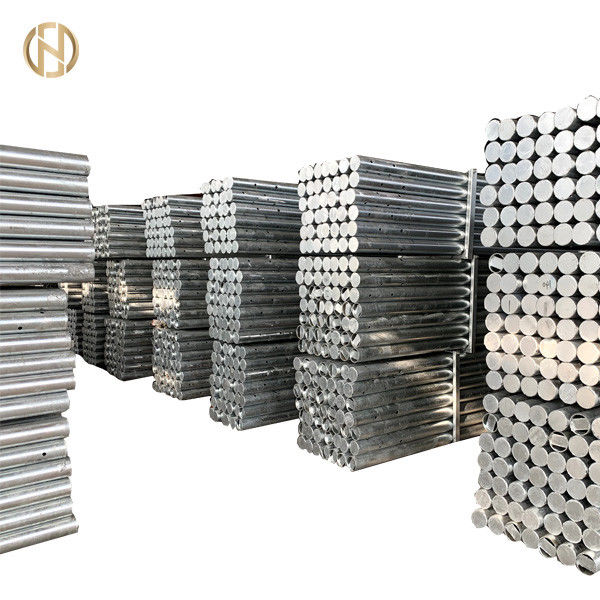

Packaging & Shipping
The top and bottom parts of the pole shall be covered with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Other forms of packaging methods may also be used if neccessary.
Prodcution Chart
Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration→ Deburring Process → Galvanizing Powder Coating or Painting → Recalibration → Threading → Packaging
FAQ
| Q1. How do I obtain a price quote for any of the products? |
A: 1. Please provide exact dimensions such as height, pole shaft material type and thickness, top and bottom diameters. We can then give you an accurate quotation based on your specifications. |
| Q2. I am a small wholesaler; do you accept a small order? |
| A: Yes, we do. |
| Q3. I have a custom design; Can you help me to produce the sample which we designed? |
| A: Yes we can. We are more than happy to help you solve any problems that you may have. |
| Q4: We want be your agent for our area. How do I apply for this? |
| A: Please send us your proposal and your company profile. We wil then get back to you as soon as we can. |
| Q5. Tell me about your company? |
| We have been a manufacturer and exporter of all kinds of steel poles including power poles, street lighting poles, telecommunications poles and other steel based products since 2000. Our products have been exported to many regions around the world includding North and South America, Southeast Asia, Africa and Oceania. |
| Q7. Do you provide Door to Door service? Because i don't know how to deal with customs clearance. |
| A: We provide Door to Door service to help you reduce shipping time and costs. This is because we have additional discounts with the shipping companies as we have done many shipments in the past. This in turn will save you lots of time and money. |
Our Specialty
1. Fast replies guaranteed.
2. Experienced and qualified staff members.
3. Customized designs are available. UEM & UBM are welcome.
4. Exclusive and unique solutions can be provided to our customers by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributors.
6. Clean and hygenic factory with state of the art machinery focused on producing various types of steel poles to deliver you quality products that you can trust at competitive prices.
Our products are sold all over the world, you can rest assured.
