Product Description
l Pole Shaft Material: ASTM A572 GR65/Q345/Q235/GR50
l Pole Height: 1-16M
l Brackets: Single or Double Brackets are available depending on security camera requirements
l Mounting Method: Base Plate mounting with anchor bolts/ Direct Burial
l Surface Treatment: Hot Dip Galvanization/ Powder Coating
l Aseismic Design: Built to withstand up to a Magnitude scale of 7 and below
l Color: RAL Color Standard
The connection ends of the main pole and the mounting arm shall adopt the same material used by the mounting arms and will be protected by stiffeners.
The vertical pole and its base plate will be connected by a flange and anchor bolts.
Horizontal mounting arms are connected to the main vertical pole using a flange and further reinforced using stiffeners.
Specific Details
| Poles Stiffener Size | Accordance with Flange size to decide |
| Overlap Length Calculation | Upper Section of the bottom diameter more than 1.5 times |
| Surface treatment | Hot Dip Galvanization, Electrostatic Spray |

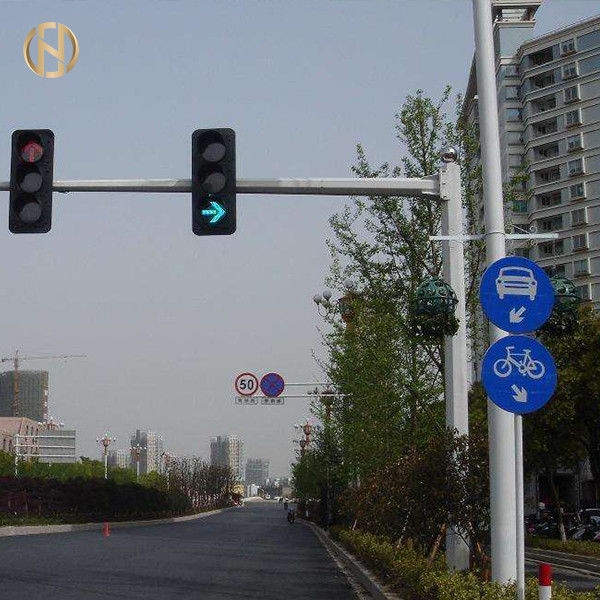

| Components | Signal Lights(Red/Green/Yellow Color),Camera etc. |
| Power Cabinet | Power Cabinet installed at outdoor to control the Signal Lights Colors Exchanged. |
| Power Cable Length Using | Power Cable Length using depending on the Poles height and Signal Lights/Camera Wattage/Quantity. |
| Galvanization Thickness | 80-100 microns on average according to BS EN ISO1461 standards |
| Galvanization Suitable Wall Thickness | At least ≥2.5mm Wall Thickness, |
| How long Dipped into Zinc pool for the poles | The time Dipped into Zinc pool depending on the poles Wall Thickness and the Galvanized thickness Execution Standard |
| Mounting Height | 3-16M |
| Pole Shape | Conical, Polygonal, Round |
| Brackets | Single or Double Brackets of various sizes and shapes as per clients’ requirements |
| Welding | Welding conforms to international welding standard of CWB |
| Base Plate Mounting | A square or round Base Plate with slotted holes used in tandem with anchor bolts |
| Ground Mounting | The bottom part of the pole shall be buried underground at site. Depth of burial as per clients’ requirements |
| Galvanization | Hot Dip Galvanization with and average thickness of 80-100µm |
| Powder Coating | Pure Polyester Powder Painting, coloring optional |
Process of Production
Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration → Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging
Product Details
Testing
Packaging & Shipping
We pack the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation.
Packaging can also be done according to clients’ requirements.
We can ship the poles by sea or air or express or trains and we have our regular shipping agent.
FAQ
Trade terms:
1. Price Term: EXW,FOB,CFR,CIF,FCA or others.
The price includes pole shaft, base plate, cross arm and anchor part.
2. Payment: 30%T/T in advance,70%T/T or L/C at sight before shipment. Other payment way can be negotiated.
3. Package: Plastic woven bag or old blanket or according to clients requirement.
4. Delivery time: within 30-60 workdays after receiving deposit.
