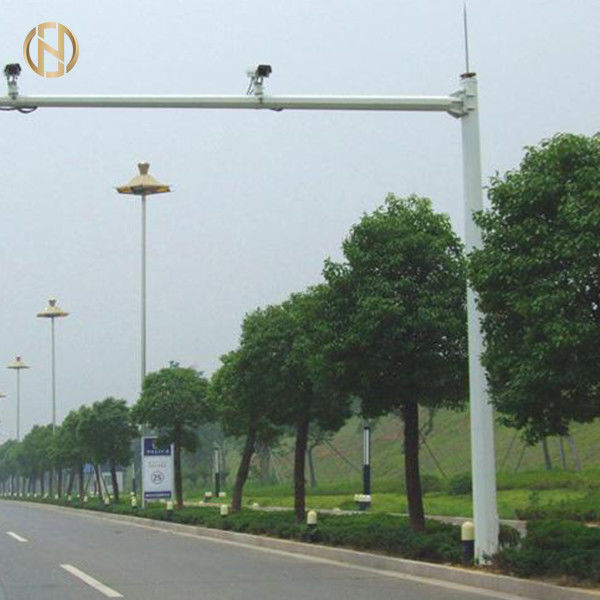

Straight Type Traffic Light Pole 6M 114mm X 3.5MM OD Pipe Wind Resistant

Straight Type Traffic Light Pole 6M 114mm X 3.5MM OD Pipe Wind Resistant

  • High Light

    traffic signal pole

    ,

    traffic light post

  • Surface Treatment
    Hot Dip Galvanized
  • Height
    Customized
  • Length Of Arm
    1m - 16m
  • Thinkness
    2.5mm - 20mm
  • Arm
    With Arm
  • Material
    Steel (Q235, Q345, A36, GR50), Stainless Steel
  • Galvanization
    85μm-100μm
  • Package
    Blanket Or Plastic Woven Bag
  • Origin
    Jiangsu China
  • Certificate
    ISO 9001
  • Customized
    Yes
  • Design Wind
    25M/s
  • Surface Color
    Silver,Grey,White,Green,Black
  • Products Name
    6M 114mmX3.5MM OD Pipe Straight Type Traffic Poles
  • Place of Origin
    Jiangsu China
  • Brand Name
    Futao
  • Certification
    ISO 9001
  • Model Number
    FT-CP032
  • Minimum Order Quantity
    1 Pieces
  • Price
    $80 - $1000
  • Packaging Details
    40HC or OT, wrap by mat or straw mat
  • Delivery Time
    30 - 60 workdays
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1200 pieces every month

Straight Type Traffic Light Pole 6M 114mm X 3.5MM OD Pipe Wind Resistant

6M 114mmX3.5MM OD Pipe Straight Type Traffic Poles

Product Description



l Model Number: FT-CP022

l Design Standard: AASHTO (American Association of State Highway Transportation Officials) Standard

l Sensor Type: CMOS

l Power Consumption: 20W,40W,60W or depending on clients.

l Pole Shaft Material: ASTM A572 GR65/Q345/Q235/GR50

l Brackets: Single or Double Brackets are available depending on security camera requirements

l Mounting Method: Base Plate mounting with anchor bolts/ Direct Burial

l Surface Treatment: Hot Dip Galvanization/ Powder Coating



Traffic signage is an important aspect of any traffic control system. A dependable and sturdy pole is required to support these traffic signs.
At Futao Metal, we produce various types of traffic signal poles including octagonal, cylindrical, and conical shaped poles.
Going one step further, our poles can be designed to have multiple mounting arms if required.
All traffic and signal poles shall consist of a single vertical pole, connecting flanges, mounting arms, and anchor bolts.
Straight or seamless steel pipes shall be used for the vertical pole and mounting arms.
The connection ends of the main pole and the mounting arm shall adopt the same material used by the mounting arms and will be protected by stiffeners.
The vertical pole and its base plate will be connected by a flange and anchor bolts.
 Horizontal mounting arms are connected to the main vertical pole using a flange and further reinforced using stiffeners

Specifical Details


Material ASTM GR65,GR50,Q460 A572,S355,Q345/Q235
Poles Deflection Accordance with the pole strength as Clients request.
Pole’s shape Conical, Polygonal, Round
CCTV Poles Type “T” Type,”L”Type,”I” Type
CCTV Pole Main Shaft Height Normally, the CCTV Poles Main Shaft Length at 6 Meters or 8 Meters.
CCTV Pole Cantilever Length Depending on width of Road in Clients Country.
Application Main Street,High Way Zones
Height 1-16M composed of two or three sections
Pole Shaft Thickness 2.5mm-20mm
Poles Stiffener Size Accordance with Flange size to decide
Overlap Length Calculation Upper Section of the bottom diameter more than 1.5 times
Surface treatment Hot Dip Galvanization, Electrostatic Spray
Components Signal Lights(Red/Green/Yellow Color),Camera etc.
Power Cabinet Power Cabinet installed at outdoor to control the Signal Lights Colors Exchanged.
Power Cable Length Using Power Cable Length using depending on the Poles height and Signal Lights/Camera Wattage/Quantity.
Galvanization Thickness 80-100 microns on average according to BS EN ISO1461 standards
How long Dipped into Zinc pool for the poles The time Dipped into Zinc pool depending on the poles Wall Thickness and the Galvanized thickness Execution Standard
Mounting Height 3-16M
Pole Shape Conical, Polygonal, Round
Brackets Single or Double Brackets of various sizes and shapes as per clients’ requirements
Welding Welding conforms to international welding standard of CWB
Base Plate Mounting A square or round Base Plate with slotted holes used in tandem with anchor bolts
Ground Mounting The bottom part of the pole shall be buried underground at site. Depth of burial as per clients’ requirements
Galvanization Hot Dip Galvanization with and average thickness of 80-100µm
Powder Coating Pure Polyester Powder Painting, coloring optional
Joint Type(Connection method) Slip joint by upper section insert into lower section
Flange connection to flange(outer flange/inner flange)
Minimum yield strength 355 Mpa
Minimum ultimate tensile strength 490 Mpa
Max ultimate tensile strength 620 Mpa
Length of per section Within 14m once forming without slip joint
Welding We has past flaw testing.Internal and external double welding makes the welding beautiful in shape
Welding Standard :AWS ( American Welding Society ) D 1.1
Welds slags removing Burrs or sharp edges shall be removed,all welds shall be cleaned mechanically against slag and spatters before hot dip galvanizing.



Process of Production


Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration → Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging

Straight Type Traffic Light Pole 6M 114mm X 3.5MM OD Pipe Wind Resistant 0
Product Details


Straight Type Traffic Light Pole 6M 114mm X 3.5MM OD Pipe Wind Resistant 1

Straight Type Traffic Light Pole 6M 114mm X 3.5MM OD Pipe Wind Resistant 2


Testing


   Straight Type Traffic Light Pole 6M 114mm X 3.5MM OD Pipe Wind Resistant 3
Packaging & Shipping


We pack the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation.

Packaging can also be done according to clients’ requirements.

We can ship the poles by sea or air or express or trains and we have our regular shipping agent.

FAQ



Trade terms:

1. Price Term: EXW,FOB,CFR,CIF,FCA or others.

The price includes pole shaft, base plate, cross arm and anchor part.
2. Payment: 30%T/T in advance,70%T/T or L/C at sight before shipment. Other payment way can be negotiated.
3. Package: Plastic woven bag or old blanket or according to clients requirement.
4. Delivery time: within 30-60 workdays after receiving deposit.


Q1. How can I get a price of needed pole?

A: 1. Please provide exact dimensions such as height, pole shaft material type and thickness, top and bottom diameters. We can then give you an accurate quotation based on your specifications.
2. You can send us a detail and assembly drawing; we can then provide you with an accurate quotation based on the drawing.

Q2. I am a small wholesaler; do you accept a small order?
A: It's not a problem if you are a small wholesaler; we could accept orders of various quantities.
Q3. I am a designer; Can you help me to produce the sample which we designed?
A: Our mission is to help our customers be successful. We are more than happy to help you solve any problems that you may have.
Q4: We want be your agent for our area. How do I apply for this?
A: Please send your proposal and your company profile.It will be better if we can know the estimated purchase quantity of every year.
Q5. Tell me about your company?
We have been a manufacturer and exporter of all kinds of steel poles including power poles, street lighting poles, telecommunications poles and other steel based products since 2000. Our products have been exported to many regions around the world.
Q6. Do you have some special policies for Branded companies?
A: Yes, we have some special support for the company who has own brand but are also in our VIP customers list. Please send us a copy of your sales data so we can analyze the best course of action in supporting you for your products in your market.
Q7. Do you provide Door to Door service? Because i don't know how to deal with customs clearance.
A: We provide Door to Door service to help you reduce shipping time and costs. This is because we have additional discounts with the shipping companies as we have done many shipments in the past. This in turn will save you lots of time and money.
