Electric Lifting High Mast Street Light Pole 25M 30M 35M Long Service Life

Electric Lifting High Mast Street Light Pole 25M 30M 35M Long Service Life

  • High Light

    high mast light pole

    ,

    flood light poles

  • Material
    Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65,
  • Shape
    Polygonal / Conical / Tubular
  • Surface Treatment
    Hot Dip Galvanized / Powder Coated / Painting
  • Connection Method
    Overlap/Flange Connection
  • Welding
    According To AWS D 1.1, CO2
  • Wall Thickness
    3-25mm
  • Each Section Length
    No More Than 14m
  • Place of Origin
    Jiangsu,China
  • Brand Name
    Futao
  • Certification
    ISO 9001 2015
  • Model Number
    FTGG
  • Minimum Order Quantity
    1
  • Price
    1000-10000USD Per set
  • Packaging Details
    Bubble Wrap, Mat &Straw Bale or as per client’s request
  • Delivery Time
    30days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    3000 ton per month

Electric Lifting High Mast Street Light Pole 25M 30M 35M Long Service Life

25M 30M 35M Electric Lifting High Mast Lighting Pole



Description of products

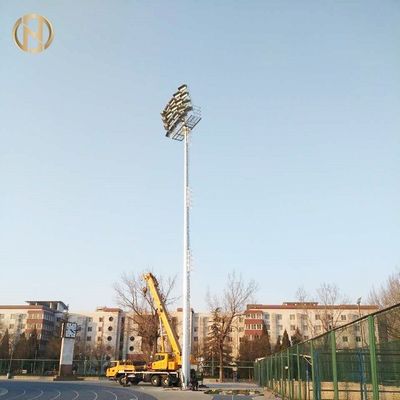

High Mast Lighting Poles can generally be divided into either a lifting type or non-lifting type. The height of the lifting type pole is normally more than 18 meters and allows for the raising and lowering of the lighting fixture. This allows for a safer and more convenient process of maintenance. The lighting fixture can be lowered up to 2.5 meters from the ground and the lowering process is controlled via a manual remote control. Our high mast poles are available in a wide variety of configurations and finishes to meet your specific design requirements. This includes the shape and lighting fixtures depending on lighting requirements of the surrounding area.

Product Specifications


l Product Name: 25M 30M 35M Electric Lifting High Mast Lighting Pole

l Light Source: High Pressure Sodium Lamp and LED flood light.

l Pole Height: 15 to 40 meters (designed and manufactured according to customer requirements).

l Lighting Type: Circular Light Plate / Irregular Light Plate, Wide-Angled Lights

l Pole Shape: Conical, Polygonal, Round

l Lifting System: Automatic/Manual Lifting System as per client’s requirement

  • Input Voltage(V): AC85-265,DC3.2V/12V/24V
  • Lamp Luminous Flux(lm): Customized
  • CRI (Ra>):75
  • Color Temperature(CCT): Cool White, Pure White, Warm White
  • Working Lifetime (Hours):50000
  • Lamp Body Material: Aluminum
  • IP Rating: IP65
  • Certification: CE
  • Application: Areas that require a large area of lighting (airports, shipping terminals, stadiums, heavy-industry zones)
  • Working Temperature(℃): -40 - 70
  • Light Source: Fluorescent, Halogen Bulbs, Incandescent Bulbs, LED
  • Warranty(Year): 2 years
  • Pole Shaft Thickness: 2.5mm-14mm
  • Surface Treatment: Hot Dip Galvanization, Electrostatic Spray
  • Galvanization Thickness: 80-100μm



Product name High Mast Lighting Pole
Material ASTM GR65,GR50,Q460 A572,S355,Q345/Q235
Pole’s shape Conical, Polygonal, Round
Application Areas that require a large area of lighting (airports, shipping terminals, stadiums, heavy-industry zones)
Height 15-40M composed of two or three sections
Pole Shaft Thickness 2.5mm-20mm
Surface treatment Hot Dip Galvanization, Electrostatic Spray
Components Lighting Fixture, Lamps, Pole, Electrical Components for Lifting System
Lamp Fixture Design According to lighting requirements of the surrounding area
Welding standard Advanced Submerged Arc Welding technology in accordance with BS EN15614 standards
Galvanization Thickness 80-100 microns on average according to BS EN ISO1461 standards



Electric Lifting High Mast Street Light Pole 25M 30M 35M Long Service Life 0



Process of Production


Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding →
Hole Drilling → Calibration → Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging
Electric Lifting High Mast Street Light Pole 25M 30M 35M Long Service Life 1
Product Details


Testing


Electric Lifting High Mast Street Light Pole 25M 30M 35M Long Service Life 2
Packaging & Shipping


We pack the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may
occur during transportation.
Packaging can also be done according to clients’ requirements.
We can ship the poles by sea or air or express or trains and we have our regular shipping agent.



Export Market


Asia-Pacific, Central & South America,North America, Europe, Middle East, Africa


FAQ


Trade terms:
1. Price Term: EXW,FOB,CFR,CIF,FCA or others.
The price includes pole shaft, base plate, cross arm and anchor part.
2. MOQ: 1 sets.
3. Payment: 30%T/T in advance,70%T/T or L/C at sight before shipment. Other payment way can be negotiated.
4. Package: Plastic woven bag or old blanket or according to clients requirement.
5. Delivery time: within 30-60 workdays after receiving deposit.




Our Service


Q1. Why choose us?
A: We offer high quality products at competitive prices. Furthermore, we allow for flexible payment terms.
Q2. How do you ship the goods and how long does it take to arrive?
A: We ship through the Shanghai port and it will take 2 weeks on average from the date of order.
Q3. How do I place an order for High Mast Lighting Pole?
A: Please provide specific details and requirements to us and we will proceed to give you an accurate price quotation.
Q4. Is it OK to print my logo on Led Light product?
A: Yes. Please inform us formally before our production begins and confirm the design first based on our sample.
Q5. How do I deal with faulty components?
A: Our products go through a rigorous quality control phase to prevent any defects or faulty components. However, during the guarantee period, we will send new lights for smaller quantities. For defective batch products, we will repair them and resend them to you or discuss an appropriate solution with you depending on the situation.



1. We will reply all your enquiries in 12 working hours.
2. Experienced staff members will answer all your questions in fluent English.
3. We have experienced and professional design team. UEM & UBM are welcome.
4. Exclusive and unique solutions can be provided to our customers by our well-trained and professional engineers and staff.
5. Special discount or comission and protection of sales are provided to our distributors.
6. State of the Art Factory with highly specialized machinery focused on producing various types of steel poles with over 20 years of experience and expertise to deliver you quality products that you can trust at competitive prices.
7. We have our own inspection team to control the quality.
