Steel Octagonal Light Pole 10M With Single Arm

Steel Octagonal Light Pole 10M With Single Arm

  • High Light

    galvanized light pole

    ,

    highway light pole

    ,

    Single Arm Octagonal Light Pole

  • Surface Treatment
    Hot Dip Galvanized Or Power Coating
  • Material
    Steel
  • Height
    10M
  • Thickness
    3-10mm
  • Shape
    Octagonal
  • Welding
    AWS D 1.1
  • Painting Color
    According To The RAL Color Number From Clients
  • Package
    Blanket Or Plastic Woven Bag
  • Certificate
    SGS And ISO
  • Place of Origin
    CHINA
  • Brand Name
    Futao
  • Certification
    FUTAO
  • Model Number
    10M-SA-01
  • Minimum Order Quantity
    2 sets
  • Price
    USD100-USD600
  • Packaging Details
    old blanket or plastic woven bag
  • Delivery Time
    30 - 60 workdays
  • Payment Terms
    L/C, T/T
  • Supply Ability
    6000 pcs every month

Steel Octagonal Light Pole 10M With Single Arm

Product Description

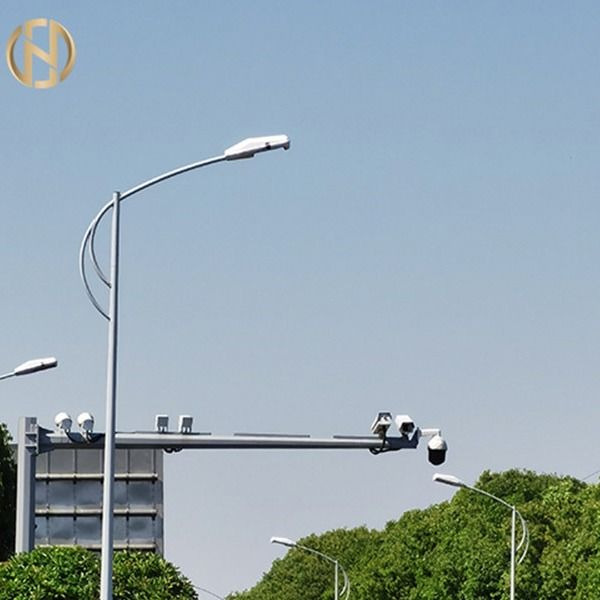

10M Street Light Pole Octagonal Shape Steel Lamp Post With Single Arm

  • Products are designed and manufactured according to the wind speed client provided
  • Products are hot dip galvanized according to ISO 1461/ASTM A123 or Bristish standards
  • Average galvanization thickness in bulk is about 85um.
  • Pole shaft material : Q235B or Q345B
  • Welding standard:AWS D 1.1
  • We possess the ISO 9001:2015 certification and are committed to giving our customers the best products and service
  • We provide additional assistance if required including supervision and supplementary components
  • We custom the poles according to our customers’ specifications



Product Specifications




Height 10M
Application Airport, Seaport, Plaza, Stadiums, Highway Street Lighting, etc.
Shape Octagonal or conical or others
Material Q345B/A572, Q235B/A36, Q460 ,ASTM573, GR65, GR50 ,SS400,SS490, ST52-
Lighting Wattage 20 W- 400 W (HPS/MH) OR LED, 220V (+-10%)/50Hz
Dimension Tolerances +- 2%
IP Rating IP 65
Protection Grading Grade One
Anti-Corrosion Grade Class Two
Working Conditions for Lighting Fixture -35 °C~+45 °C
Surface treatment Hot Dip Galvanized according to ASTM A123 standards or any other standards as per clients’ request
Earthquake Resiliency Against Earthquakes of Magnitude 8 or more
Maximum Wind Resistance Against Wind Velocity of 160 Km/Hour
Minimum Yield Strength 355 mpa
Minimum Tensile Strength 490 mpa
Maximum Tensile Strength 620 mpa
Standard ISO 9001
Length per section <14M per section
Welding Process Welding Standard :AWS ( American Welding Society ) D 1.1
Thickness 2 - 30 mm
Packaging Poles are covered by a mat or straw bale at the top and bottom portions. Other methods of packaging can also be used as per clients’ request





Price Quotation & Packaging & Shipping


As street lamps are non-standard products, there is no uniform price. Prices will be adjusted accordingly based on the height, pole shaft thickness

and material type, type of light source used. We are also able to manufacture all kinds of street lighting according to different specifications

provided by our clients. Please contact us for further enquiries.

We pack the top and bottom parts of the pole with an old blanket in order to protect it from damage to the galvanized surface that may occur

during transportation.

Packaging can also be done according to clients’ requirements,such as plastic bubbles or with wooden stick between each layer.



We have our regular shipping agent and respect the clients to choose their own agent.



Process of Production


Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration→ Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging

Steel Octagonal Light Pole 10M With Single Arm 0



FAQ



Trade terms:

1. Price Term: EXW, FOB, CFR or CIF.


The price includes pole shaft, base plate, cross arm and anchor part.

2. MOQ: 2 sets.

3. Payment: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.

4. Package: Plastic woven bag or old blanket or according to clients requirement.

5. Delivery time: within 30-60 workdays after receiving deposit.



Q1. How can I get a price of needed pole?

A: 1. Please provide exact dimensions such as height, pole shaft material type and thickness, top and bottom diameters. We can then give you an accurate quotation based on your specifications.

2. You can send us a detail and assembly drawing; we can then provide you with an accurate quotation based on the drawing.

Q2. I am a small wholesaler; do you accept a small order?
A: It's not a problem if you are a small wholesaler; we accept orders of various quantities.
Q3. I am a designer; Can you help me to produce the sample which we designed?
A: Our mission is to help our customers be successful. We are more than happy to help you solve any problems that you may have.
Q4: We want be your agent for our area. How do I apply for this?
A: Please send your proposal and your company profile.
Q5. Tell me about your company?
We have been a manufacturer and exporter of all kinds of steel poles including power poles, street lighting poles, telecommunications poles and other steel based products since 2000. Our products have been exported to many regions around the world.
Q6. Do you have some special policies for Branded companies?
A: Yes, we have some special support for the company who has own brand but are also in our VIP customers list. Please send us a copy of your sales data so we can analyze the best course of action in supporting you for your products in your market.
Q7. Do you provide Door to Door service? Because i don't know how to deal with customs clearance.
A: We provide Door to Door service to help you reduce shipping time and costs. This is because we have additional discounts with the shipping companies as we have done many shipments in the past. This in turn will save you lots of time and money.



Our Service


1. Reply your inquiry in 12 working hours.
2. Experienced staffs answer all your questions in fluent English quickly.
3. We have professional engineers to design the poles for clients.UEM&UBM are welcomed.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory: We are manufacturer, specializing in producing all kinds of steel poles for more than 20 years, competitive with good quantity.
7. Sample time: about 10 workdays after receiving the sample fees.

8.We can ship the poles by sea,air,express or train.
