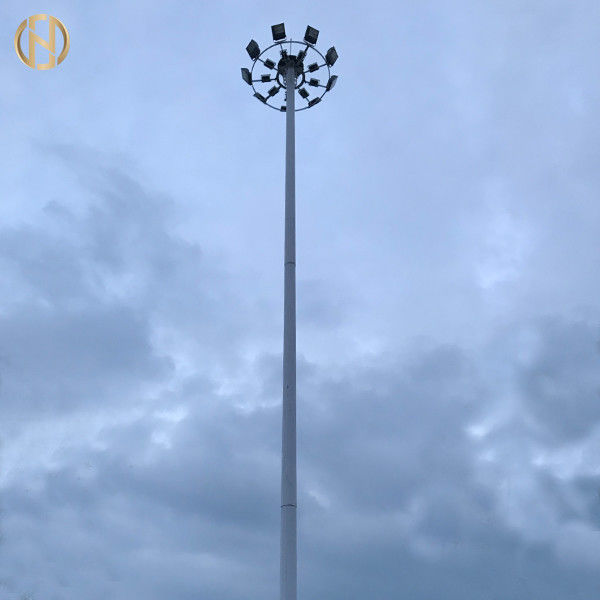

Dodecagon Shape High Mast Lighting Pole Height 15M - 40M For Airport

Dodecagon Shape High Mast Lighting Pole Height 15M - 40M For Airport

  • High Light

    high mast tower

    ,

    flood light poles

    ,

    Decagon Shape High Mast Pole

  • Height
    15m - 40m
  • Thickness
    2,5mm - 15mm
  • Material
    ASTM GR65, GR50, Q460, A572, S355, Q345, Q235
  • Shape
    Conical, Polygonal, Round
  • Lighting Source
    High Pressure Sodium Lamp And LED Flood Light
  • Lighting Type
    Circular Light Plate/ Irregular Light Plate, Wide-Angled Light
  • Lamp Luminous Flux (1m)
    Customized
  • Lamp Body Material
    Aluminum
  • Input Voltage (V)
    AC85-265, DC3.2V / 12V / 24V
  • Place of Origin
    CHINA
  • Brand Name
    FUTAO
  • Certification
    ISO9001
  • Minimum Order Quantity
    2 pieces
  • Price
    $100 - $1500
  • Packaging Details
    40HC or OT, wrap by mat or straw mat
  • Delivery Time
    30 - 60 workdays
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1200 pieces every month

Dodecagon Shape High Mast Lighting Pole Height 15M - 40M For Airport

15M - 40M Dodecagon Shape High Mast Lighting Pole Used for Airport



Product Information


High Mast Lighting Poles can generally be divided into either a lifting type or non-lifting type. The height of the lifting type pole is normally more than 18 meters and allows for the raising and lowering of the lighting fixture. This allows for a safer and more convenient process of maintenance. The lighting fixture can be lowered up to 2.5 meters from the ground and the lowering process is controlled via a manual remote control. Our high mast poles are available in a wide variety of configurations and finishes to meet your specific design requirements. This includes the shape and lighting fixtures depending on lighting requirements of the surrounding area.



Specifical Details


Product Name

High Mast Lighting Pole

Height

15m - 40m

Pole Shaft Thickness

2.5mm - 15mm

Shape

Conical, Polygonal, Round

Material

ASTM GR65, GR50, Q460, A572, S355, Q345, Q235

Surface Treatment

Hop dip galvanization, Electrostatic Spray / Galvanization thickness 80 -100 μm

Light Source

Fluorescent, Halogen Bulbs, Incandescent Bulbs, LED

Lighting Type

Circular Lighting Plate / Irregular Light Plate, Wide-angled Lights

Lamp Luminous Flux (1m)

Customized

Lamp Body Material

Aluminum

Input Voltage (V)

AC85-265, DC3,2V /12V / 24V

Lifting System

Automatic / Manual Lifting System (according to Clients' requirement)

CRI (Ra>)

75

Color

According to clients' request

Working Lifetime

50000 hours

IP Rating

IP65

Application

Areas that require a large area of lighting (airport, Shipping terminals, stadiums, heavy-industry zones, outdoor parking)

Certification

CE

Working Temperature

-40℃ to 70℃

Warranty

2 years

Dodecagon Shape High Mast Lighting Pole Height 15M - 40M For Airport 0

Production Process


Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling→ Calibration → Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging

Dodecagon Shape High Mast Lighting Pole Height 15M - 40M For Airport 1

Dodecagon Shape High Mast Lighting Pole Height 15M - 40M For Airport 2



Packaging & Shipping


We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.



FAQ


Q1. Why choose us?

A: We offer high quality products at competitive prices. Furthermore, we allow for flexible payment terms.



Q2. How do you ship the goods and how long does it take to arrive?

A: We ship through the Shanghai port and it will take 2 weeks on average from the date of order.



Q3. How do I place an order for High Mast Lighting Pole?

A: Please provide specific details and requirements to us and we will proceed to give you an accurate price quotation.



Q4. Is it OK to print my logo on Led Light product?

A: Yes. Please inform us formally before our production begins and confirm the design first based on our sample.



Q5. How do I deal with faulty components?

A: Our products go through a rigorous quality control phase to prevent any defects or faulty components. However, during the guarantee period, we will send new lights for smaller quantities. For defective batch products, we will repair them and resend them to you or discuss an appropriate solution with you depending on the situation.
